System Diagram




Component Connector End Views

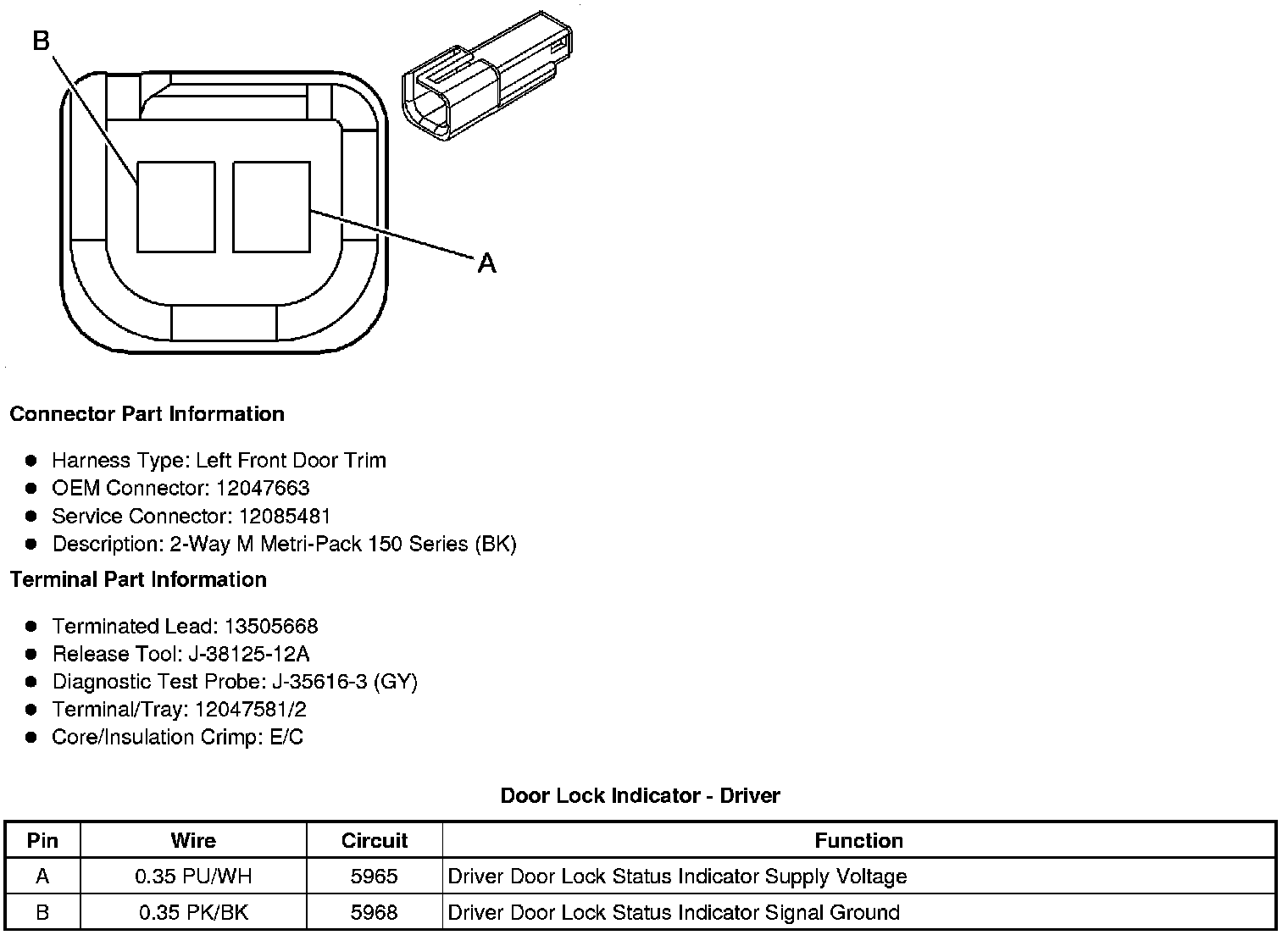

Door Lock Indicator - Driver

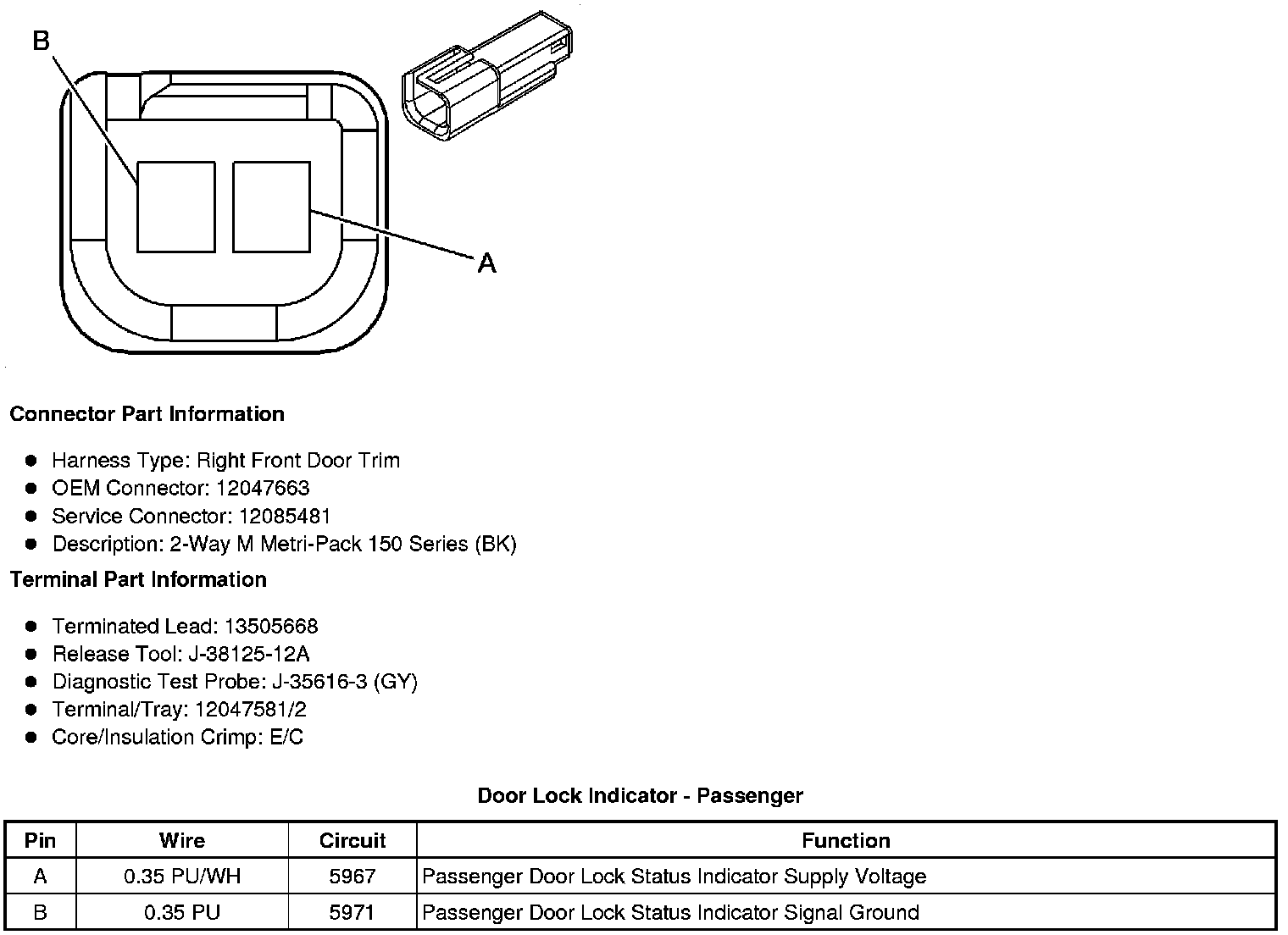

Door Lock Indicator - Passenger
