Right Rear Door Components

Door Component Views

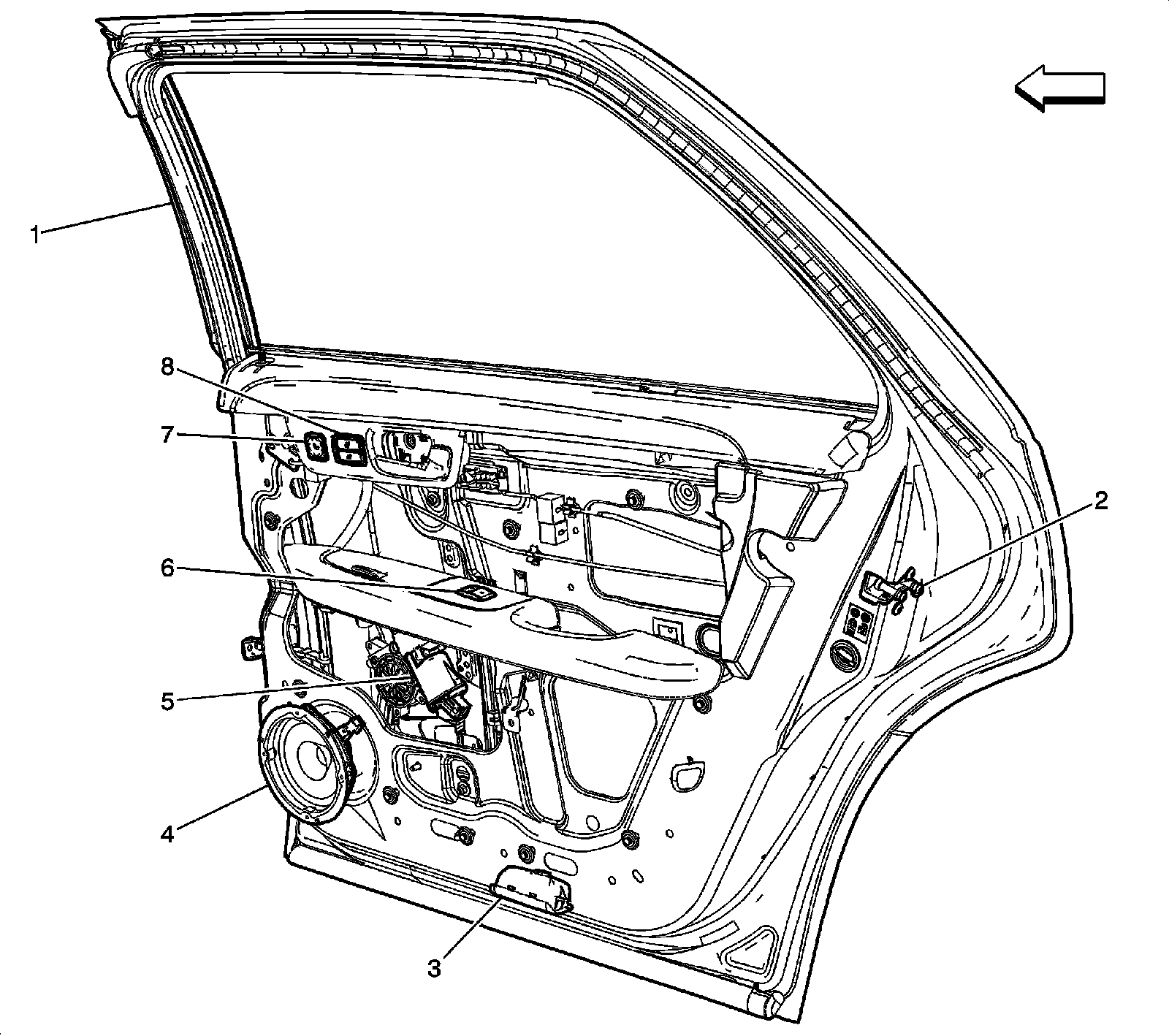

Right Rear Door Components




1 - Door Frame
2 - Door Latch Assembly - Right Rear
3 - Courtesy Lamp - Right Rear Door
4 - Speaker - Right Rear Door
5 - Window Motor - Right Rear
6 - Window Switch - Right Rear
7 - Seat Lumbar Switch - Right Rear (ARC)
8 - Heated Seat Switch - Right Rear (KB6)
