Starter and Generator Harness




Powertrain Component Views

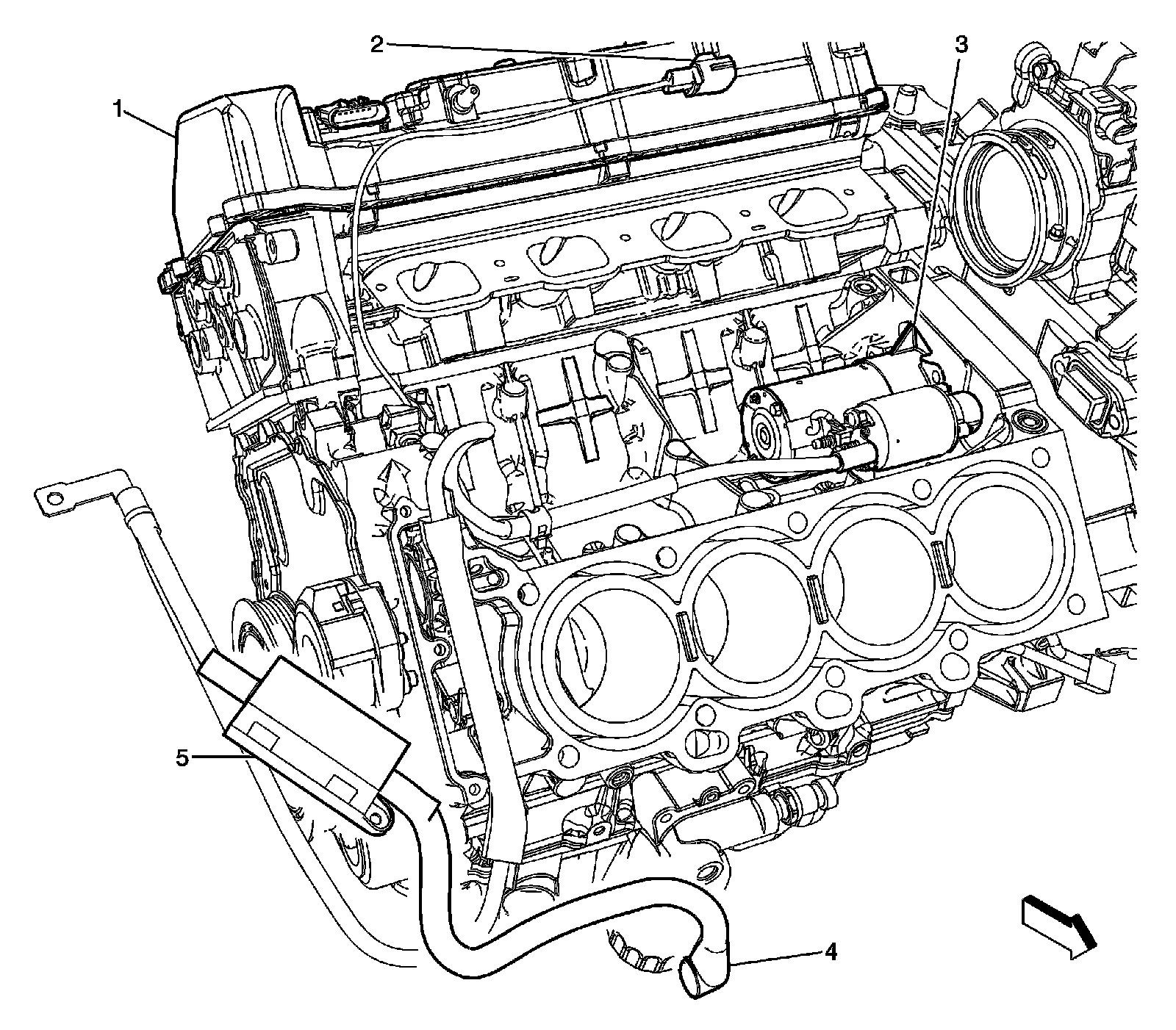

Starter and Generator Harness




1 - Valve Cover
2 - X161
3 - Starter Motor
4 - Generator Terminal
5 - Generator Inline Fuse (V4U)
