Turn Signal Lamp




Component Connector End Views

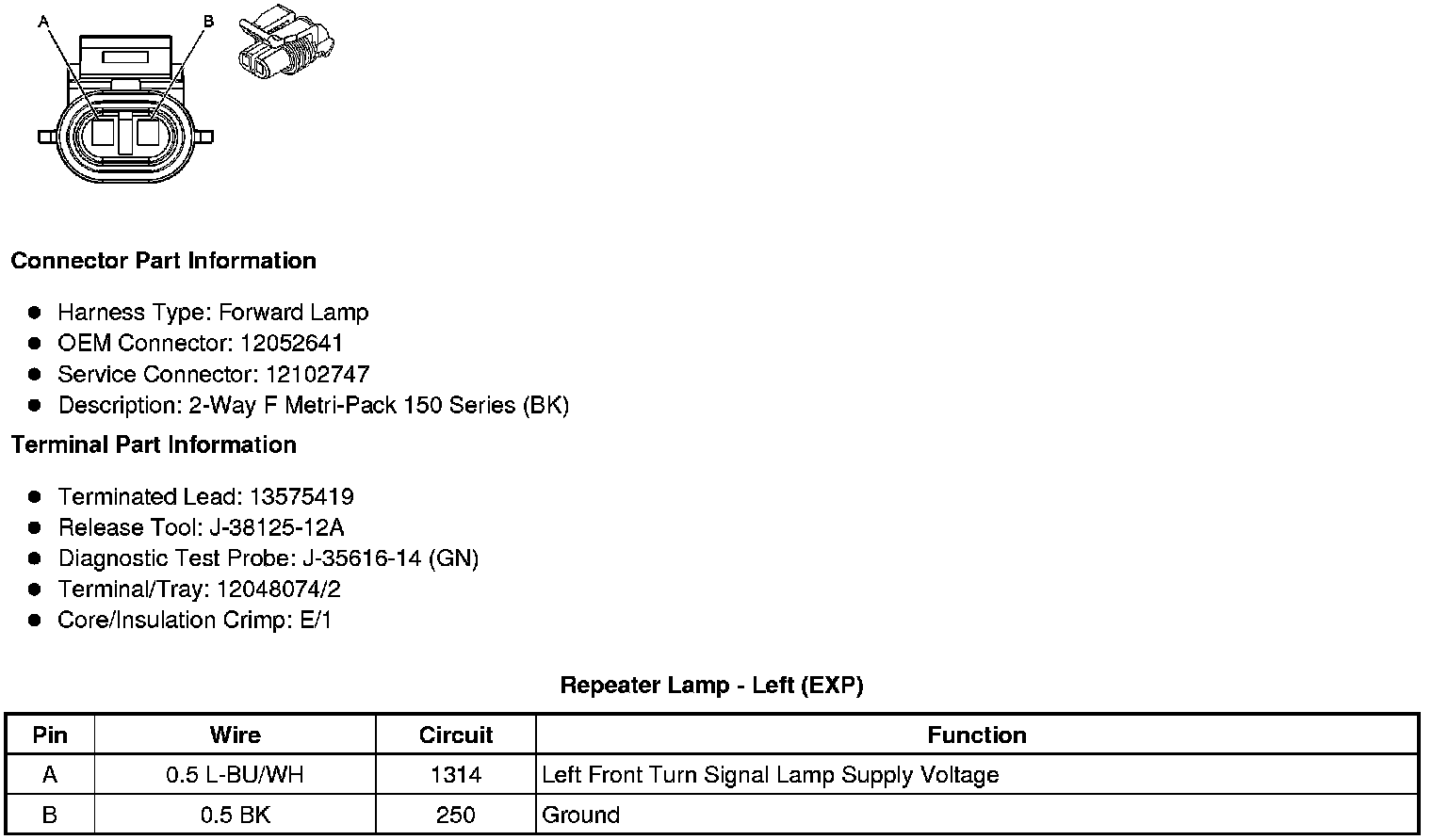

Repeater Lamp - Left (EXP)

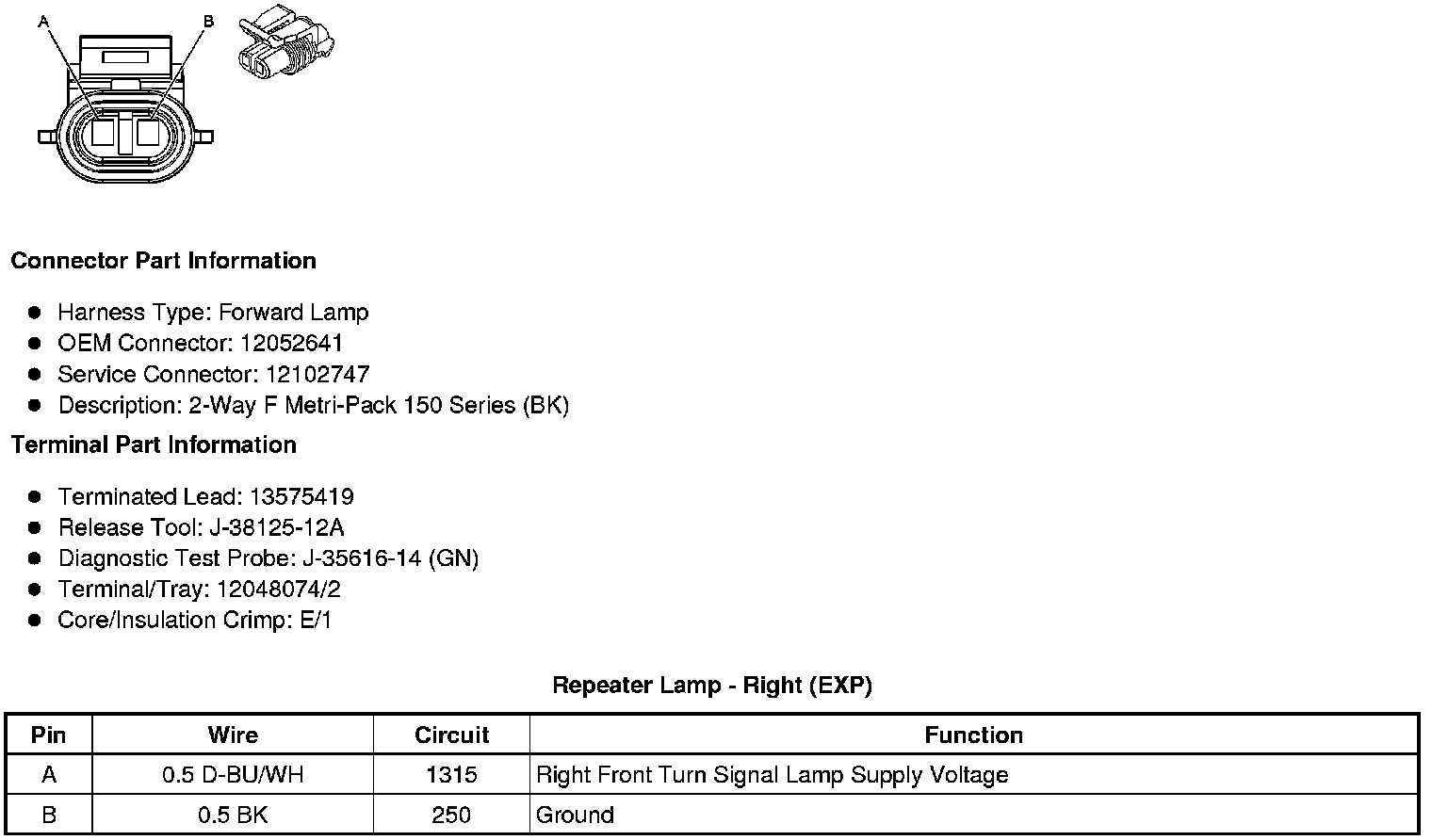

Repeater Lamp - Right (EXP)






Turn Signal/DRL Lamp - Left Front

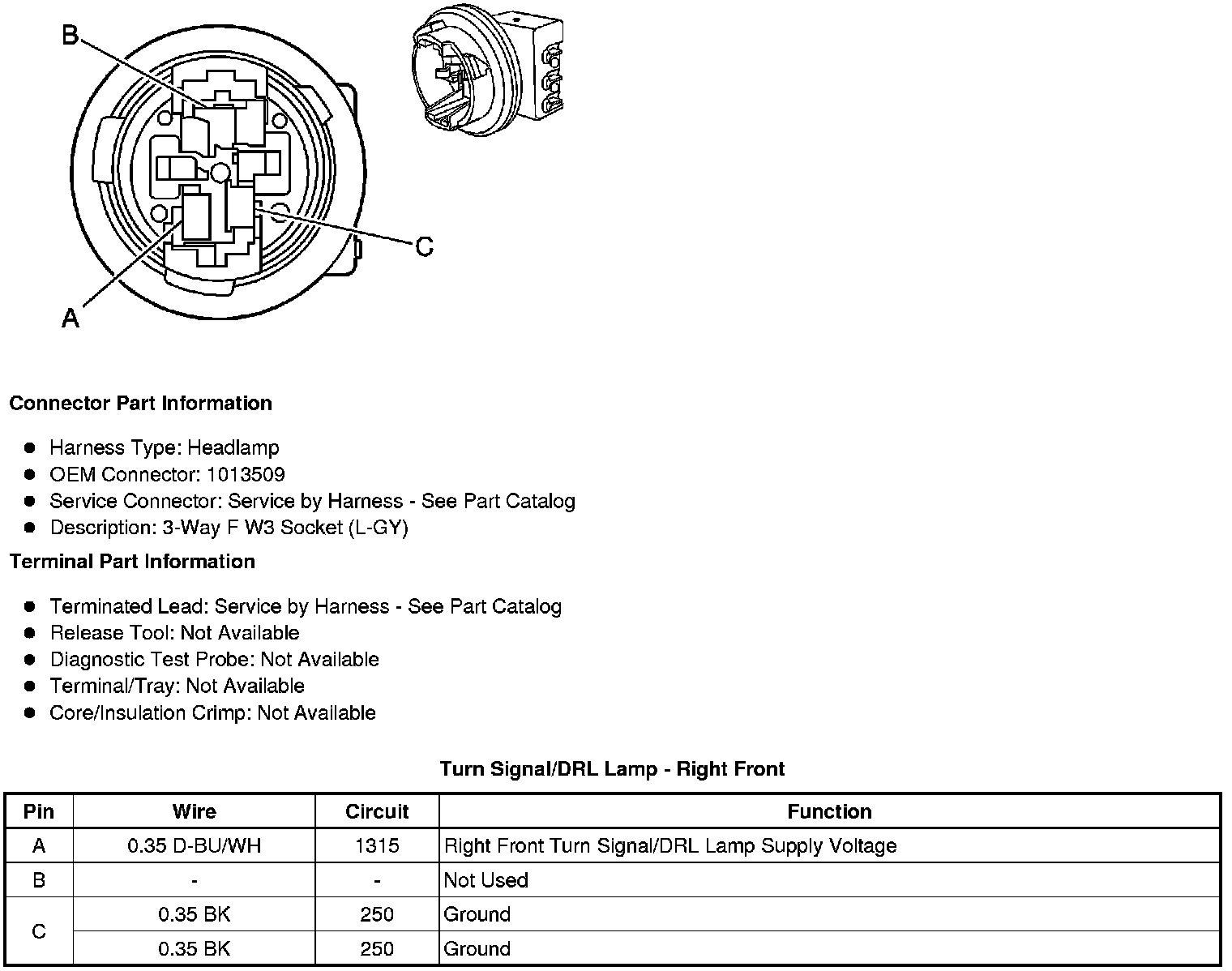

Turn Signal/DRL Lamp - Right Front
