Home >> Cadillac >> 2011 >> DTS V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Transmission Temperature Sensor/Switch, A/T

Transmission Temperature Sensor/Switch, A/T

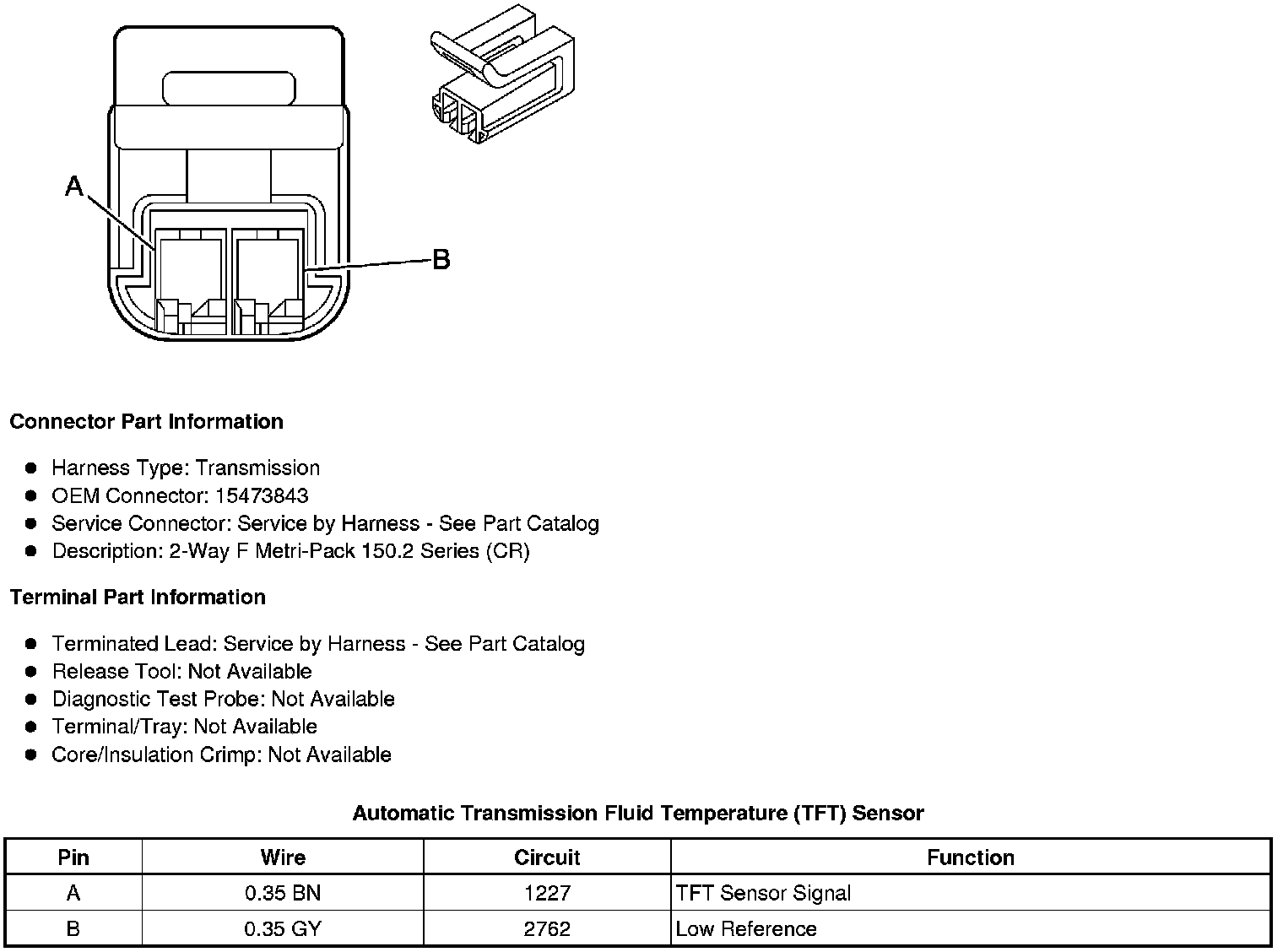

Component Connector End Views

Automatic Transmission Fluid Temperature (TFT) Sensor





Transmission Fluid Temperature (TFT) Sensor
