Cadillac
>>
2011
>>
DTS V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Television / Monitor
Television / Monitor

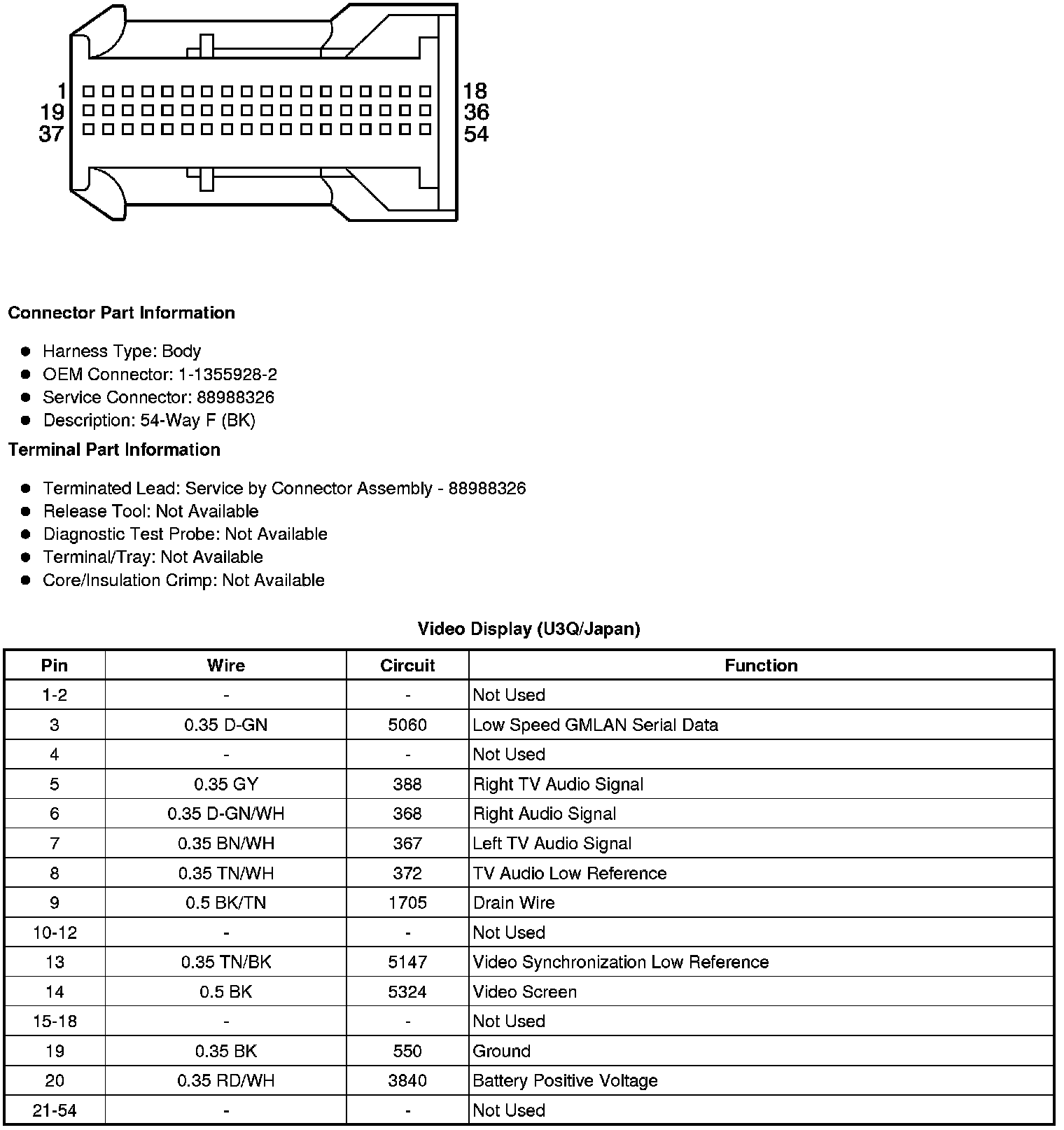

Component Connector End Views
Video Display (U3Q/Japan)
