Home >> Cadillac >> 2011 >> DTS V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Sun Shade

Sun Shade




Component Connector End Views

Sunshade - Left Front






Sunshade - Left Rear (DC5)






Sunshade - Right Front

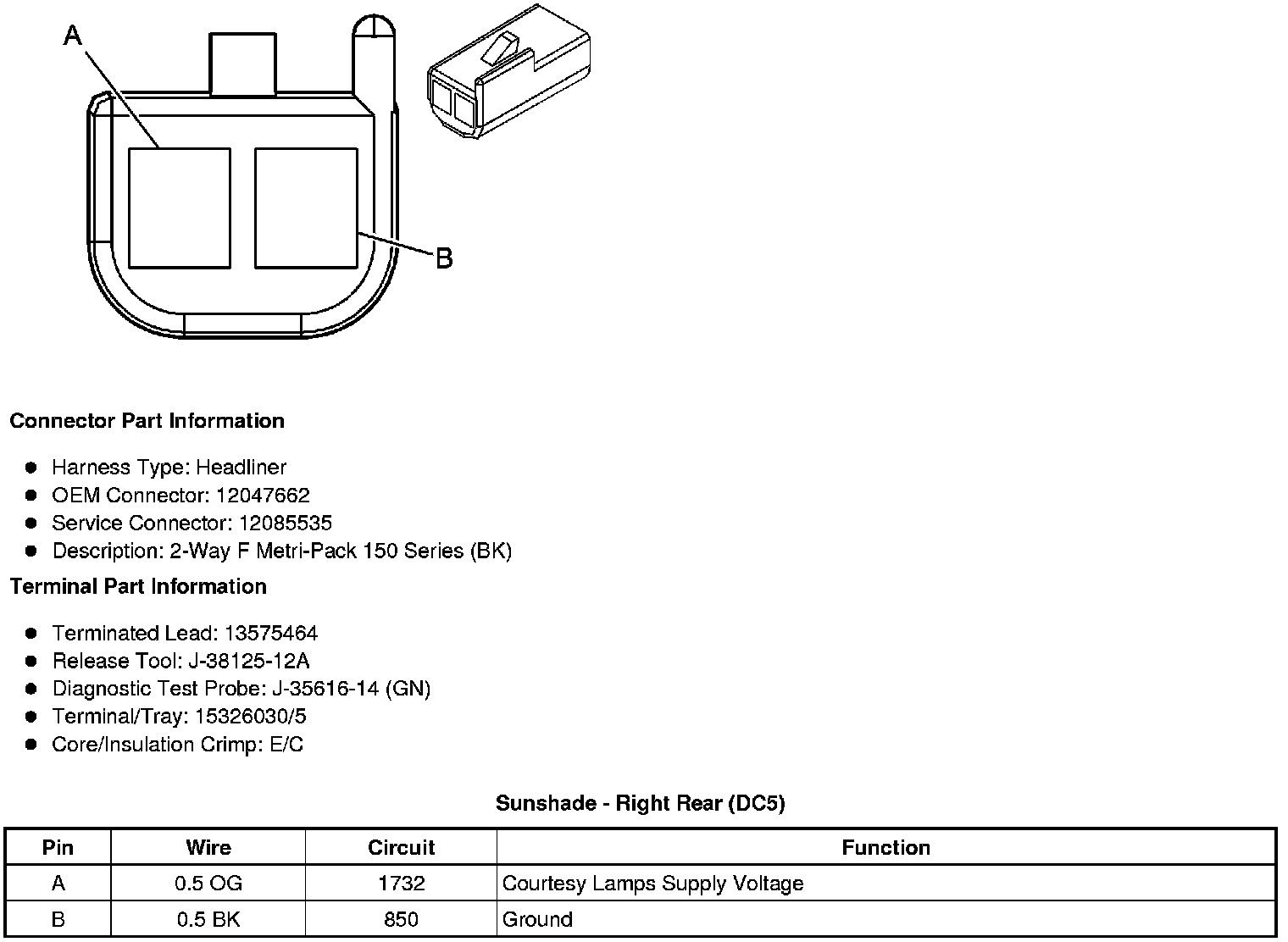

Sunshade - Right Rear (DC5)
