Seat Temperature Switch
Seat Temperature Switch
Component Connector End Views

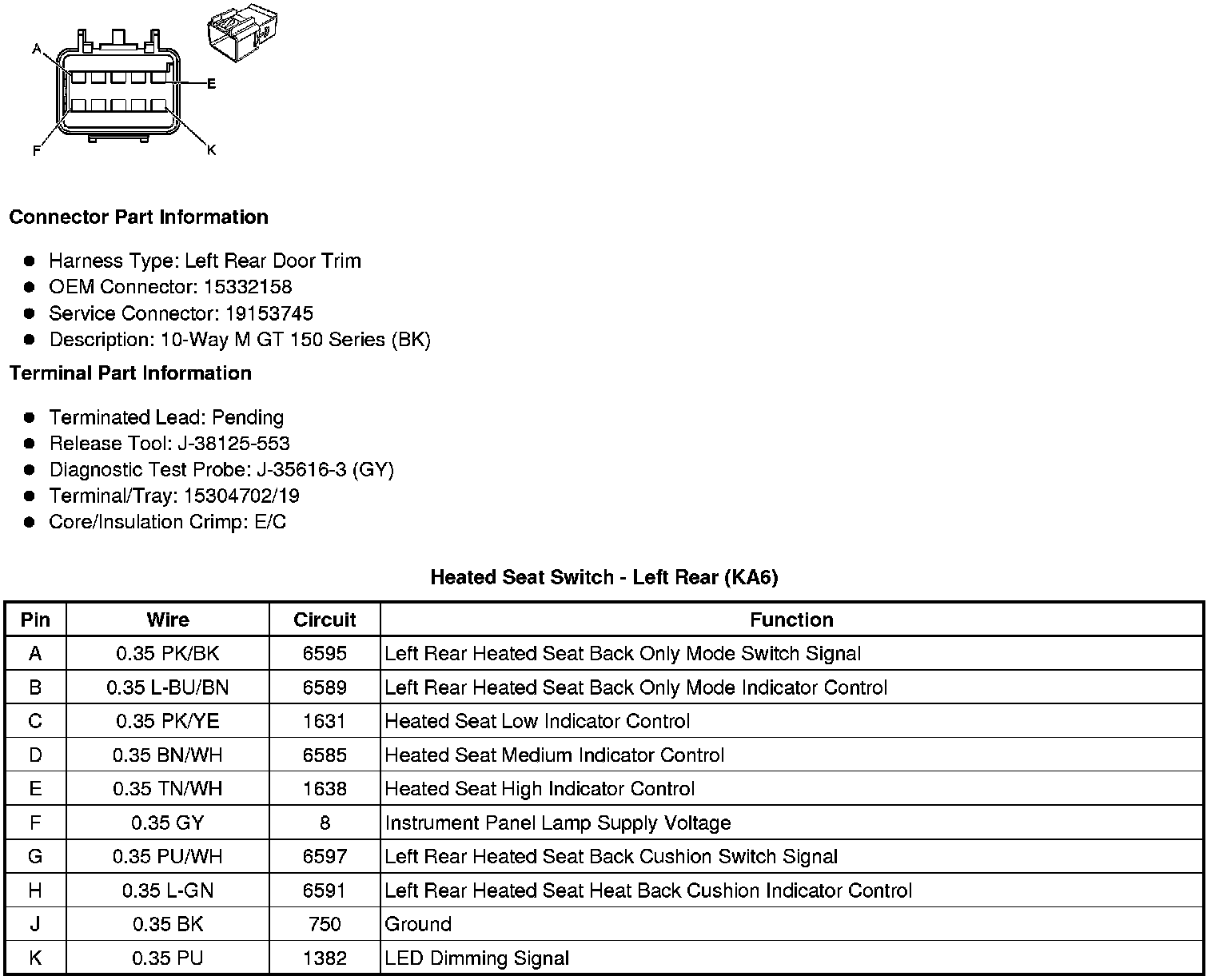

Heated Seat Switch - Left Rear (KA6)
Heated Seat Switch - Right Rear (KA6)
