Power Window Motor




Component Connector End Views

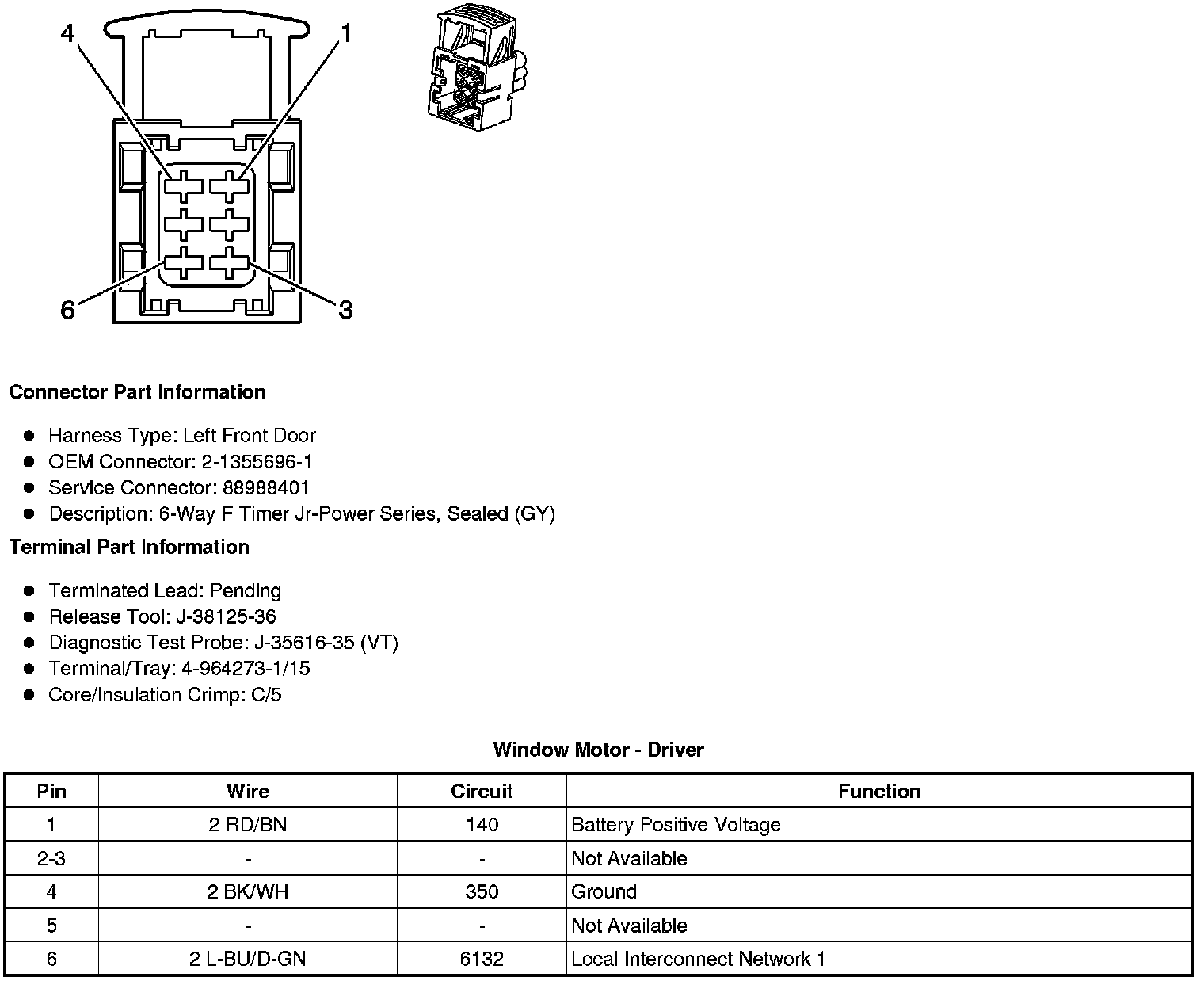

Window Motor - Driver

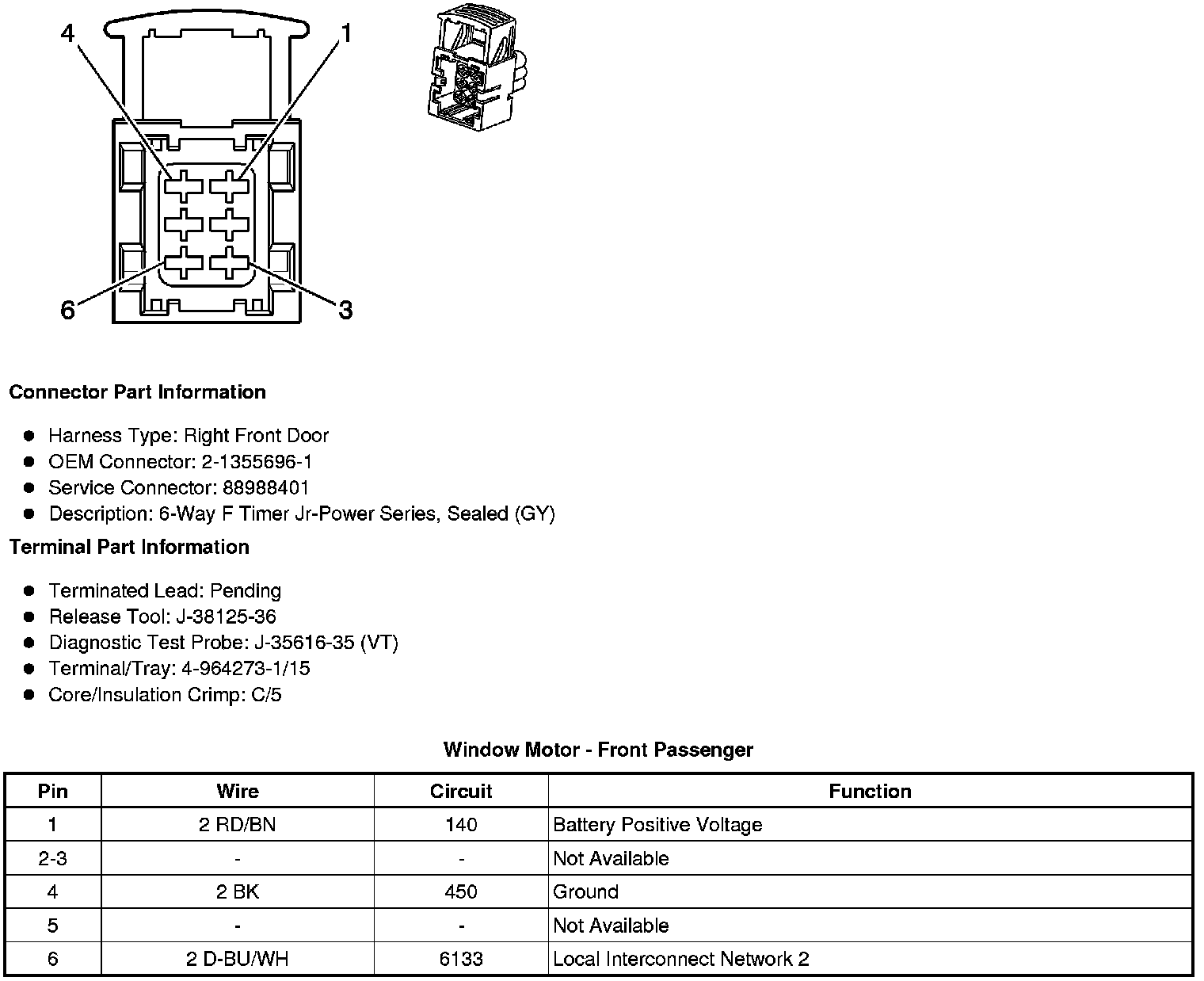

Window Motor - Front Passenger

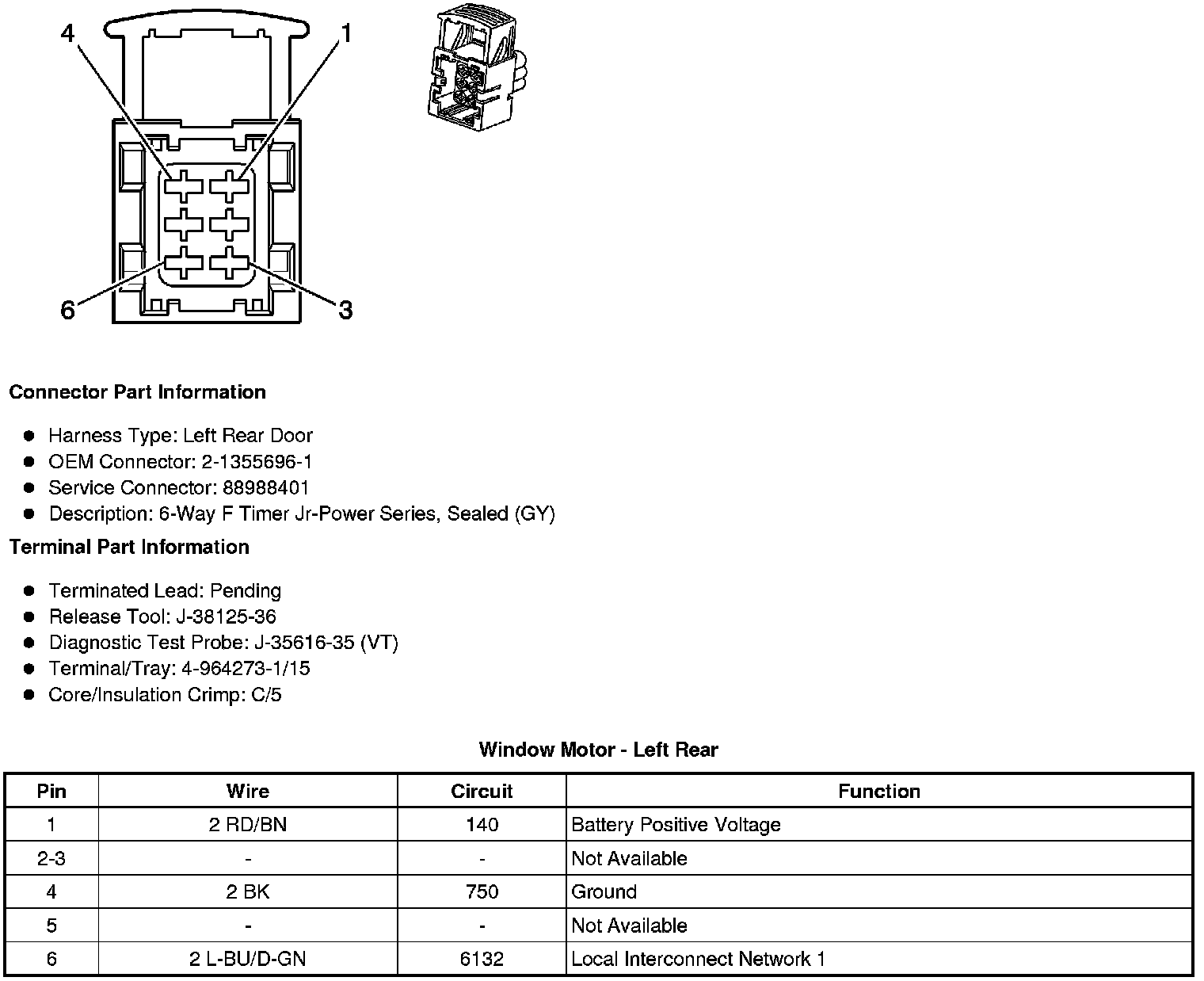

Window Motor - Left Rear

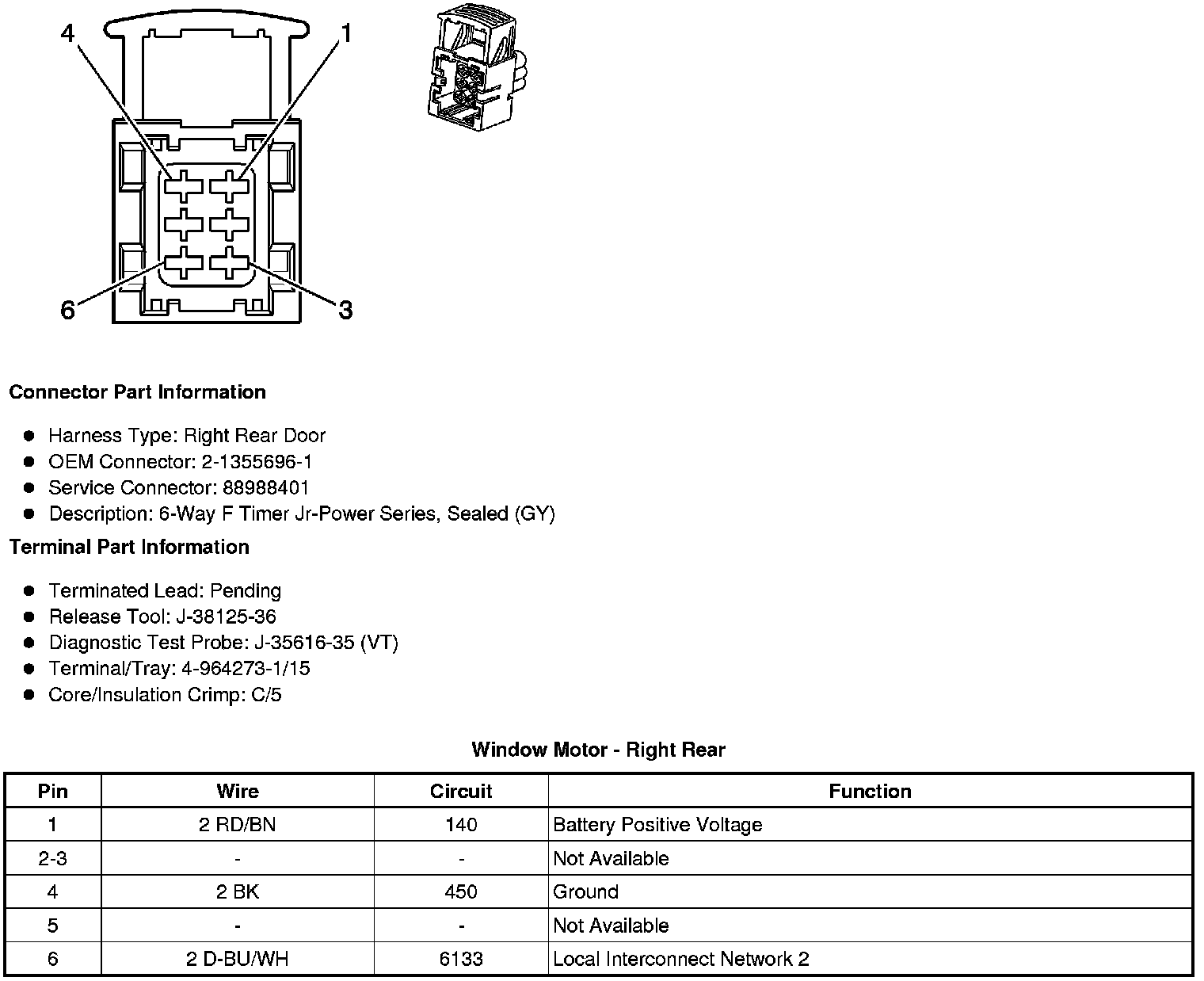

Window Motor - Right Rear
