Courtesy Lamp Module (C97)
Courtesy Lamp Module (C97)
Component Connector End Views

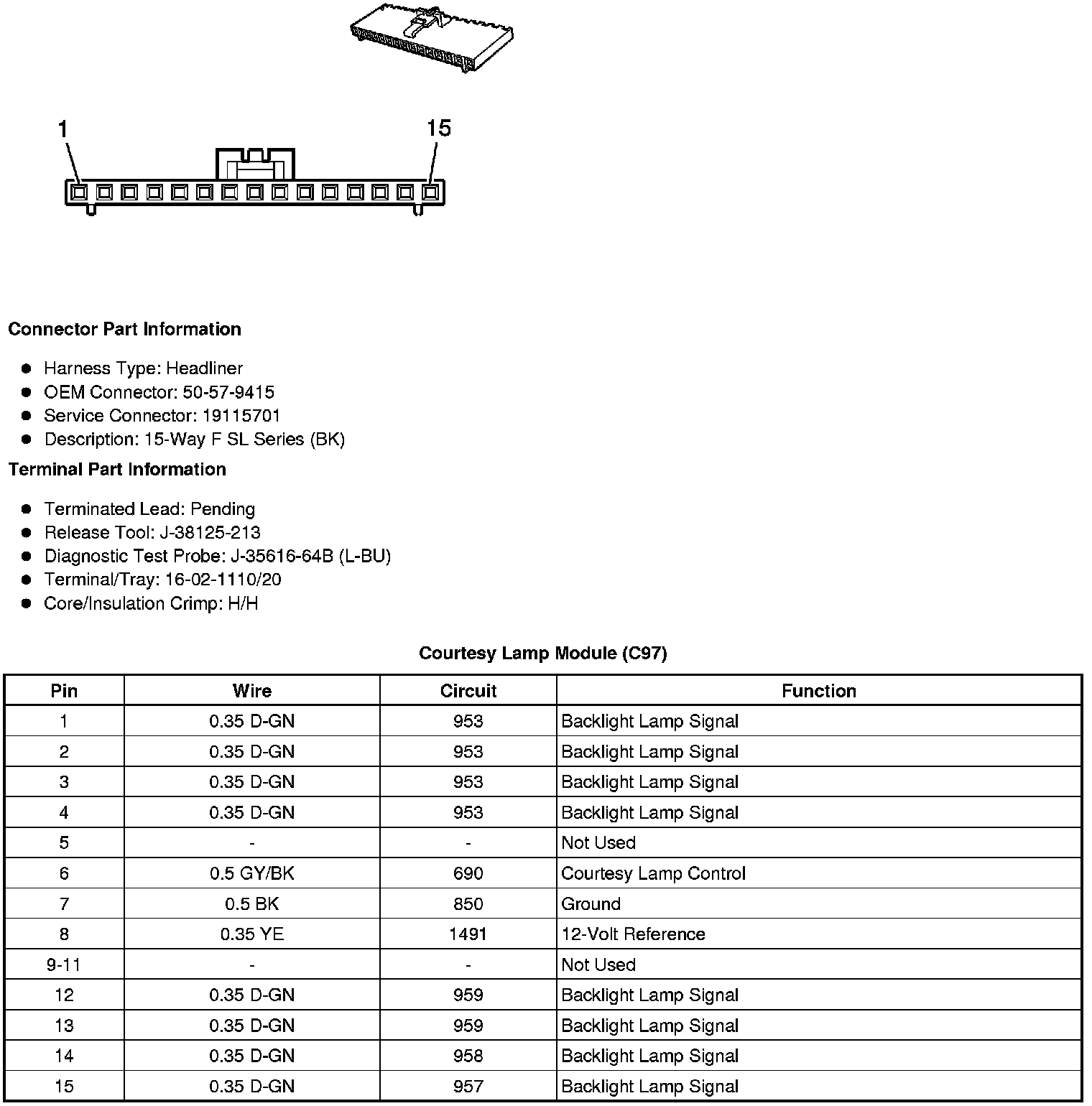

Courtesy Lamp Module (C97)
