Automatic Level Control Module (FE1)
Automatic Level Control Module (FE1)

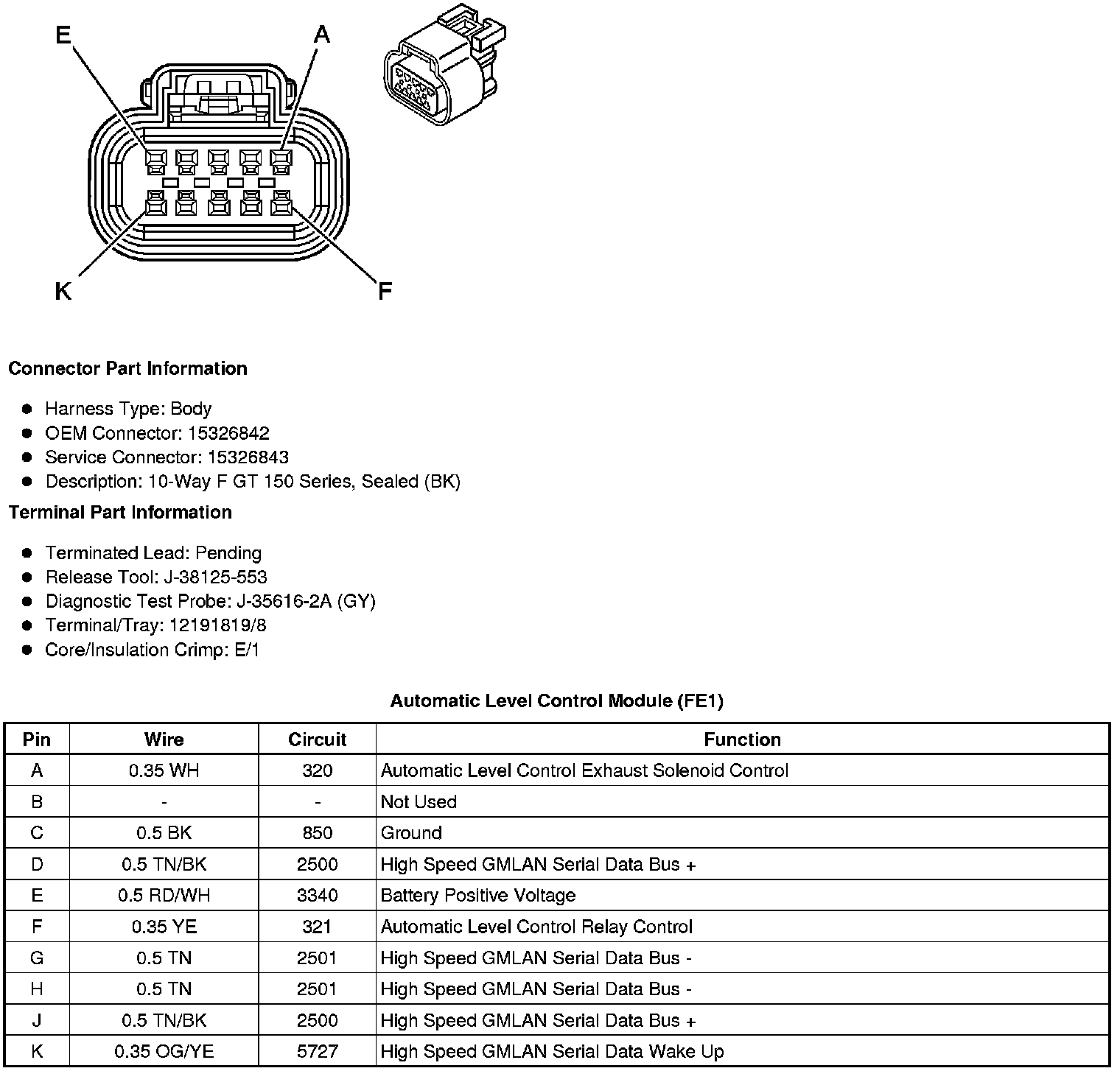

Component Connector End Views
Automatic Level Control Module (FE1)
