Distance Sensor: Diagrams

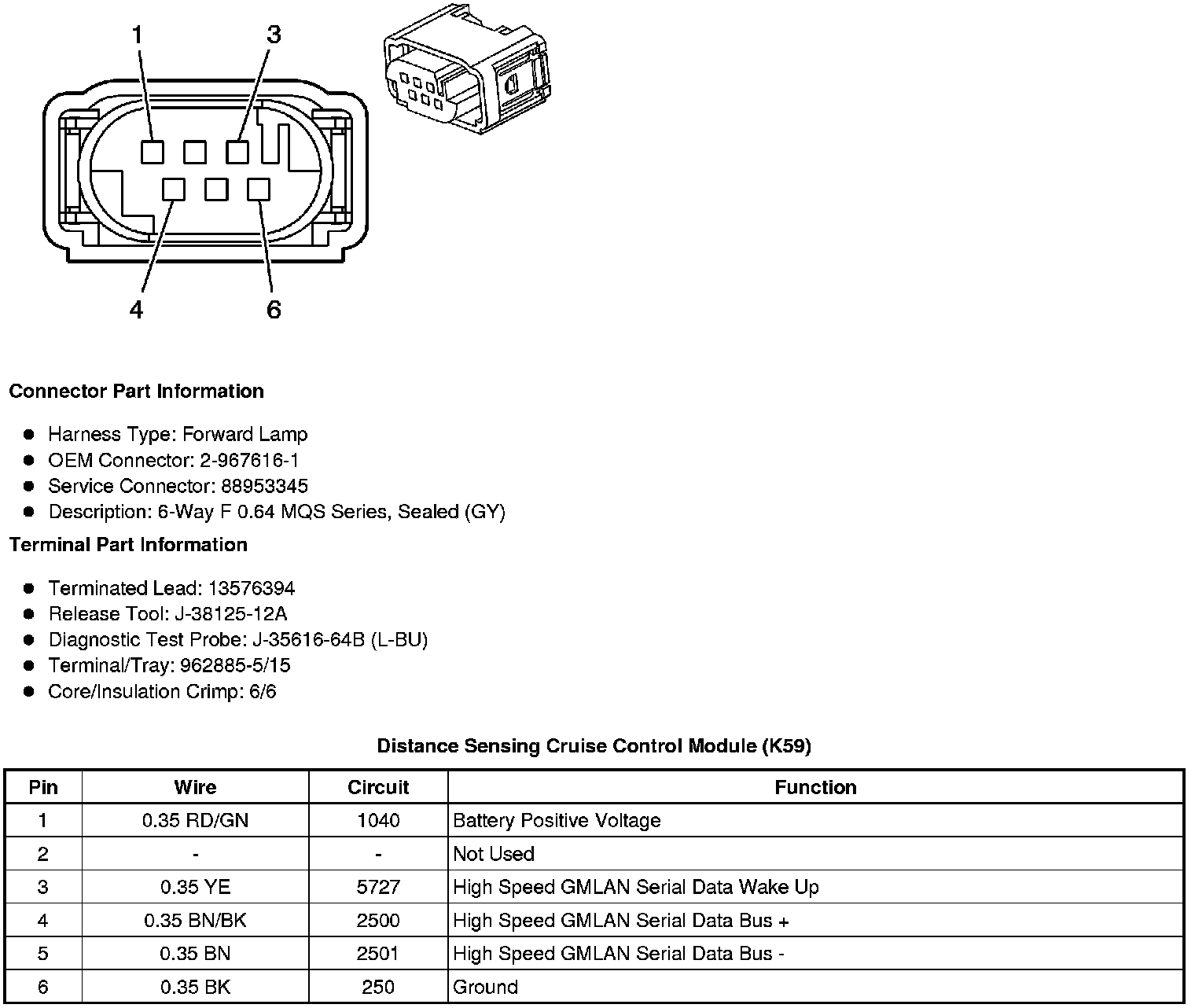

Component Connector End Views

Distance Sensing Cruise Control Module (K59)
