Cadillac
>>
2011
>>
CTS Sedan AWD V6-3.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Trunk / Liftgate Control Module
>>
Liftgate Module (LGM) X3

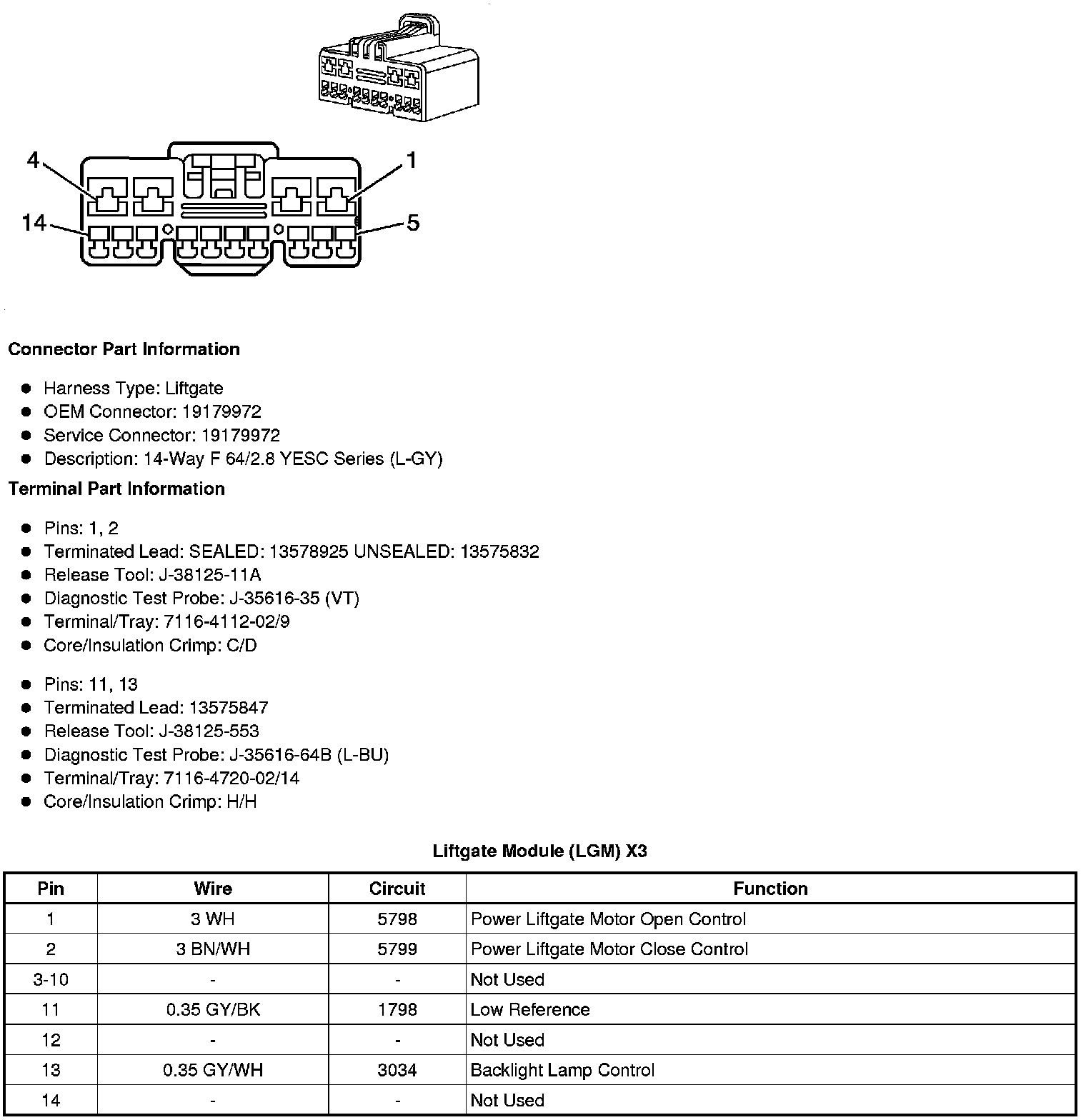

Liftgate Module (LGM) X3
Component Connector End Views
Liftgate Module (LGM) X3
