Electronic Brake Control Module
>>

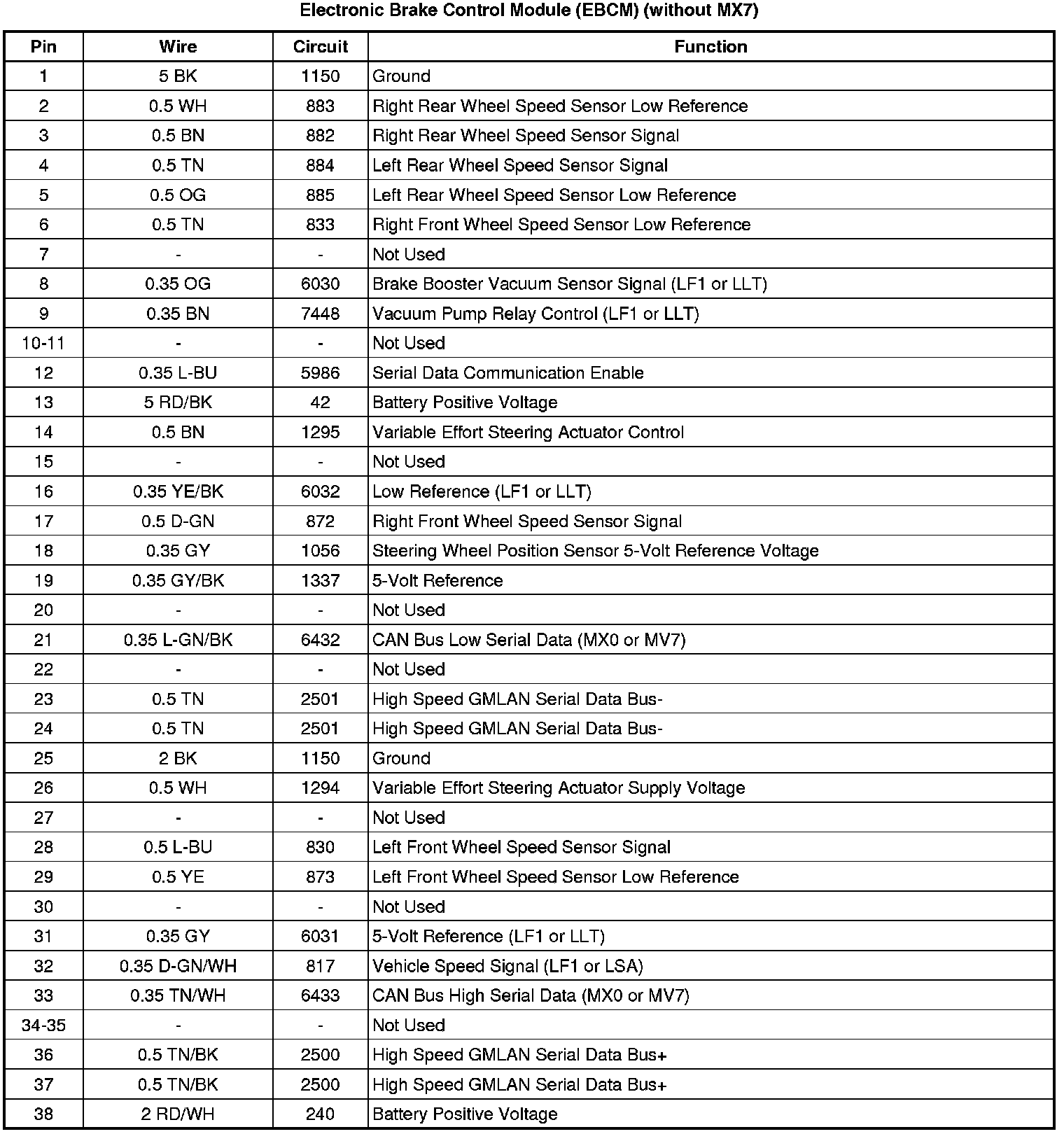

Electronic Brake Control Module (EBCM) (without MX7)
Electronic Brake Control Module (EBCM) (without MX7)

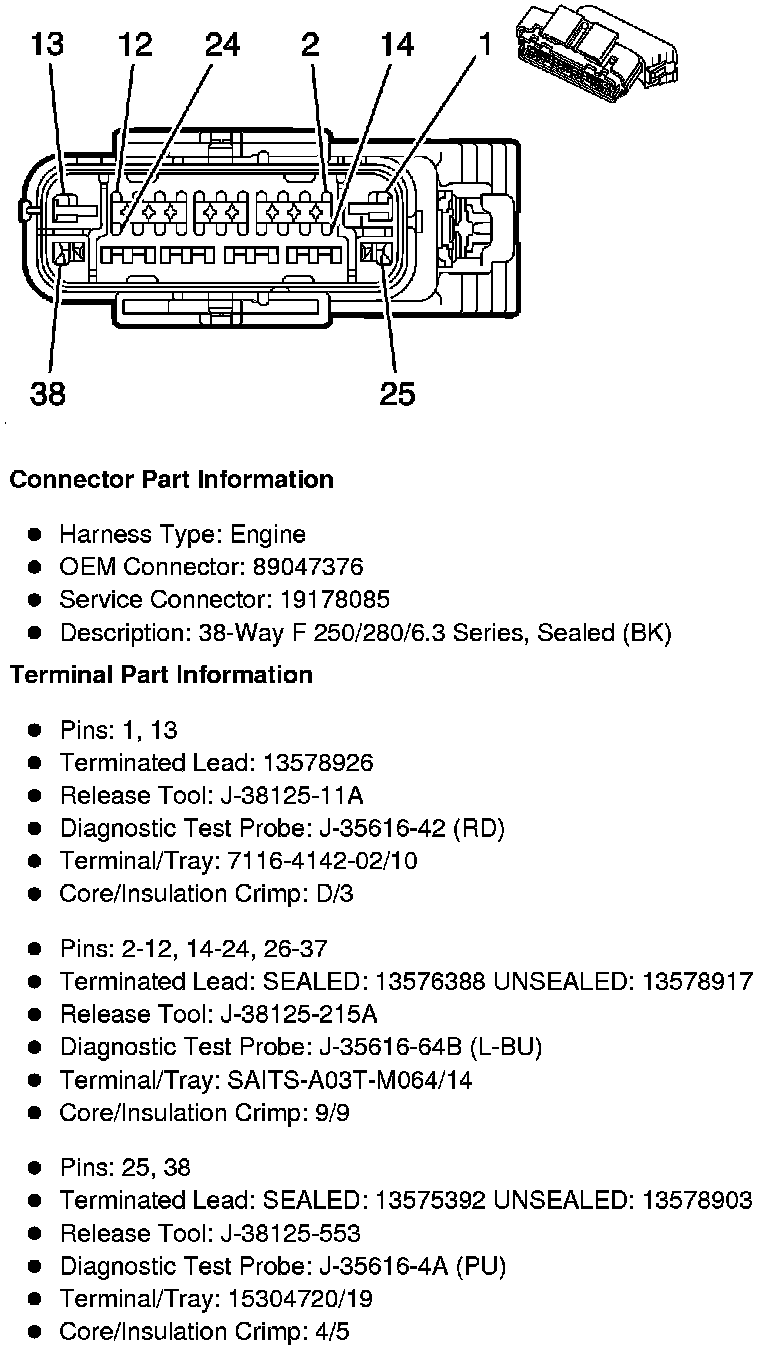

Component Connector End Views
Electronic Brake Control Module
(EBCM) (without MX7)
