Body Control Module (BCM) X2
Body Control Module (BCM) X2

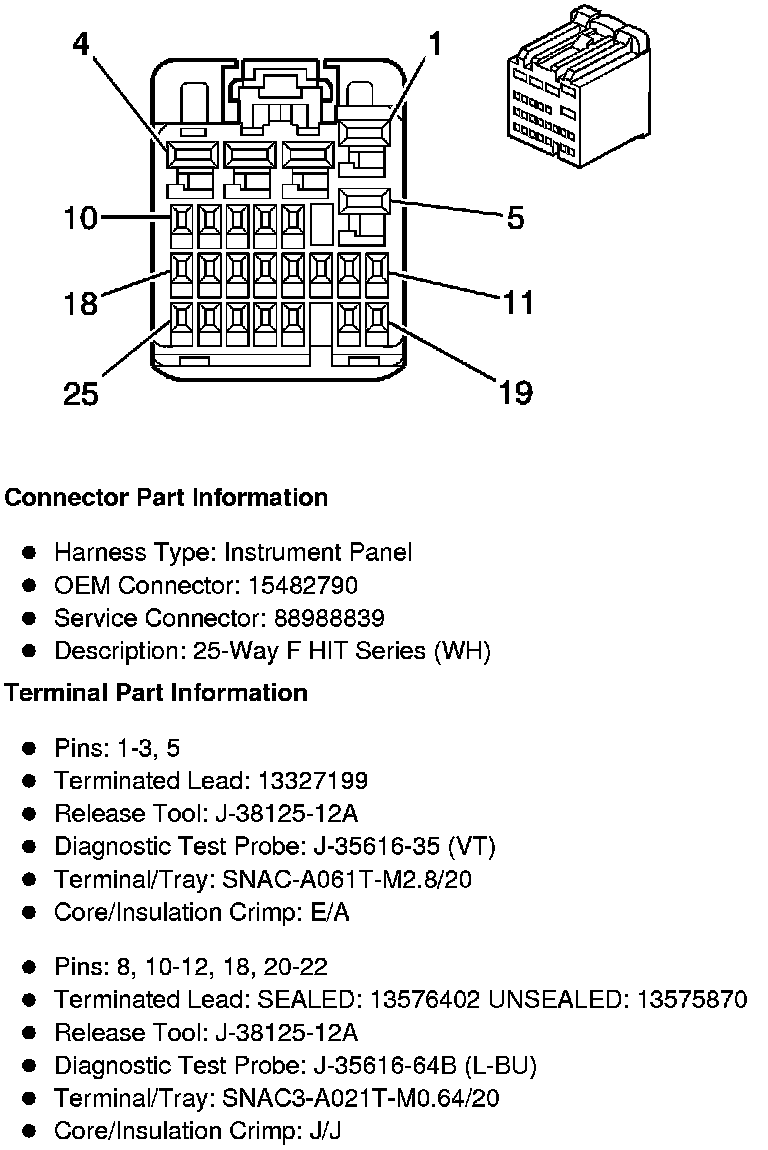

Component Connector End Views

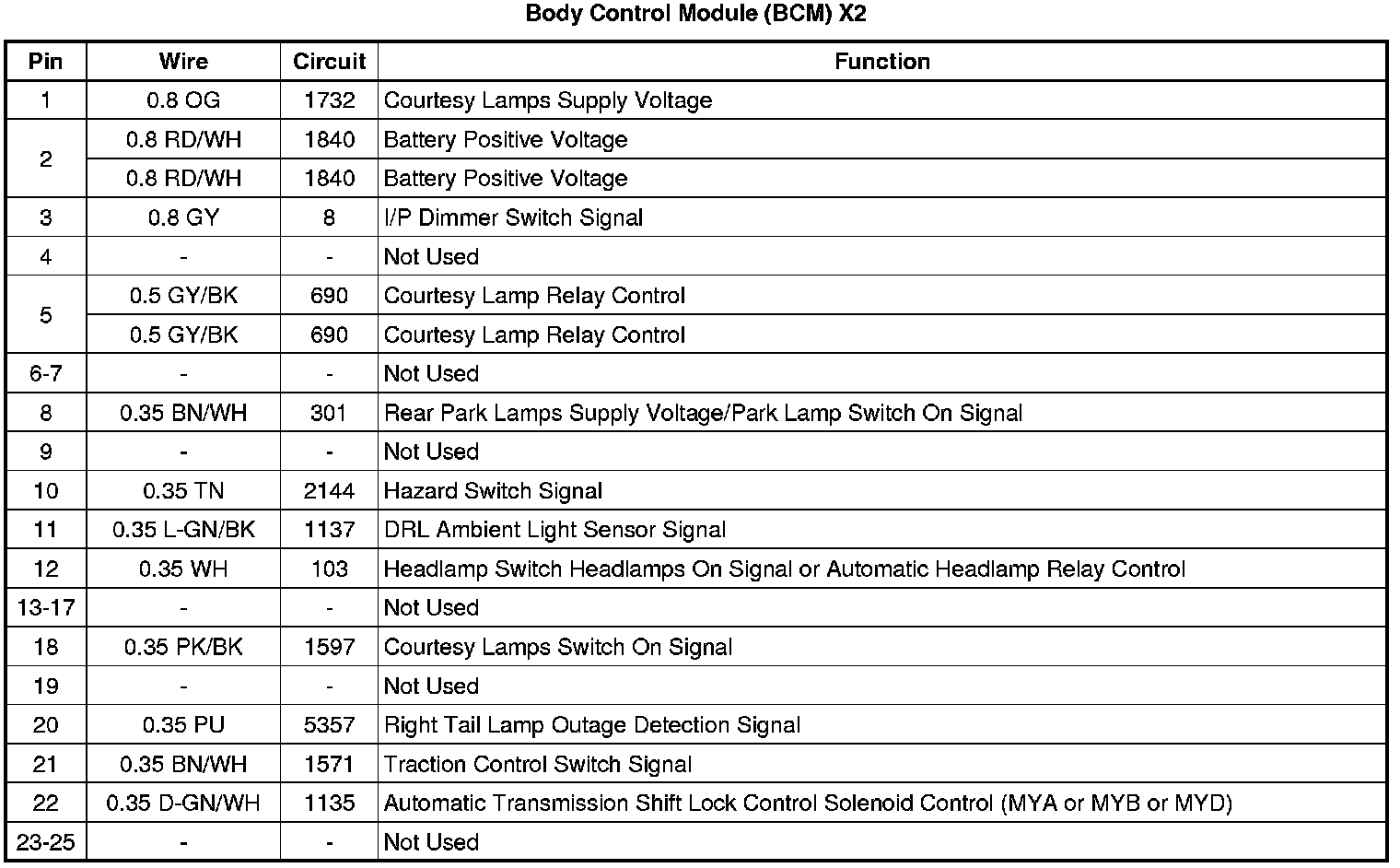

Body Control Module (BCM) X2
