Data Link Resistor (without J77)

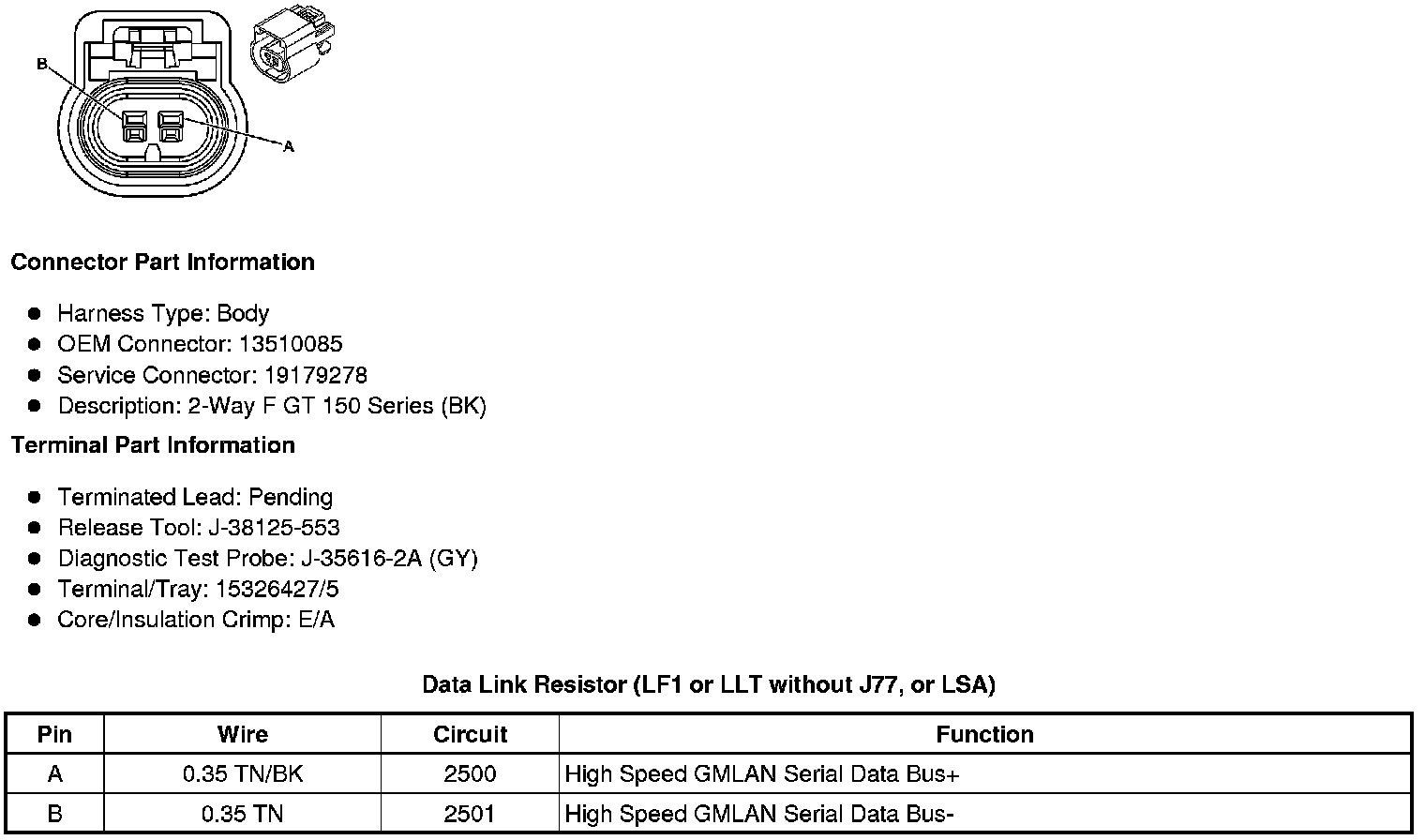

Component Connector End Views

Data Link Resistor (LF1 or LLT without J77, or LSA)
