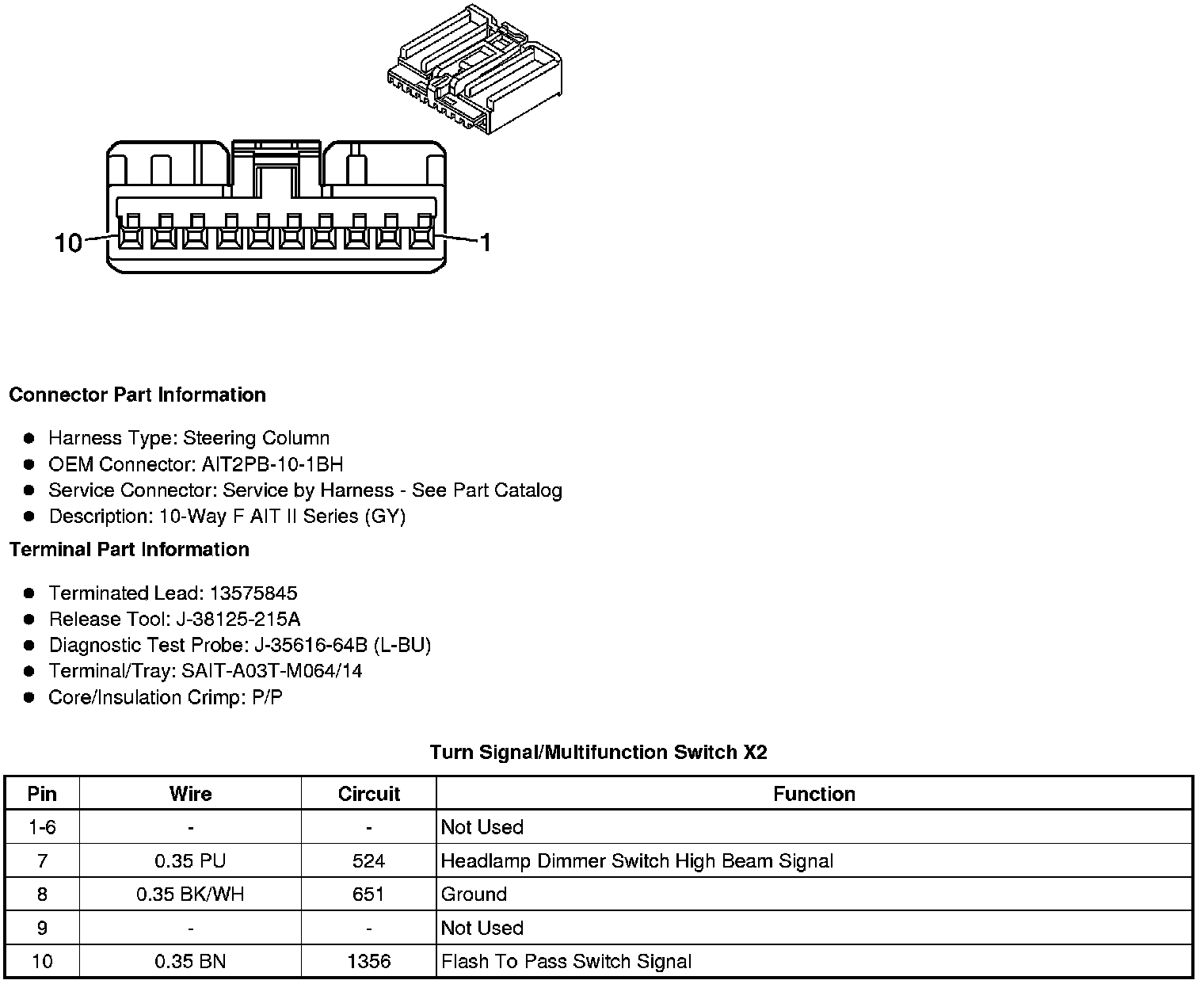

Turn Signal/Multifunction Switch X2




Component Connector End Views

Turn Signal/Multifunction Switch X2
