Combination Switch
>>

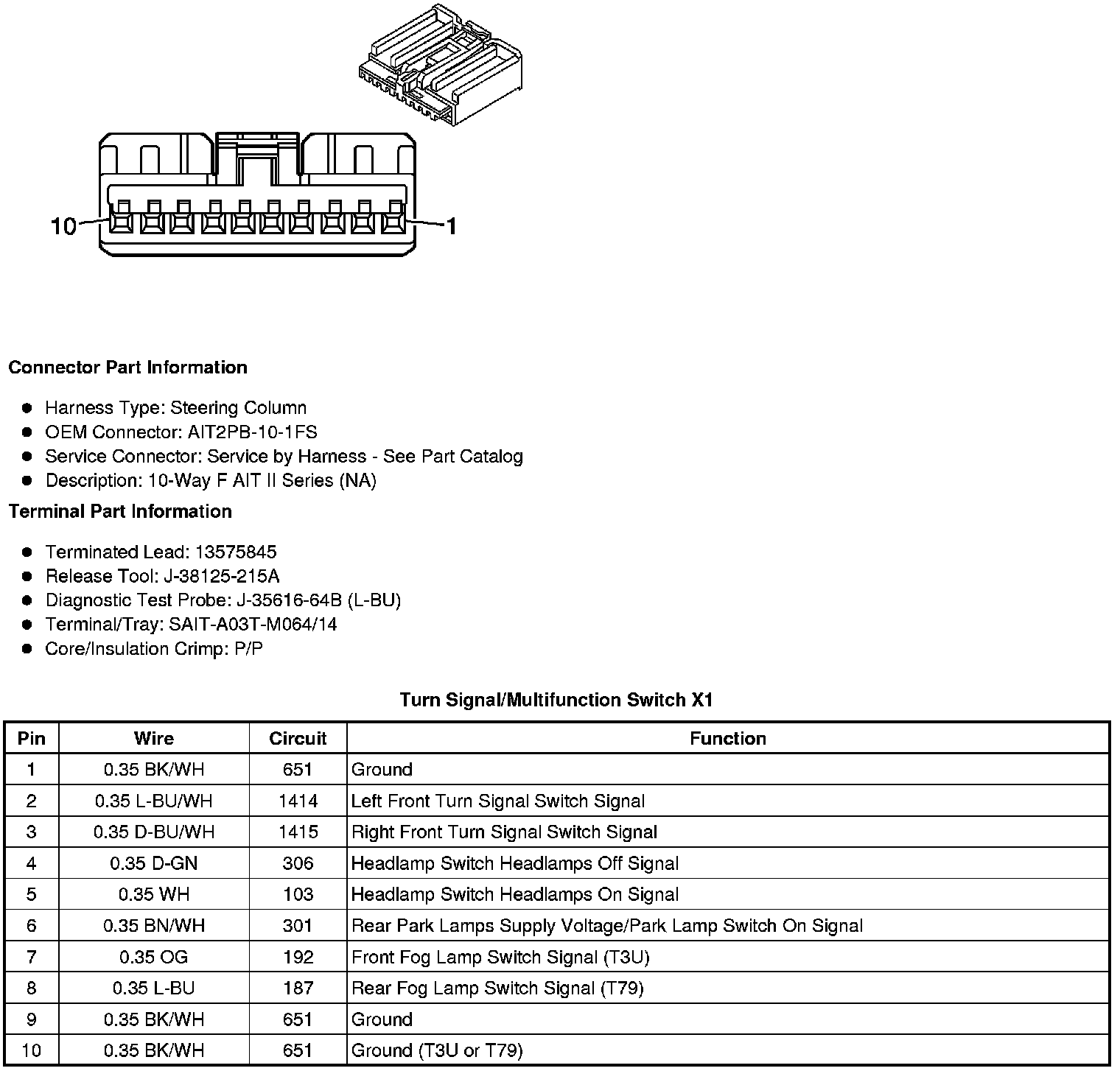

Turn Signal/Multifunction Switch X1
Turn Signal/Multifunction Switch X1
Component Connector End Views
Turn Signal/Multifunction Switch X1
