Camshaft Position Sensor: Diagrams




Component Connector End Views

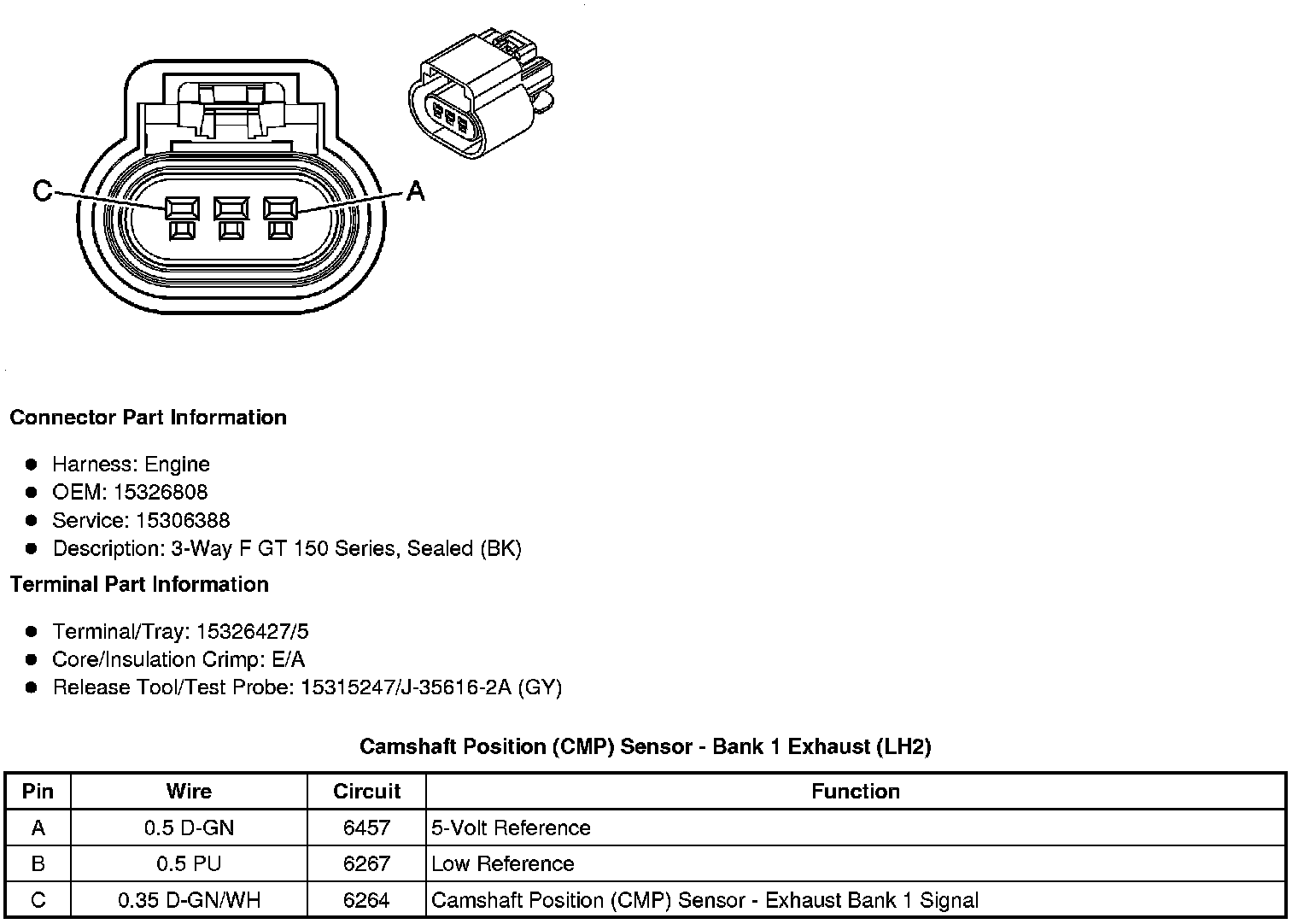

Camshaft Position (CMP) Sensor - Bank 1 Exhaust (LH2)

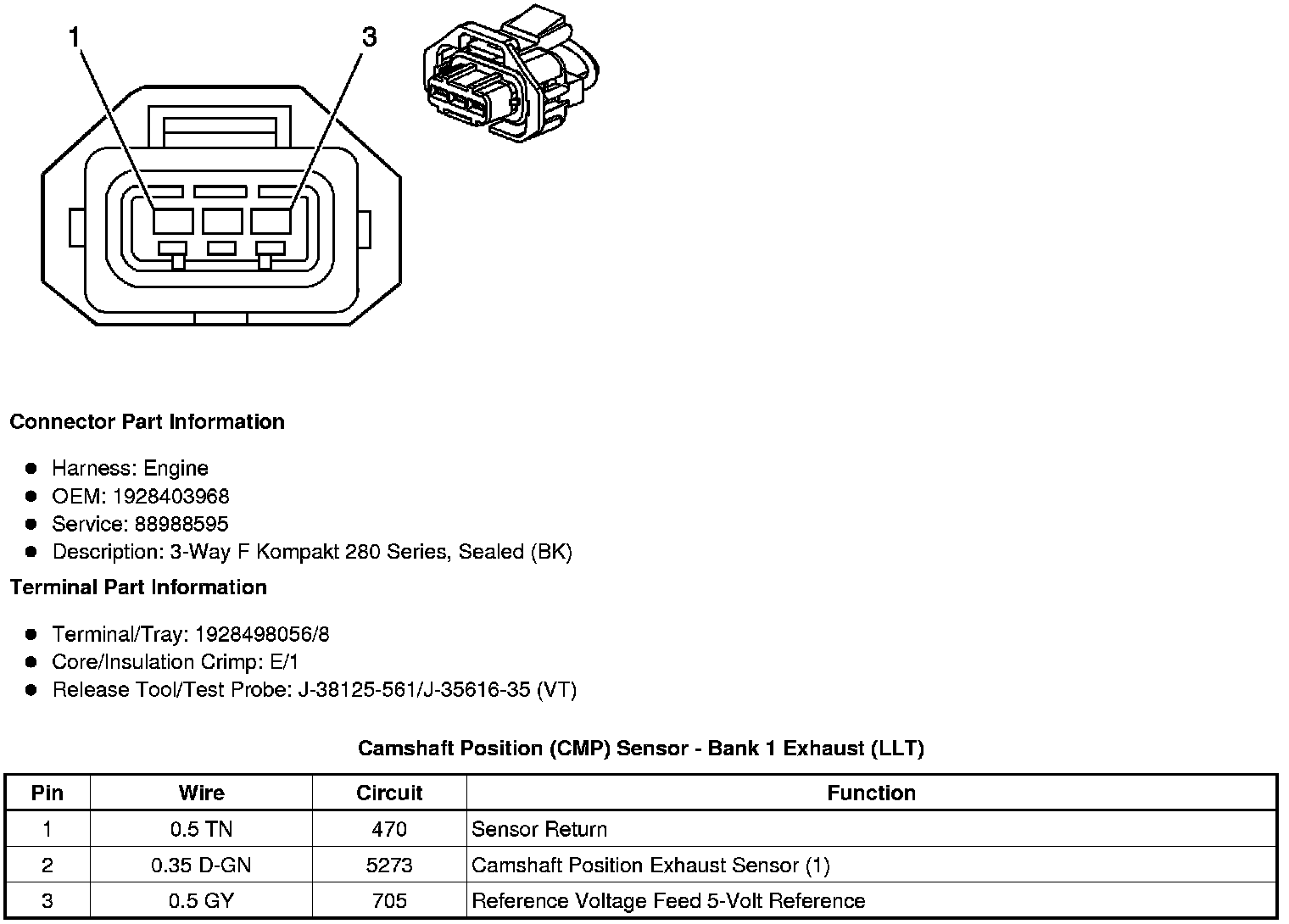

Camshaft Position (CMP) Sensor - Bank 1 Exhaust (LLT)

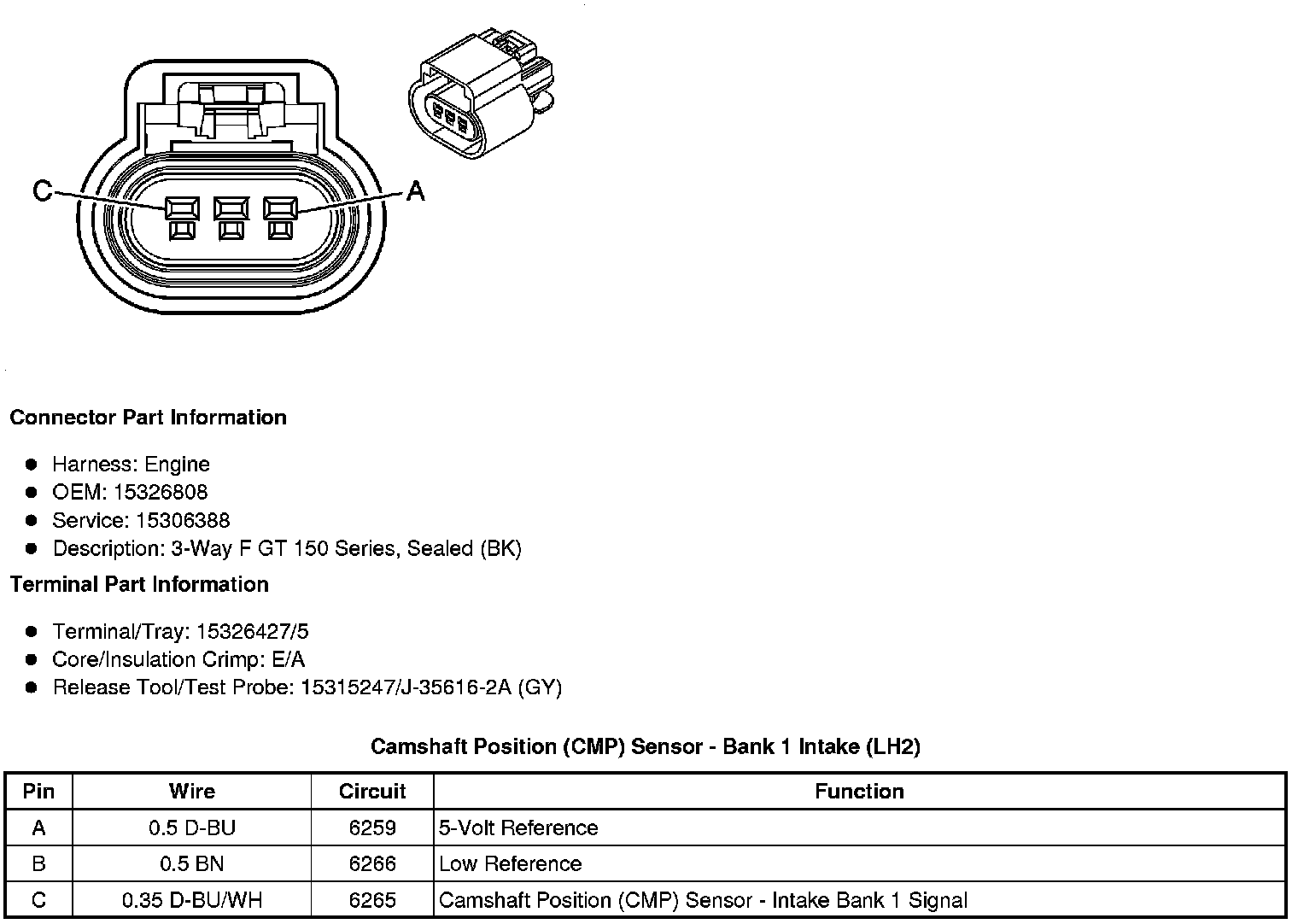

Camshaft Position (CMP) Sensor - Bank 1 Intake (LH2)





Camshaft Position (CMP) Sensor - Bank 1 Intake (LLT)

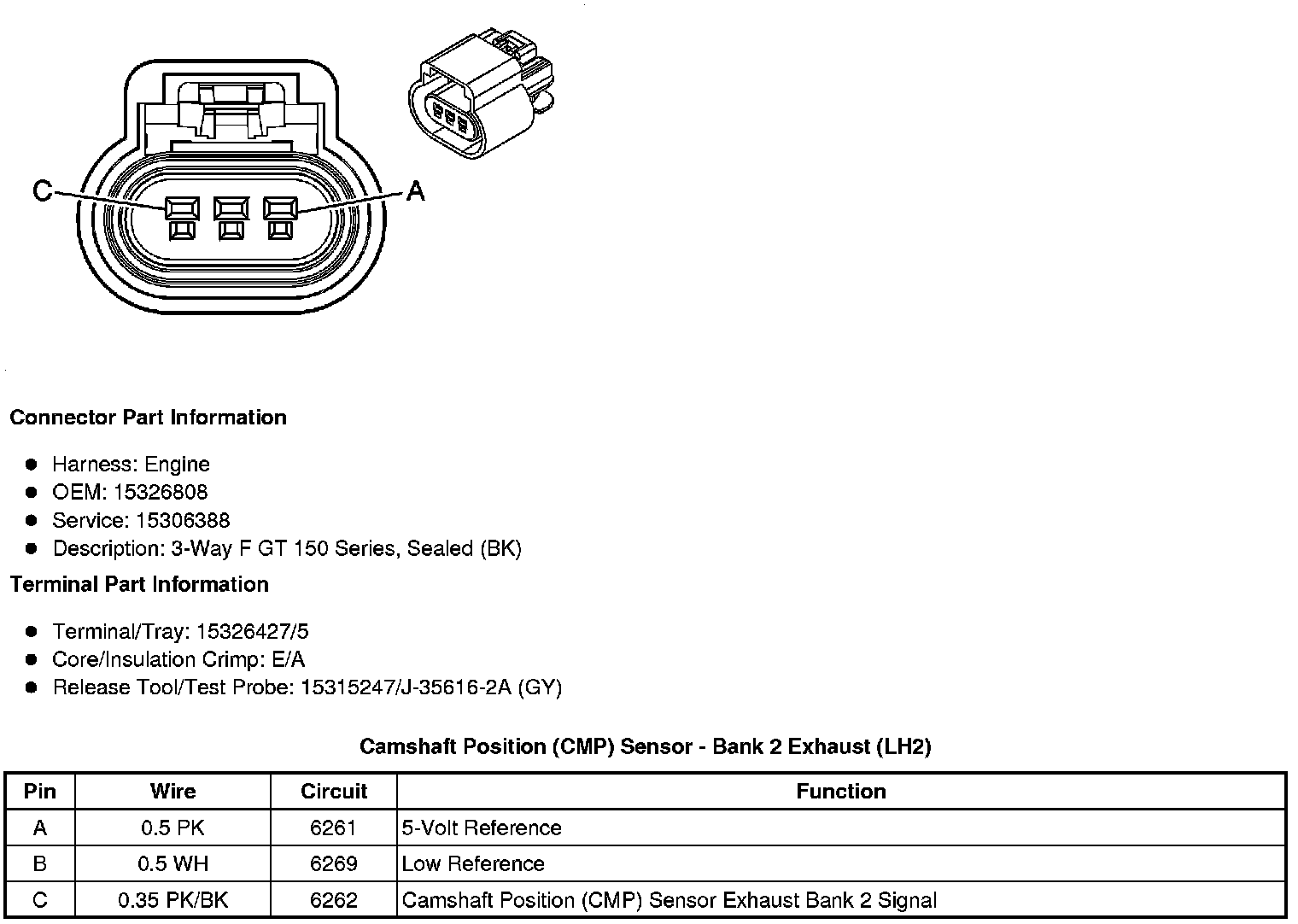

Camshaft Position (CMP) Sensor - Bank 2 Exhaust (LH2)

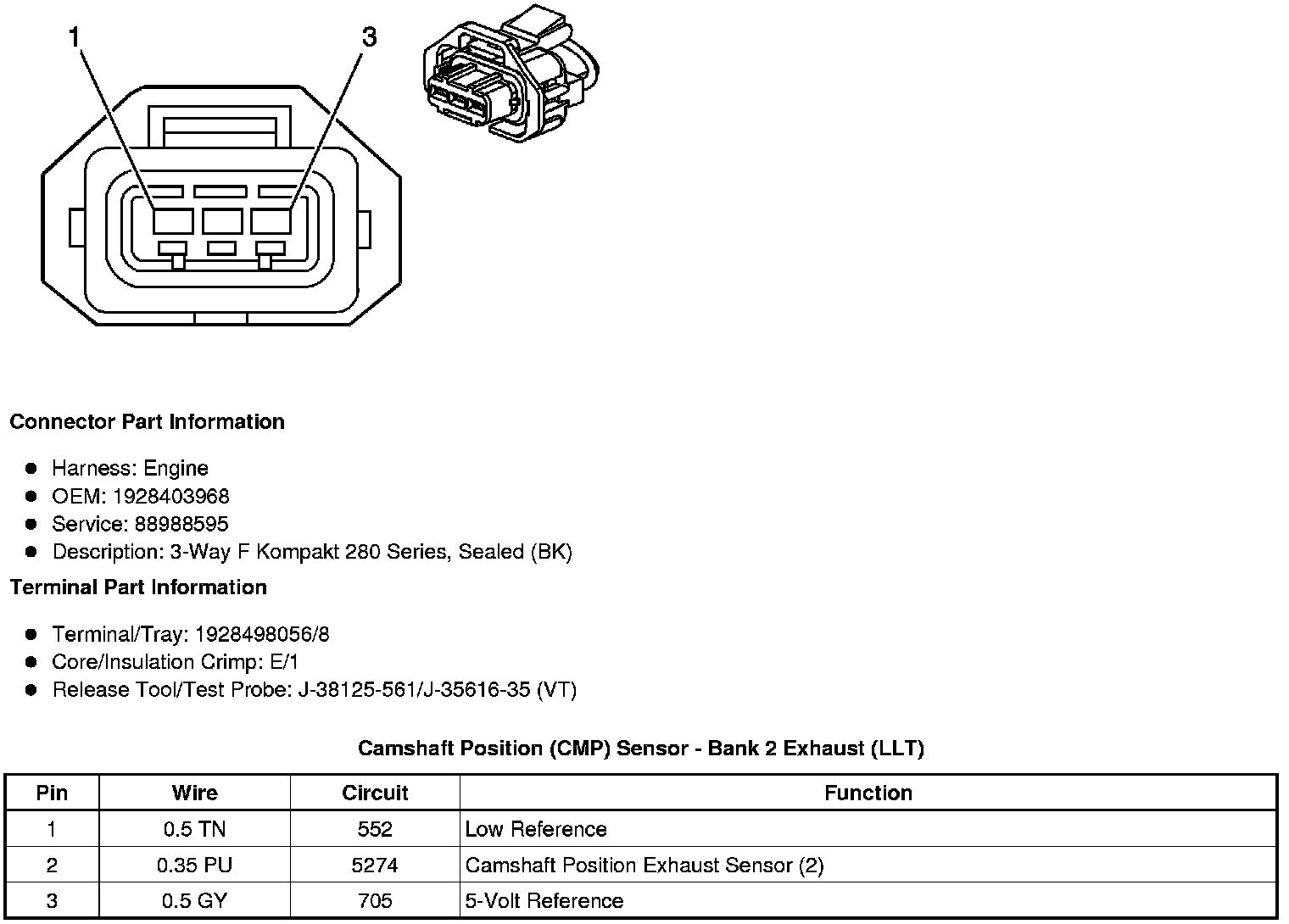

Camshaft Position (CMP) Sensor - Bank 2 Exhaust (LLT)





Camshaft Position (CMP) Sensor - Bank 2 Intake (LH2)

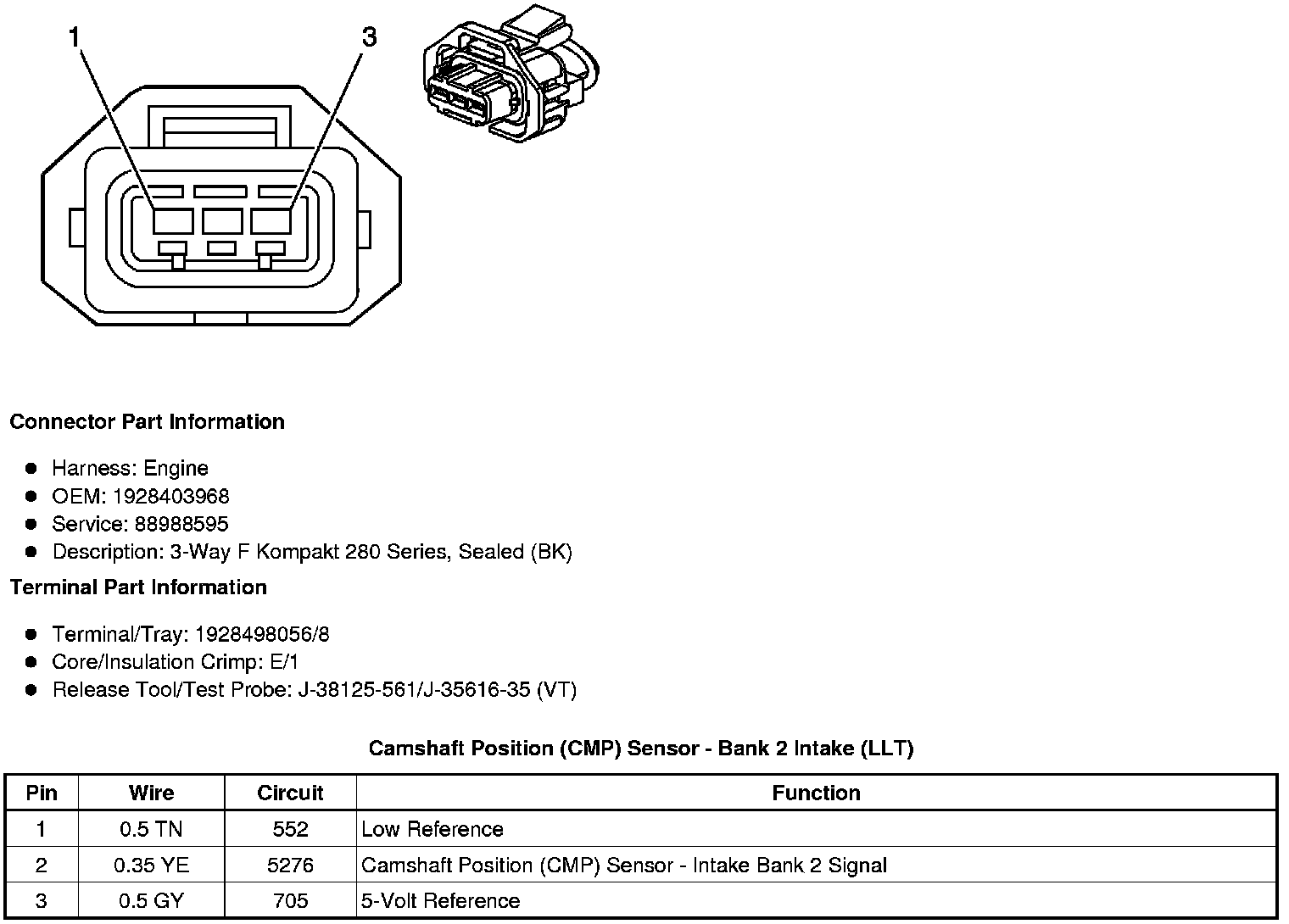

Camshaft Position (CMP) Sensor - Bank 2 Intake (LLT)
