Telescoping Wheel Switch




Component Connector End Views

Steering Column Telescope Motor





Steering Column Telescope Position Sensor (A45)

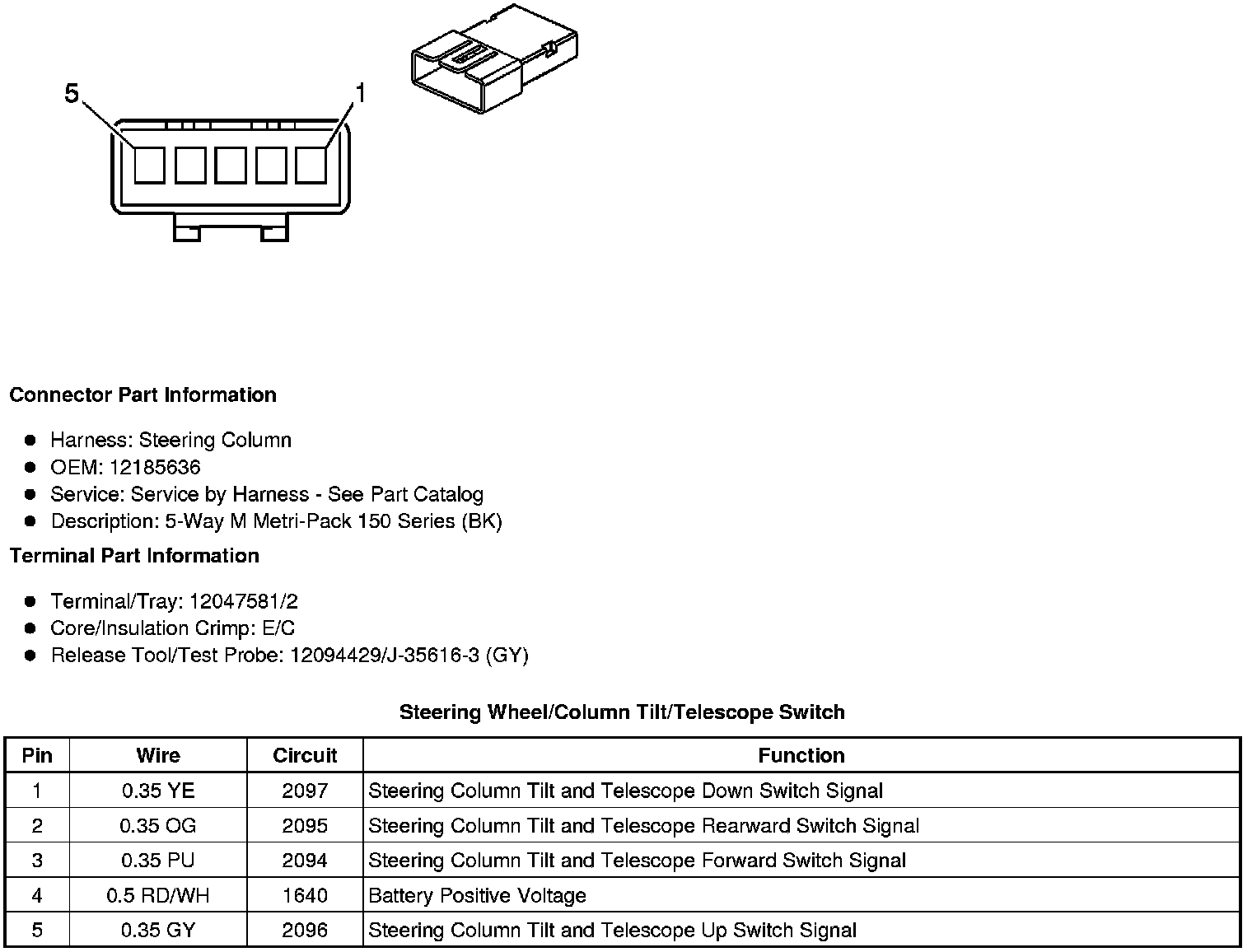

Steering Wheel/Column Tilt/Telescope Switch
