Home
>>
Cadillac
>>
2010
>>
STS AWD V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Sunroof / Moonroof Module
Sunroof / Moonroof Module

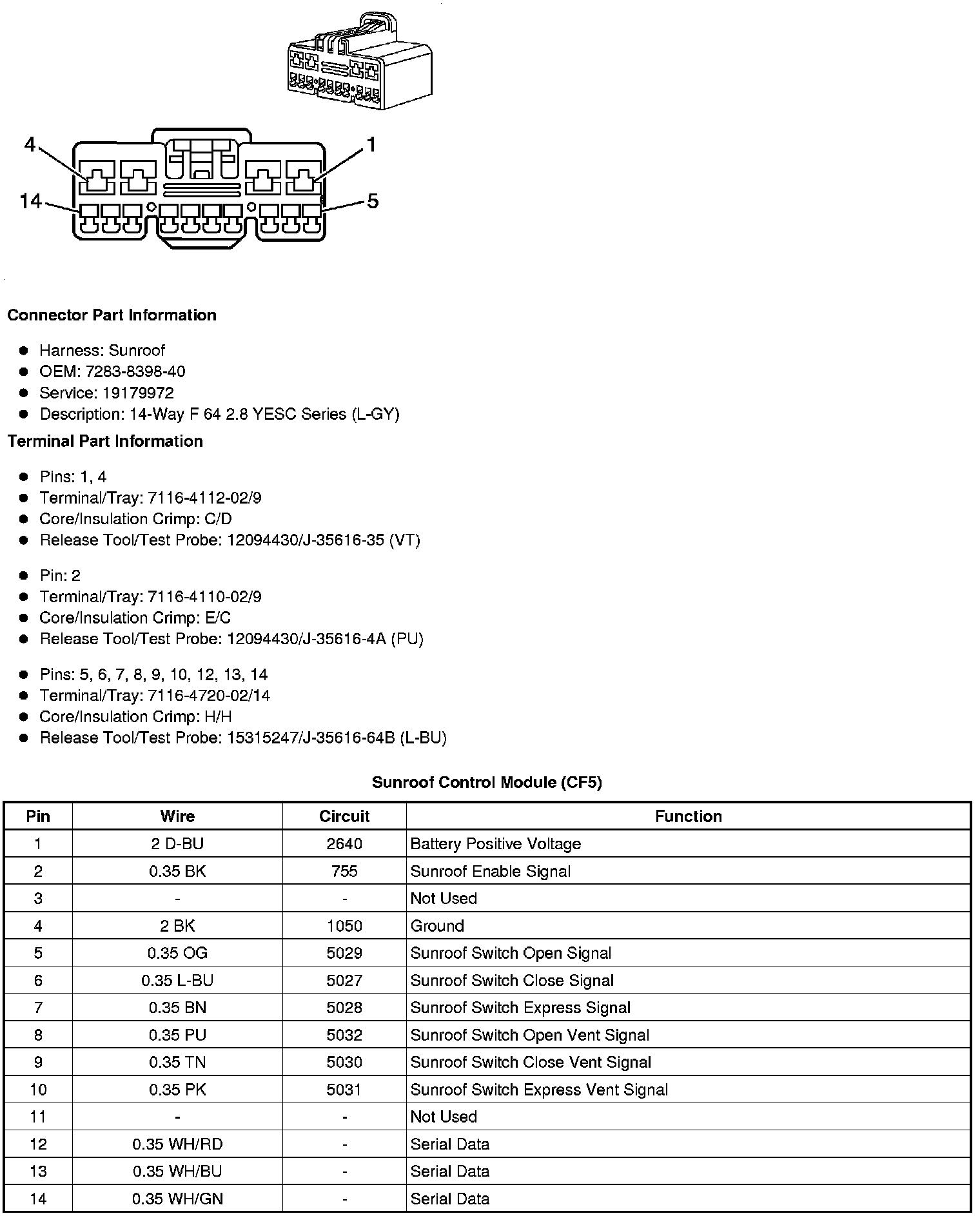

Component Connector End Views
Sunroof Control Module (CF5)
