Dimmer Switch




Component Connector End Views

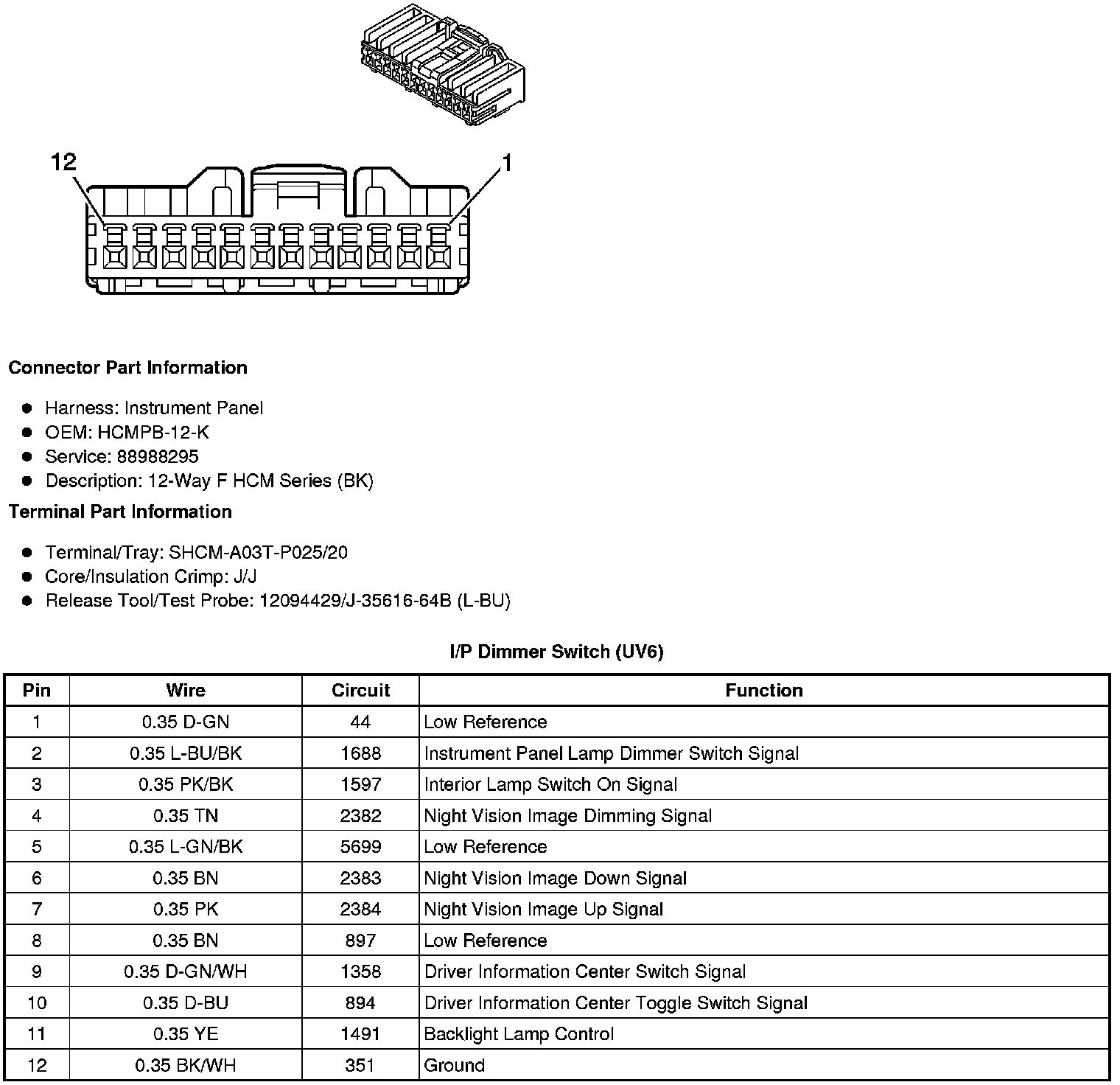

I/P Dimmer Switch (UV6)





I/P Dimmer Switch (without UV6)
