Control Assembly, HVAC




Component Connector End Views

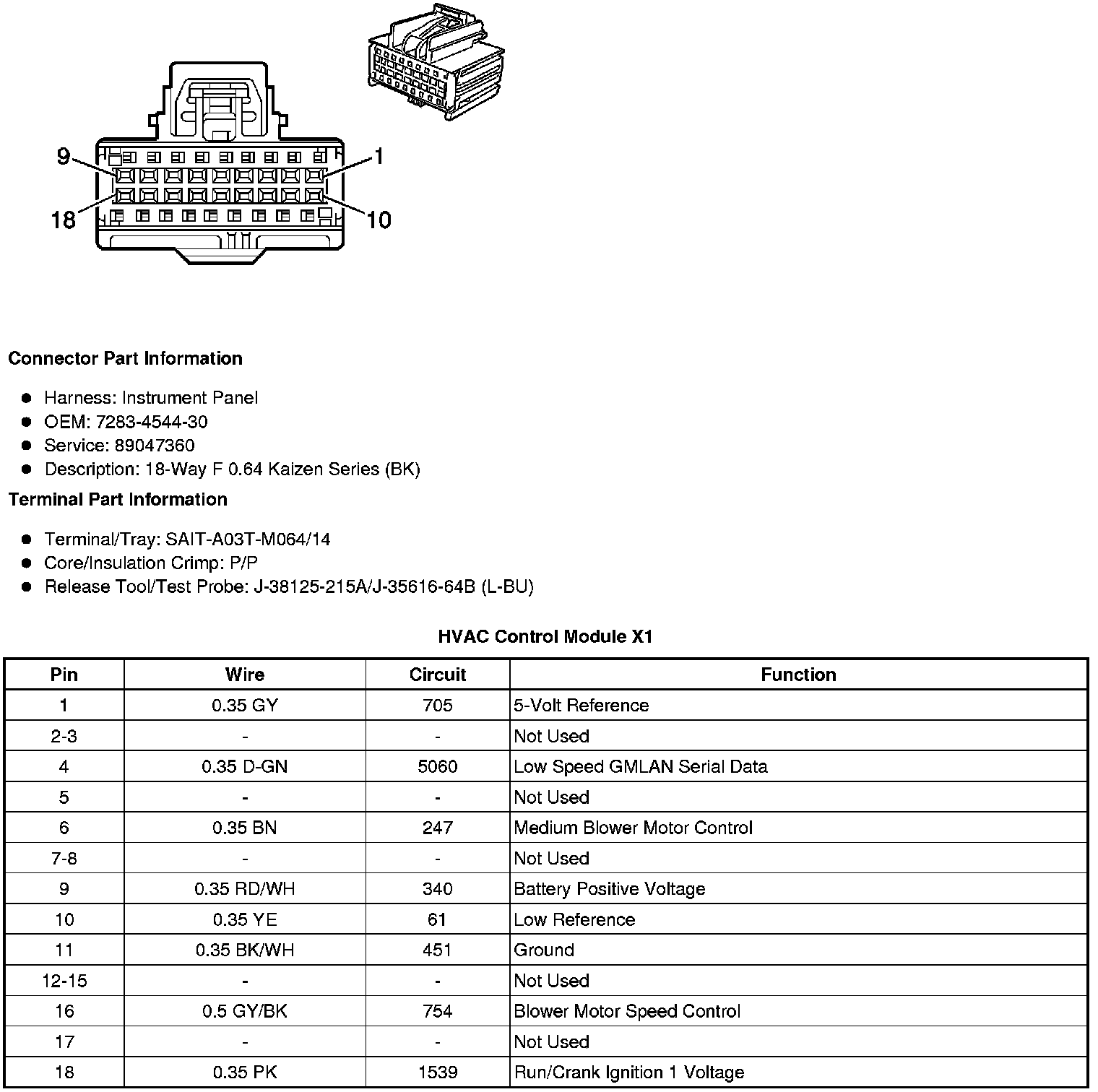

HVAC Control Module X1

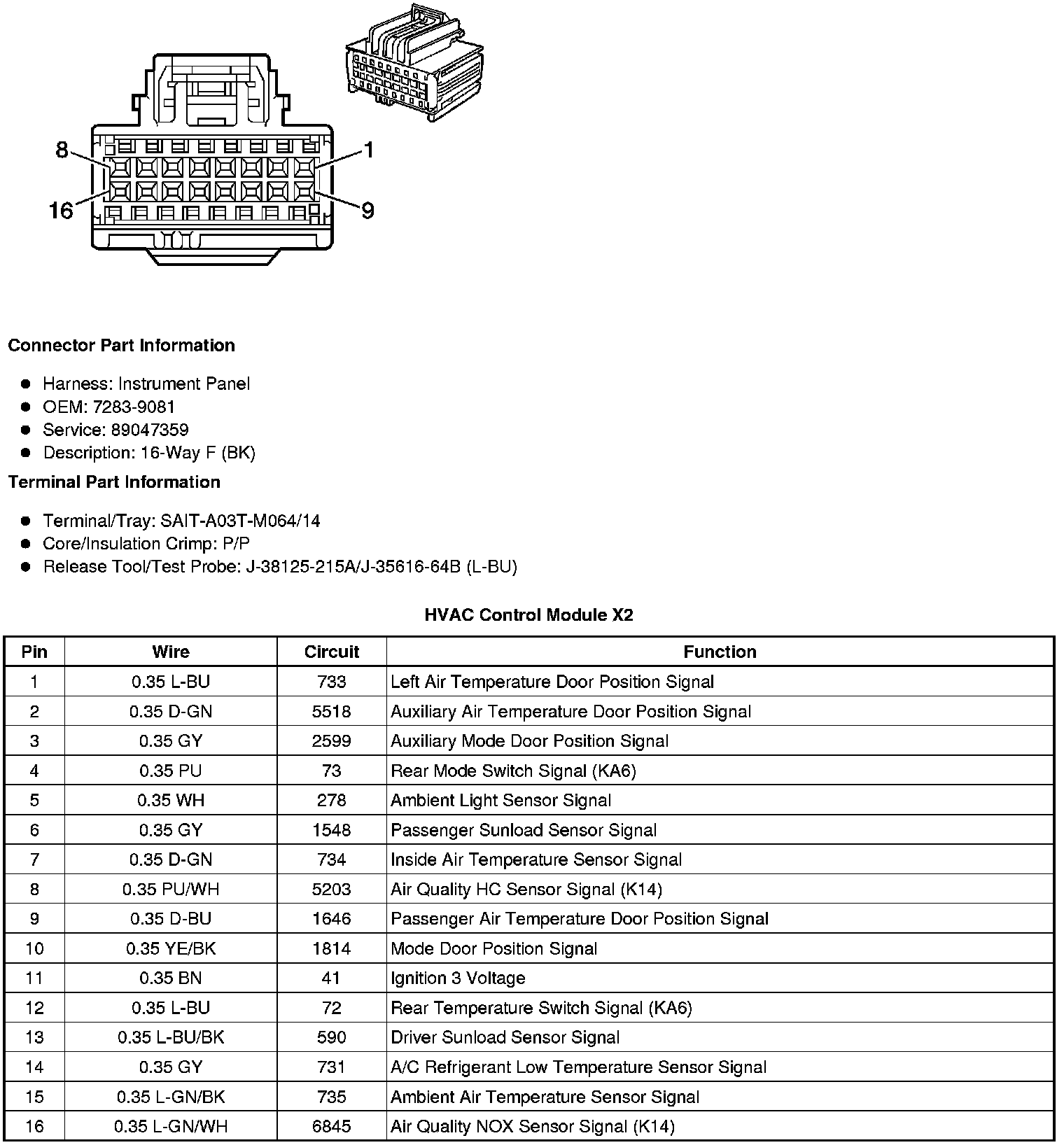

HVAC Control Module X2

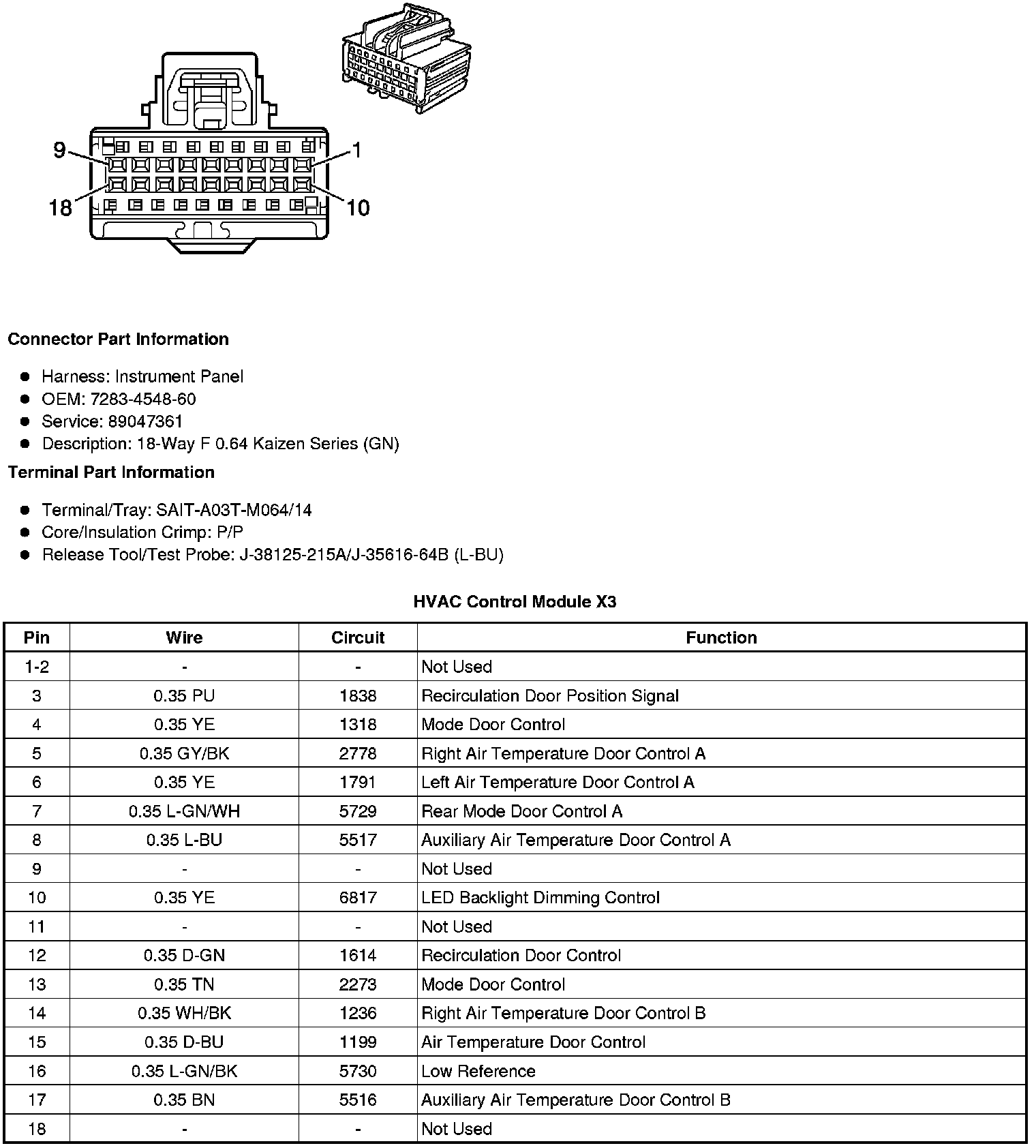

HVAC Control Module X3

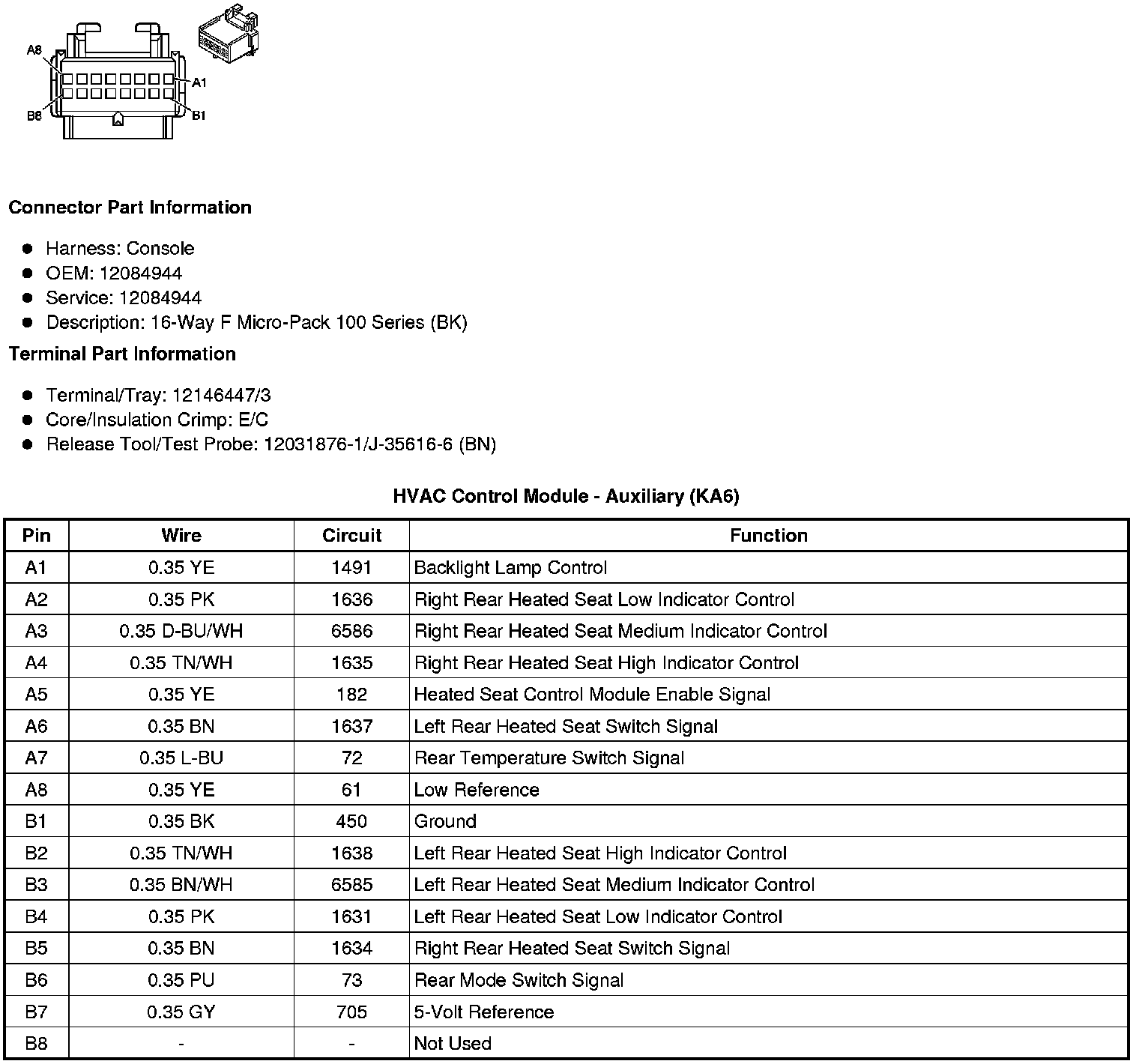

HVAC Control Module - Auxiliary (KA6)
