Brake Fluid Pressure Sensor/Switch
Brake Fluid Pressure Sensor/Switch

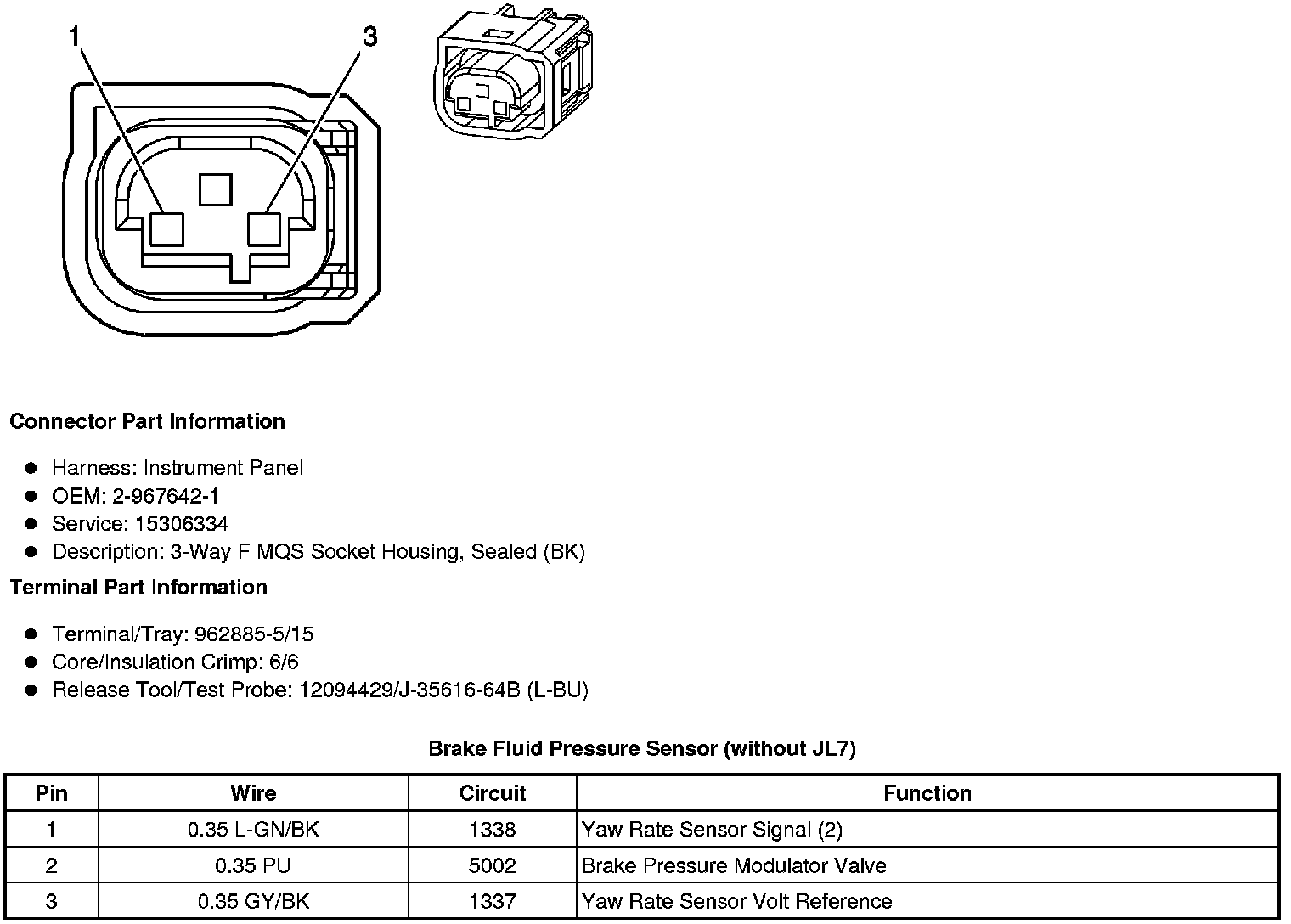

Component Connector End Views
Brake Fluid Pressure Sensor (without JL7)
