Amplifier, Sound System
Amplifier, Sound System
Component Connector End Views

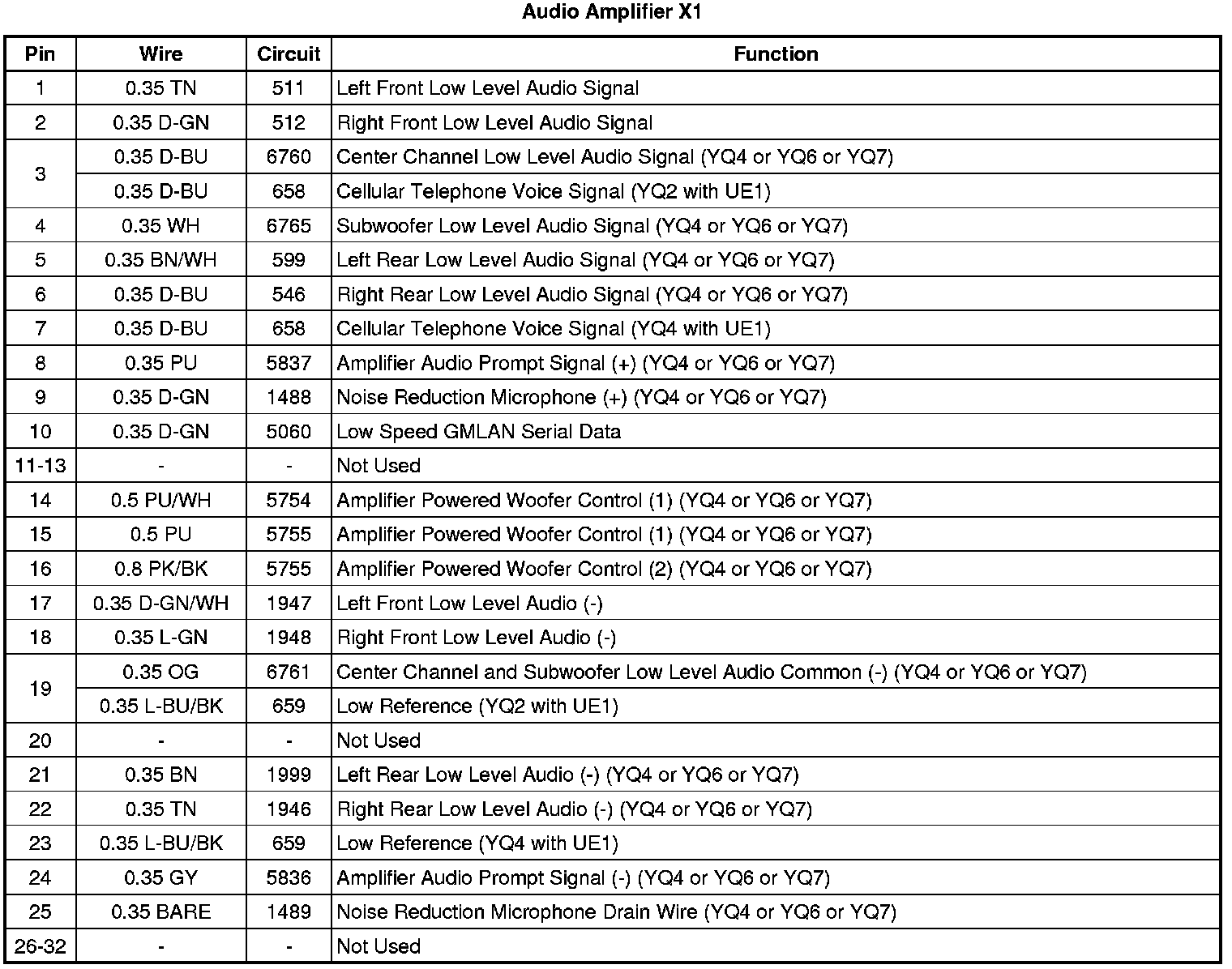

Audio Amplifier X1

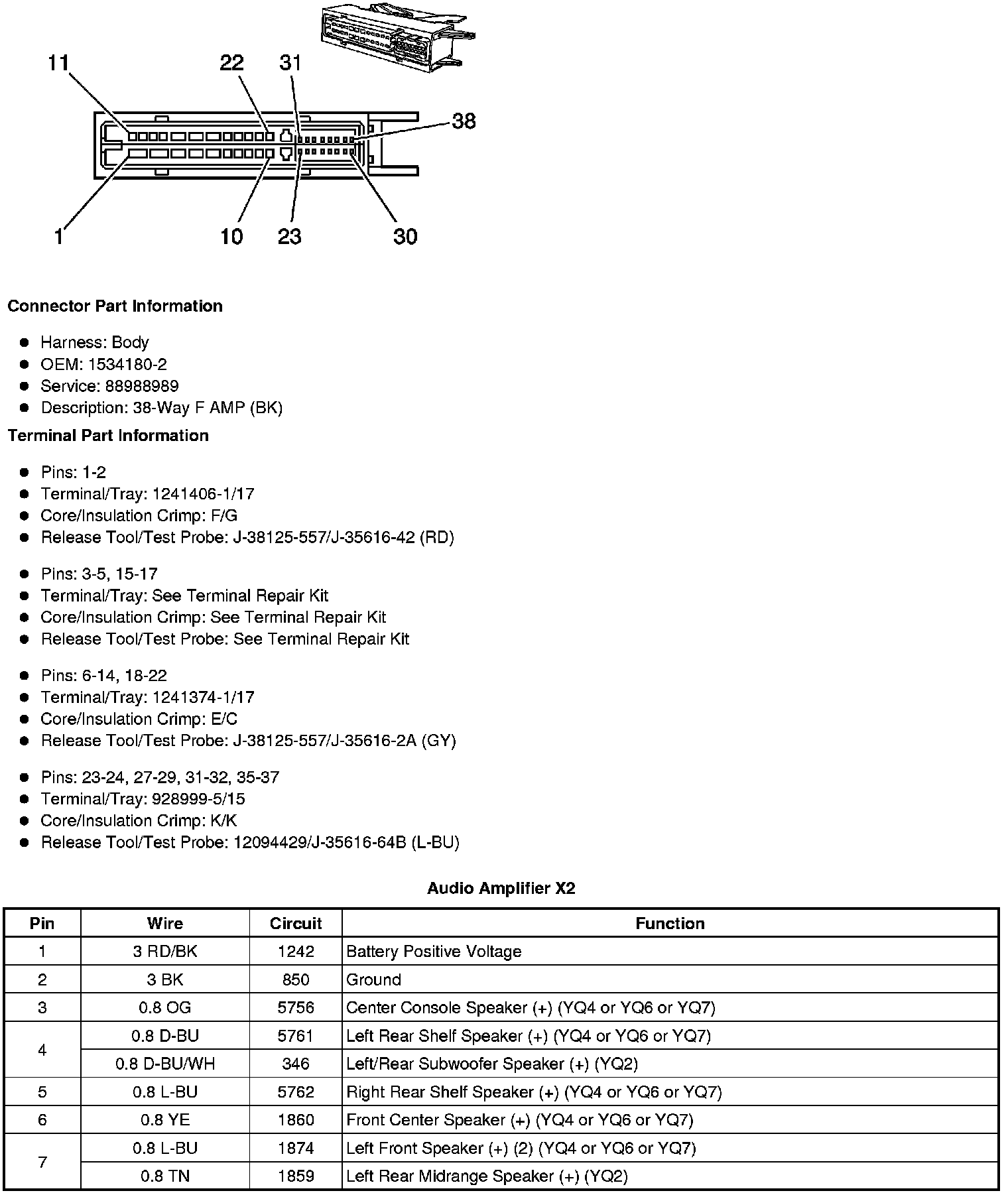

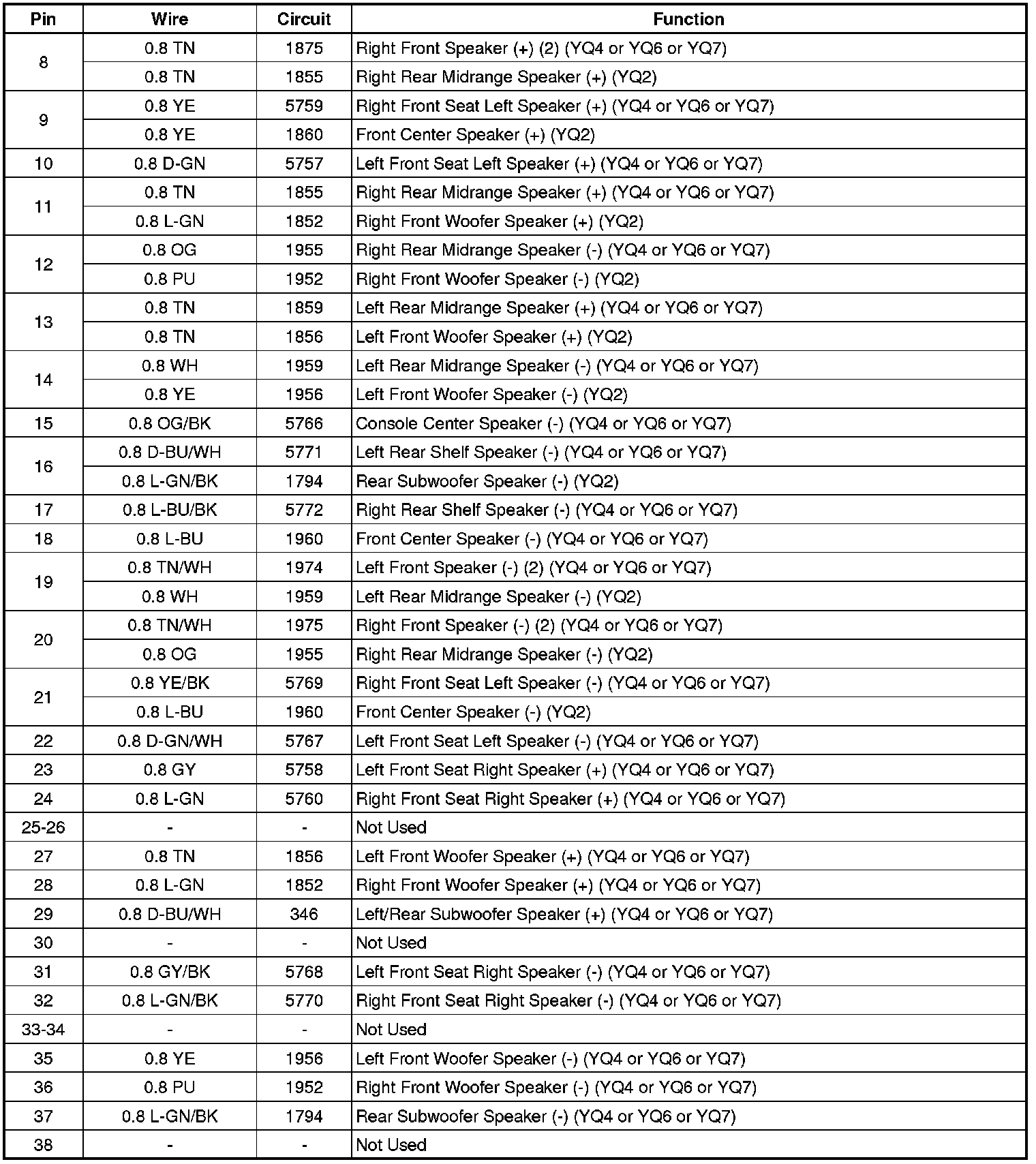

Audio Amplifier X2
