Starter Relay: Locations




Electrical Center Identification Views

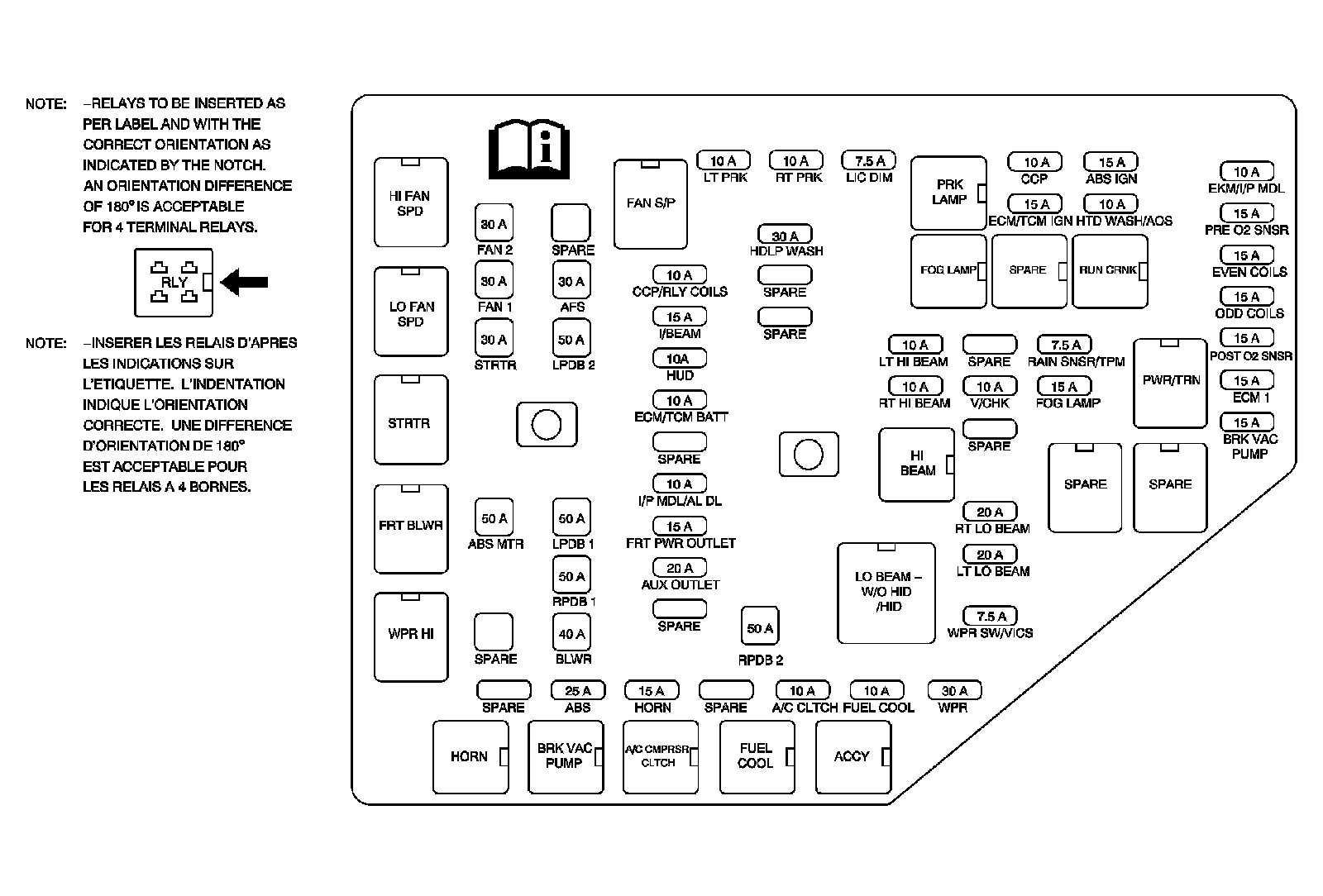

Fuse Block - Underhood Label

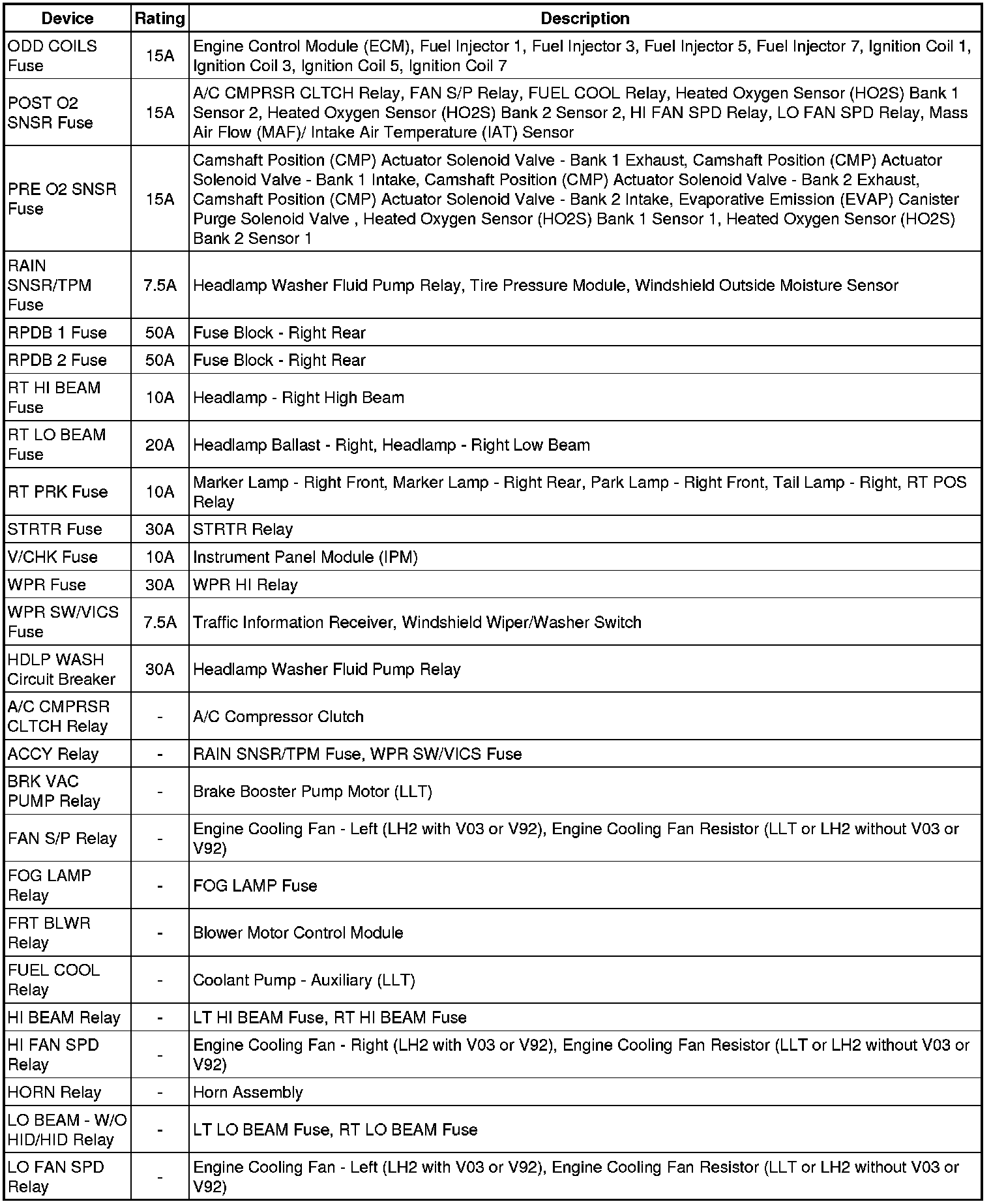

Fuse Block - Underhood X3









Fuse Block - Underhood X3
