Home >> Cadillac >> 2010 >> SRX FWD V6-3.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Transmission Position Sensor/Switch >> Diagrams

Transmission Position Sensor/Switch: Diagrams

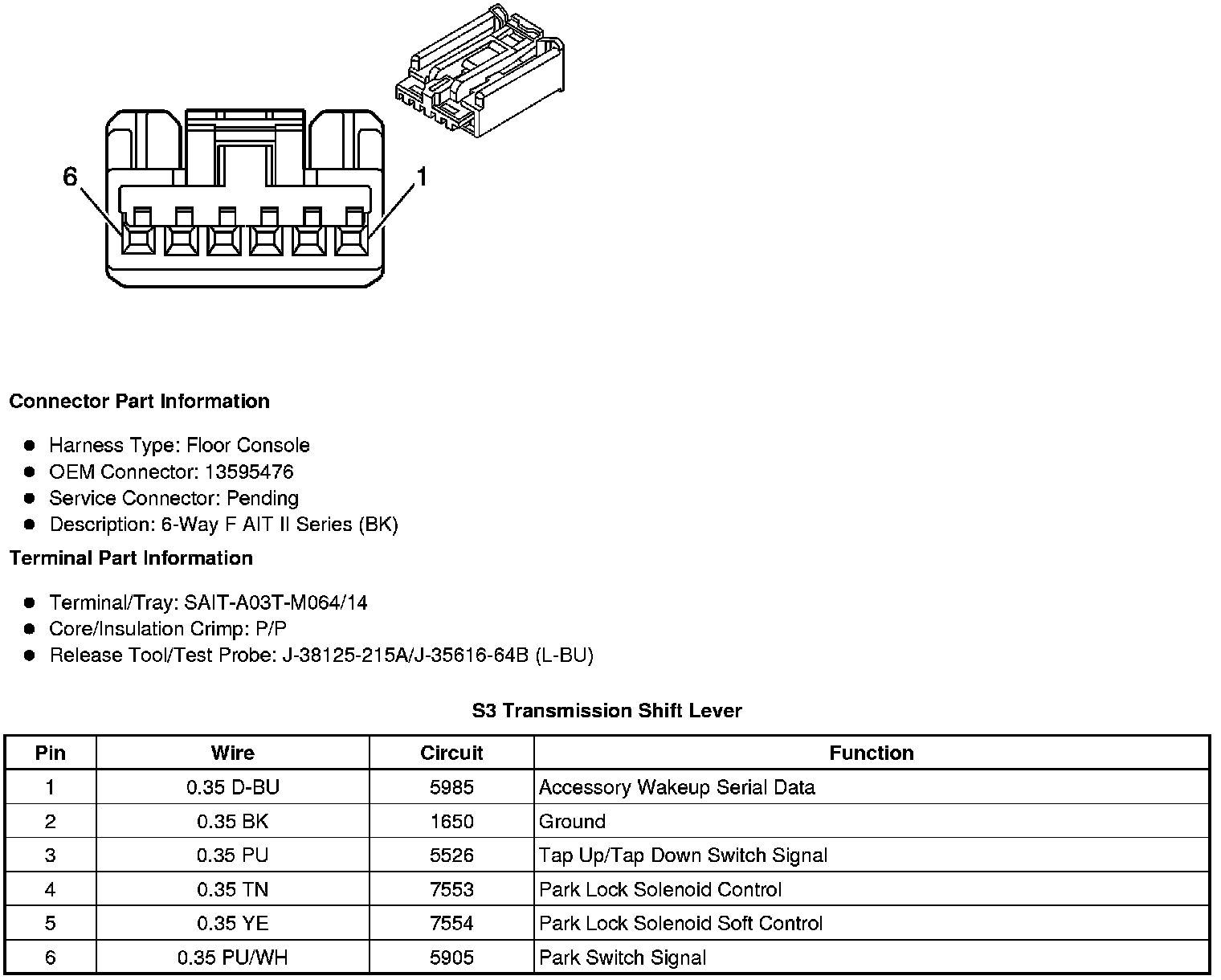

Component Connector End Views

S3 Transmission Shift Lever
