Keyless Entry Receiver: Diagrams




Component Connector End Views

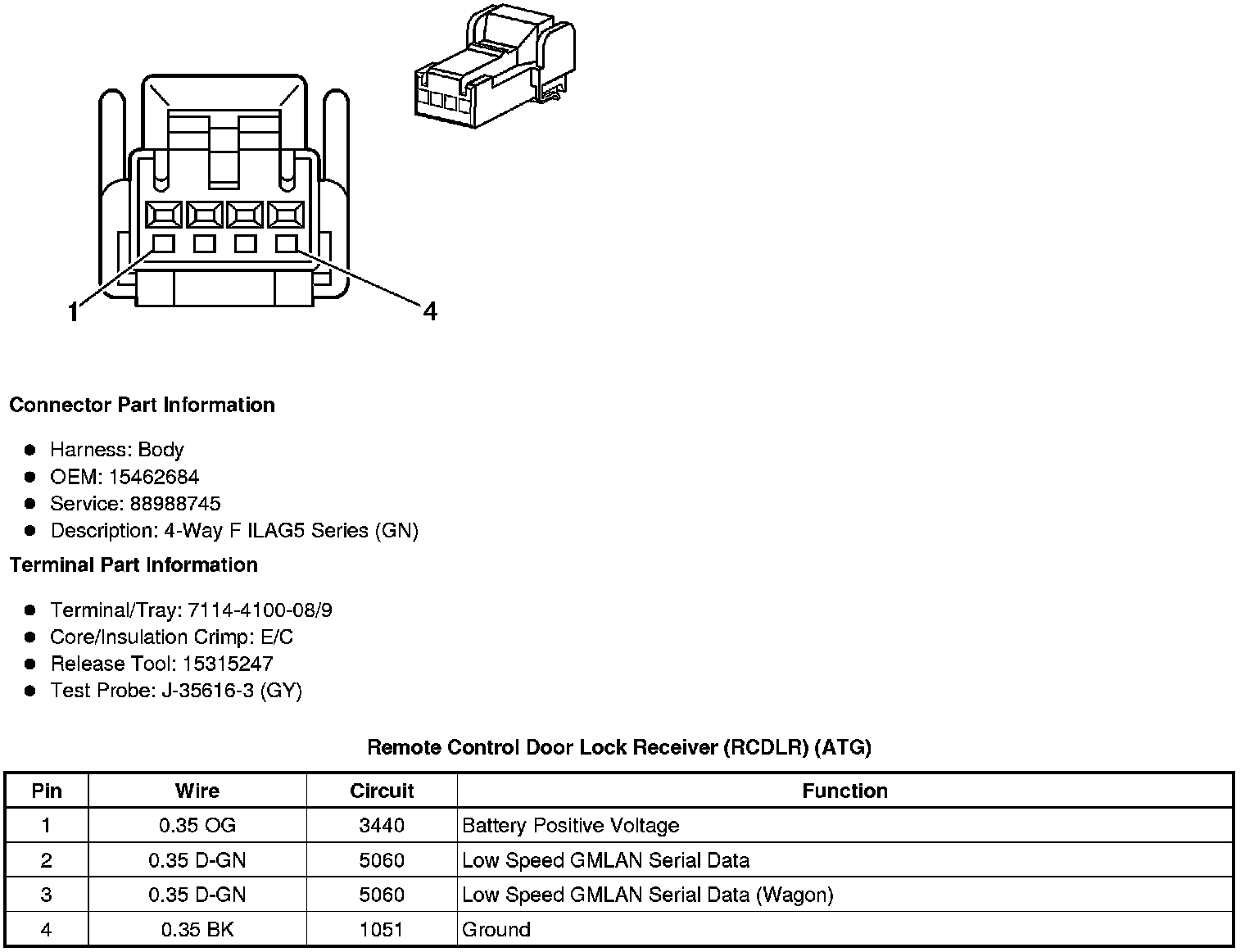

Remote Control Door Lock Receiver (RCDLR) (ATG)

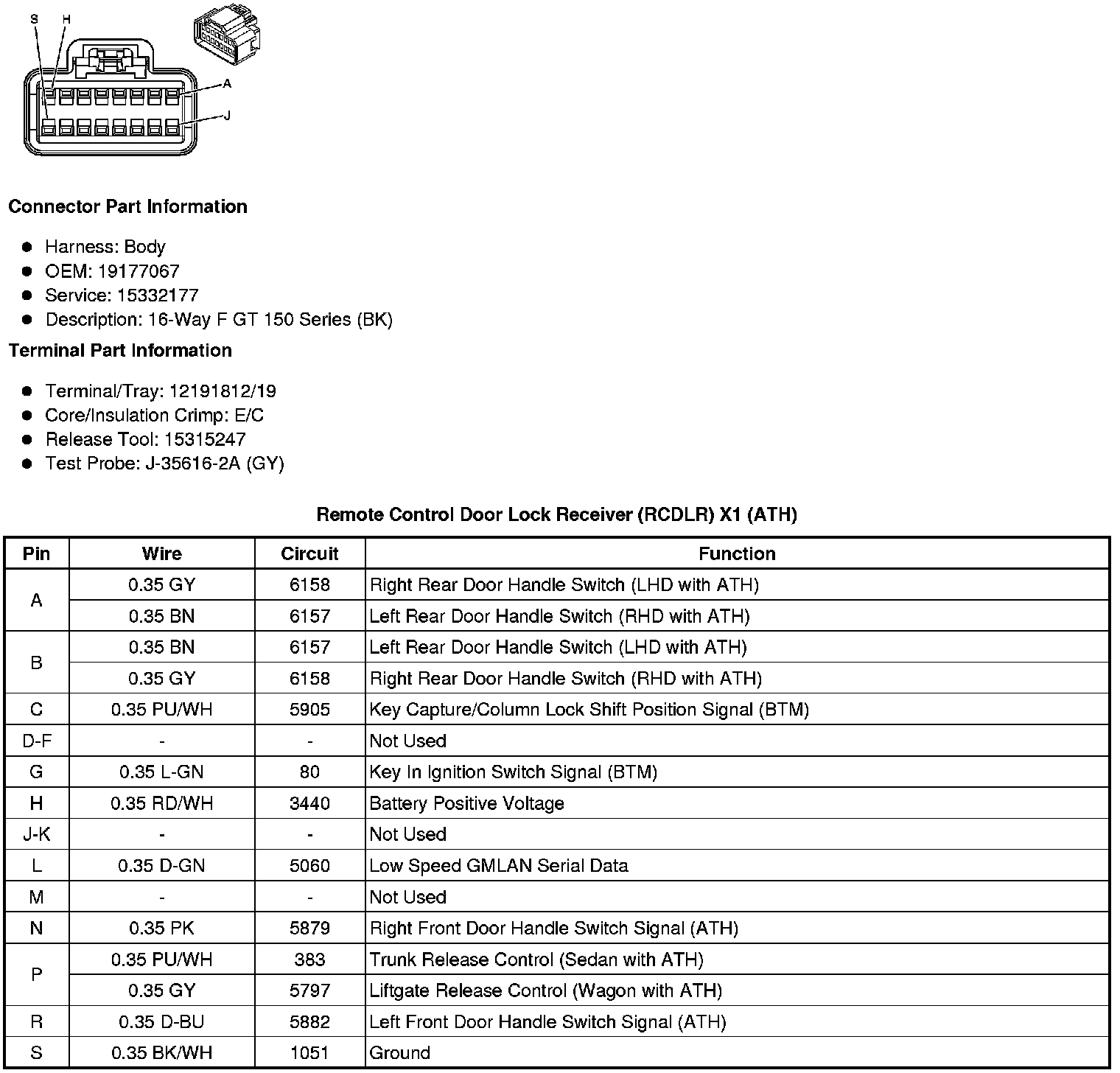

Remote Control Door Lock Receiver (RCDLR) X1 (ATH)

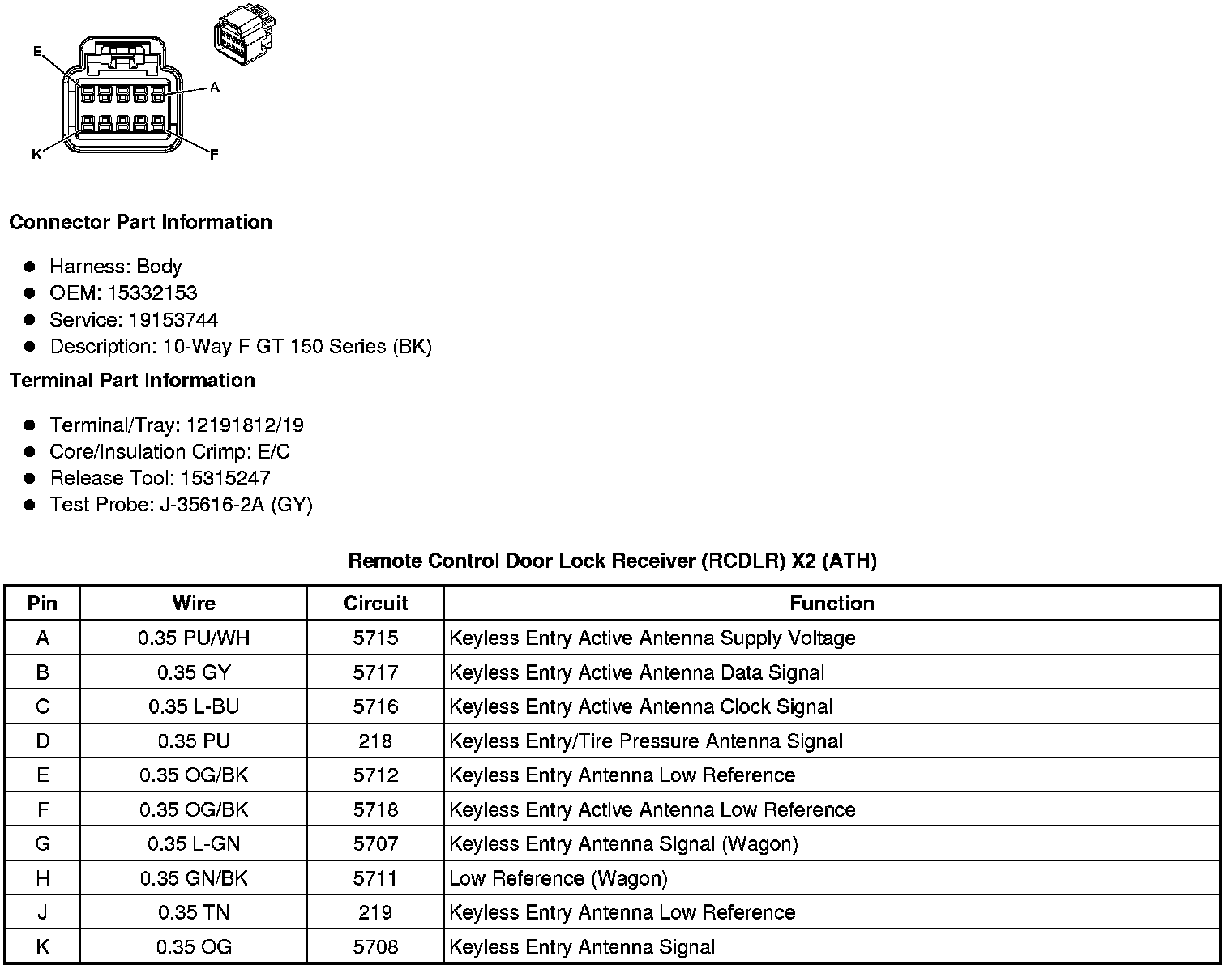

Remote Control Door Lock Receiver (RCDLR) X2 (ATH)

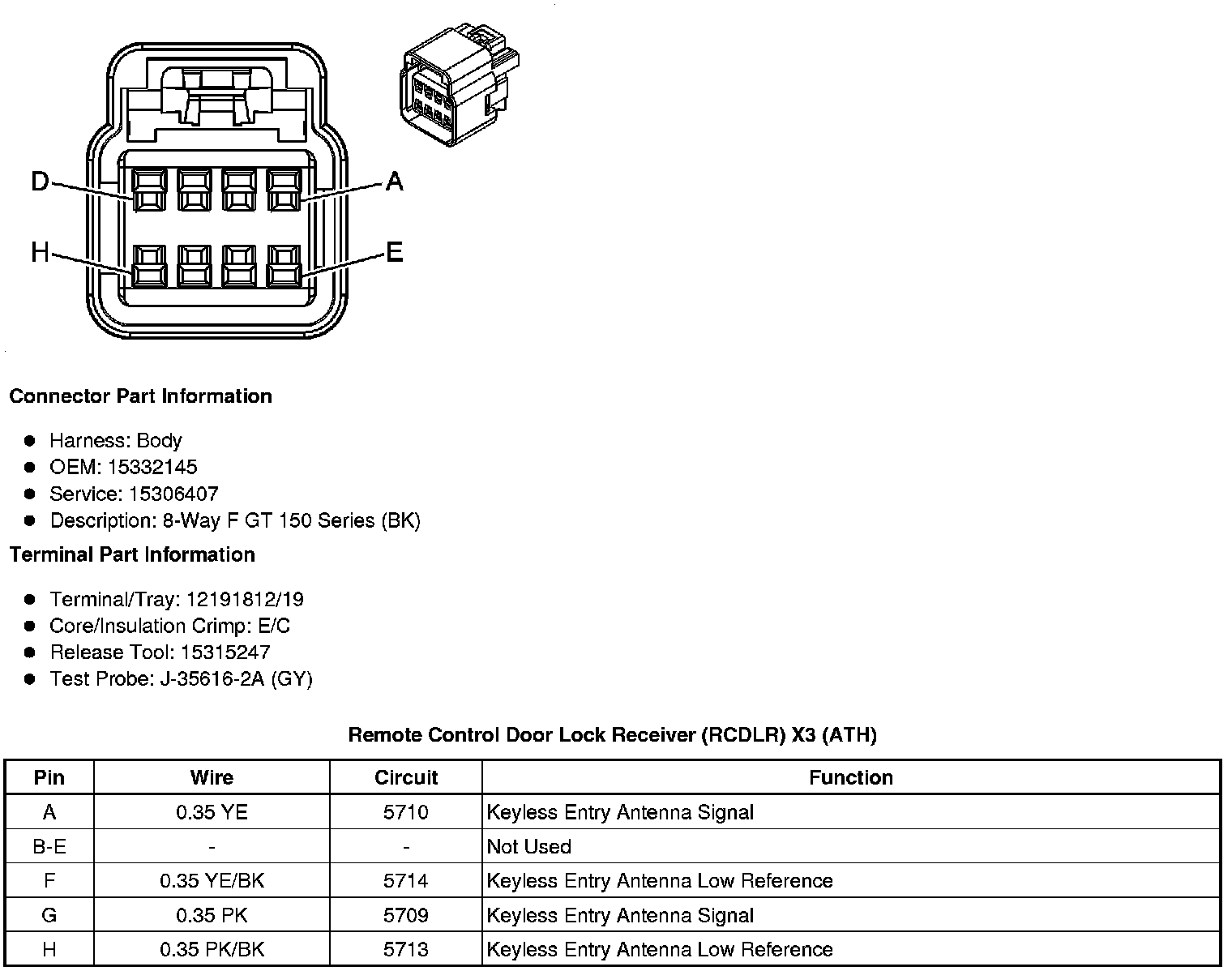

Remote Control Door Lock Receiver (RCDLR) X3 (ATH)
