Tightening Torques & Sequences

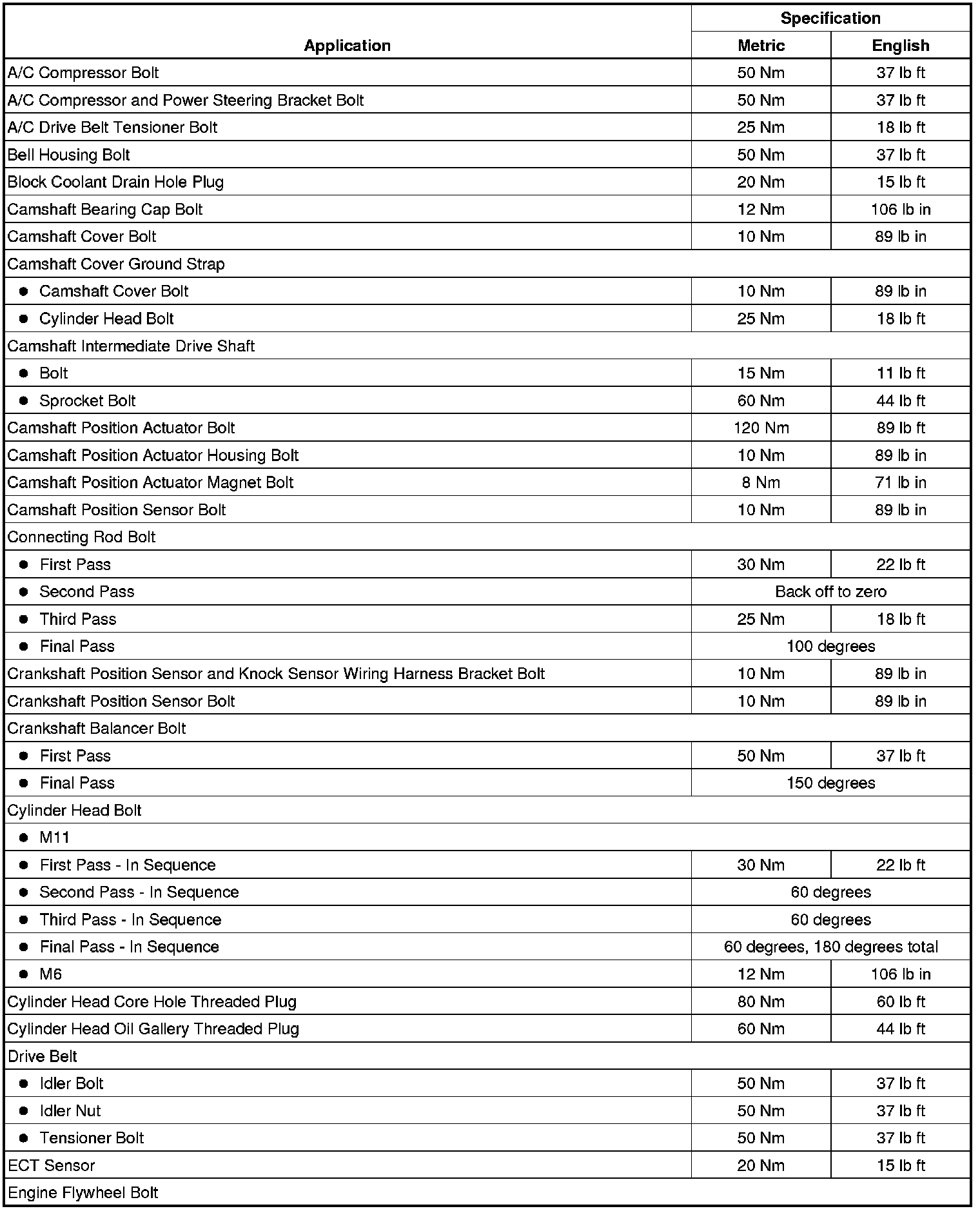

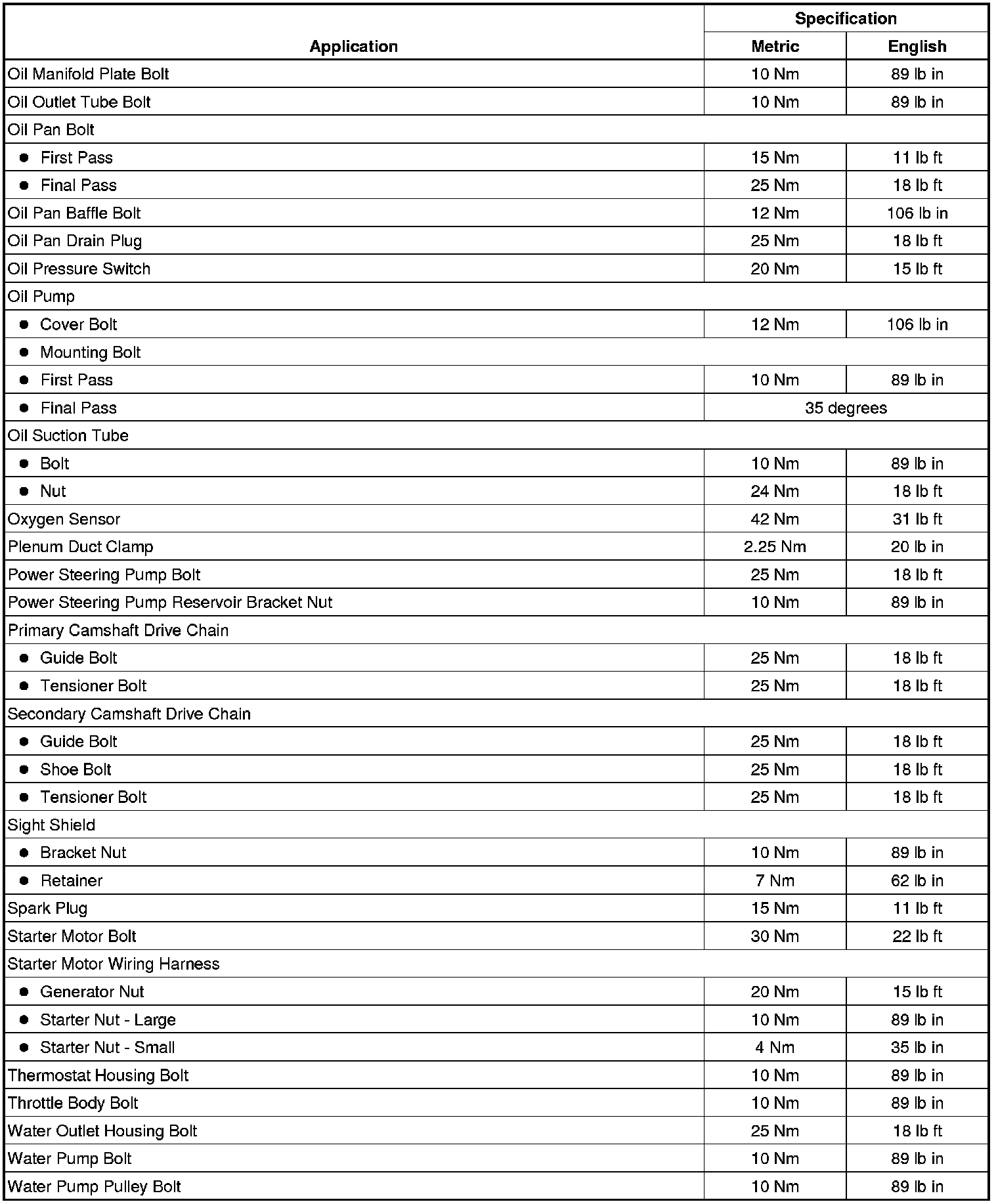

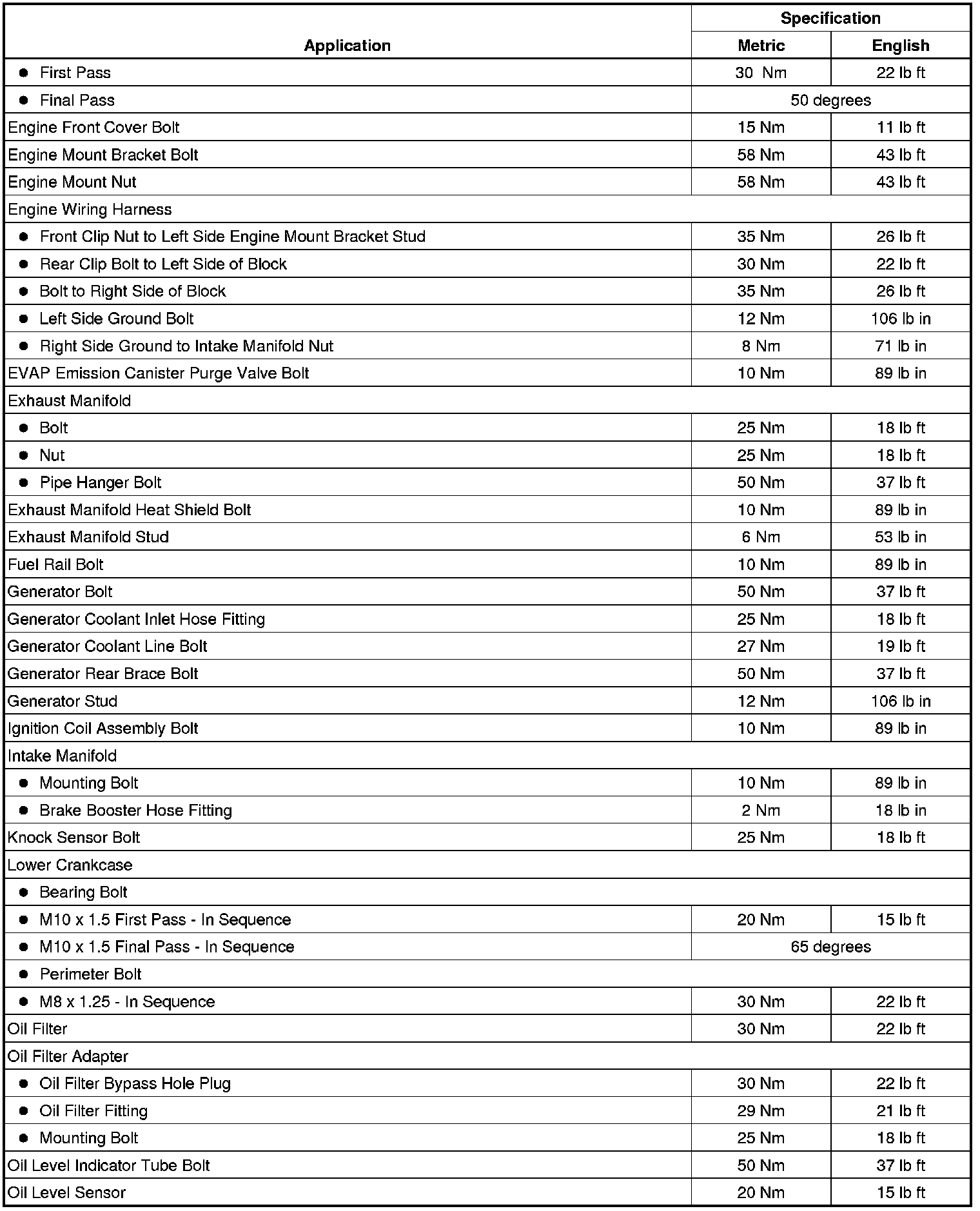

Fastener Tightening Specifications













Cylinder Head Bolt
DO NOT reuse the old M11 cylinder head bolts.
Install new M11 cylinder head bolts in the cylinder head.

Flex Plate Bolts 50 Nm (37 lb ft).
