Seat Temperature Control Module
>>
Seat Back Ventilation Heating and Cooling Module - Passenger
Seat Back Ventilation Heating and Cooling Module - Passenger

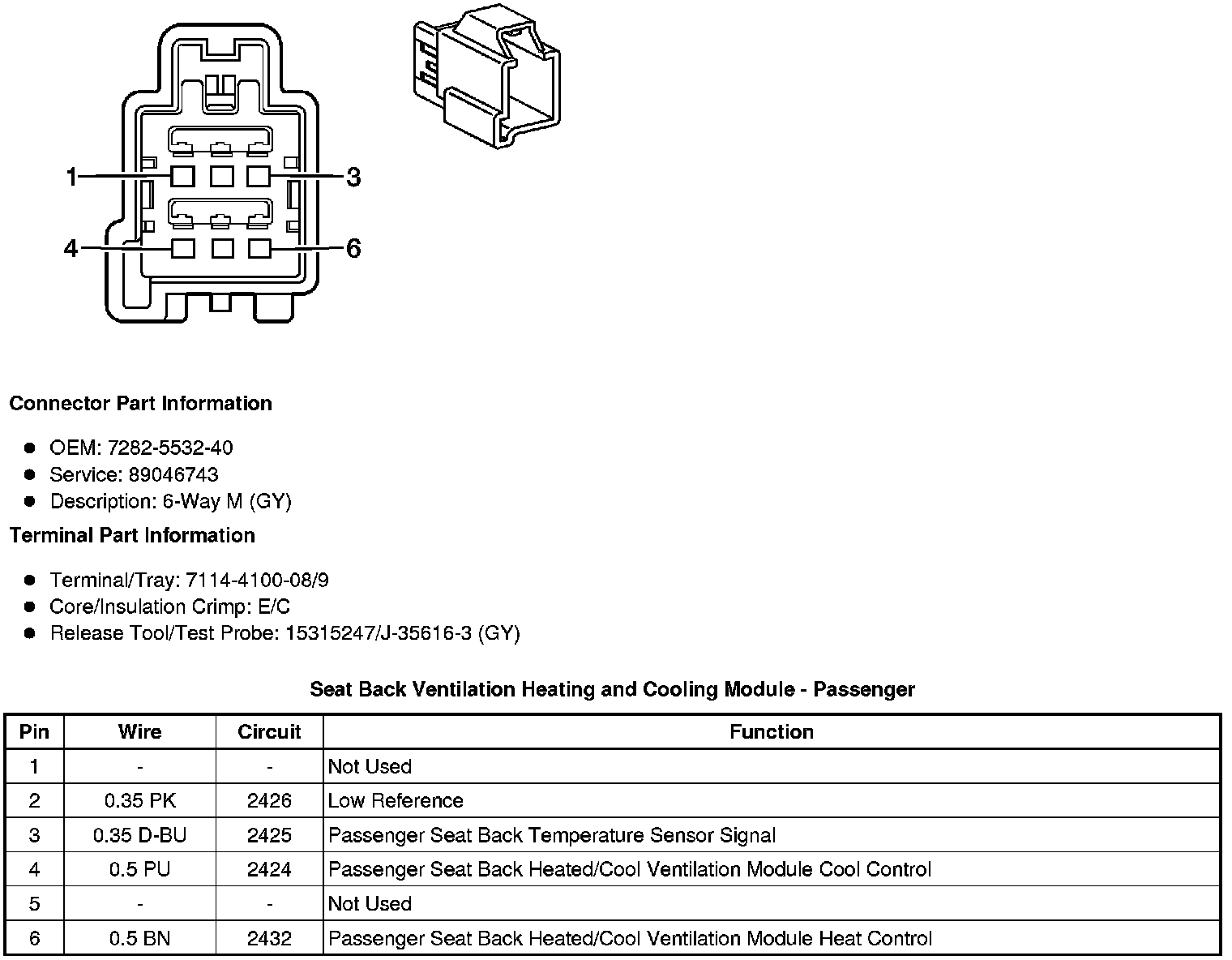

Component Connector End Views
Seat Back Ventilation Heating and Cooling Module - Passenger
