Tightening Torques & Sequences

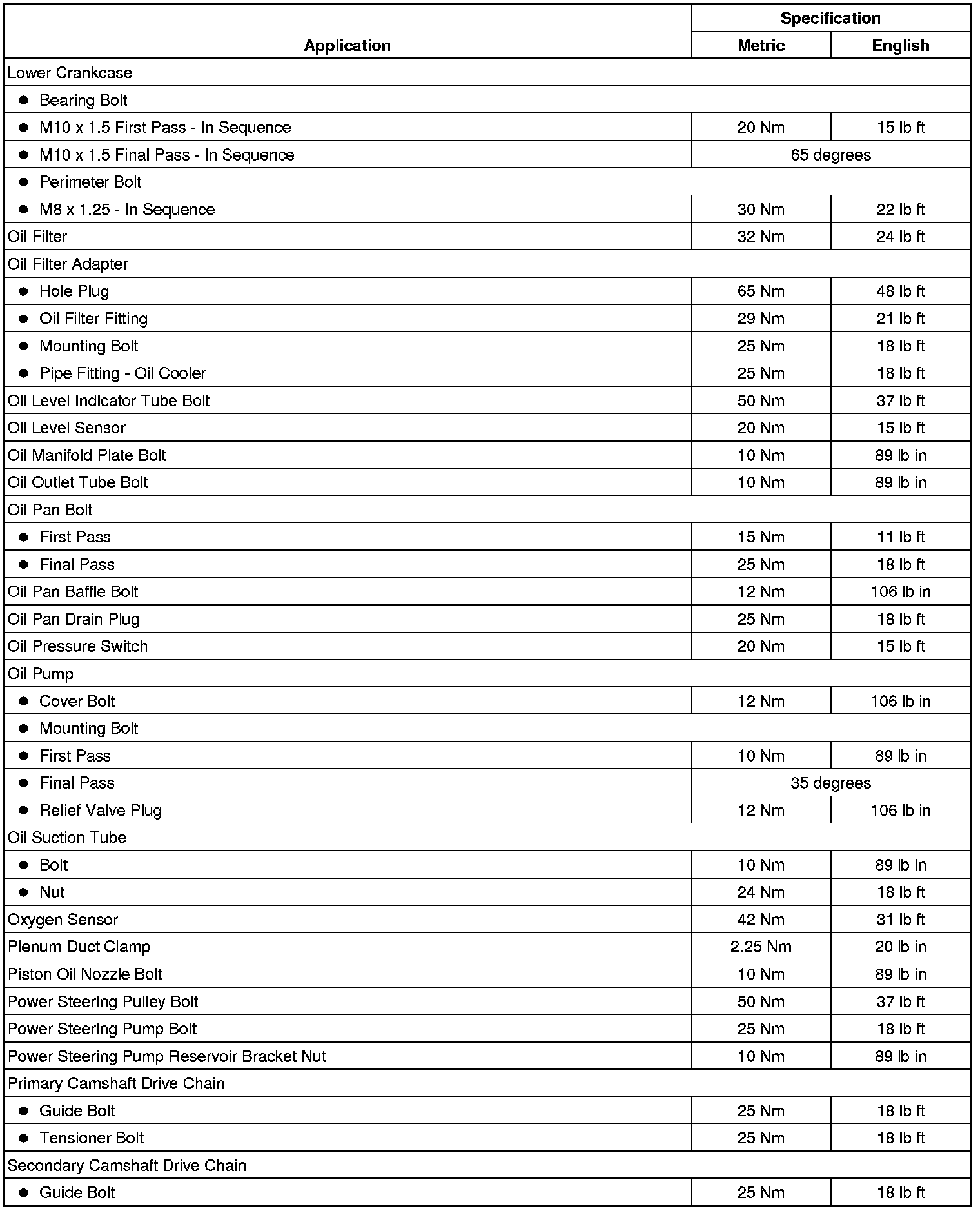

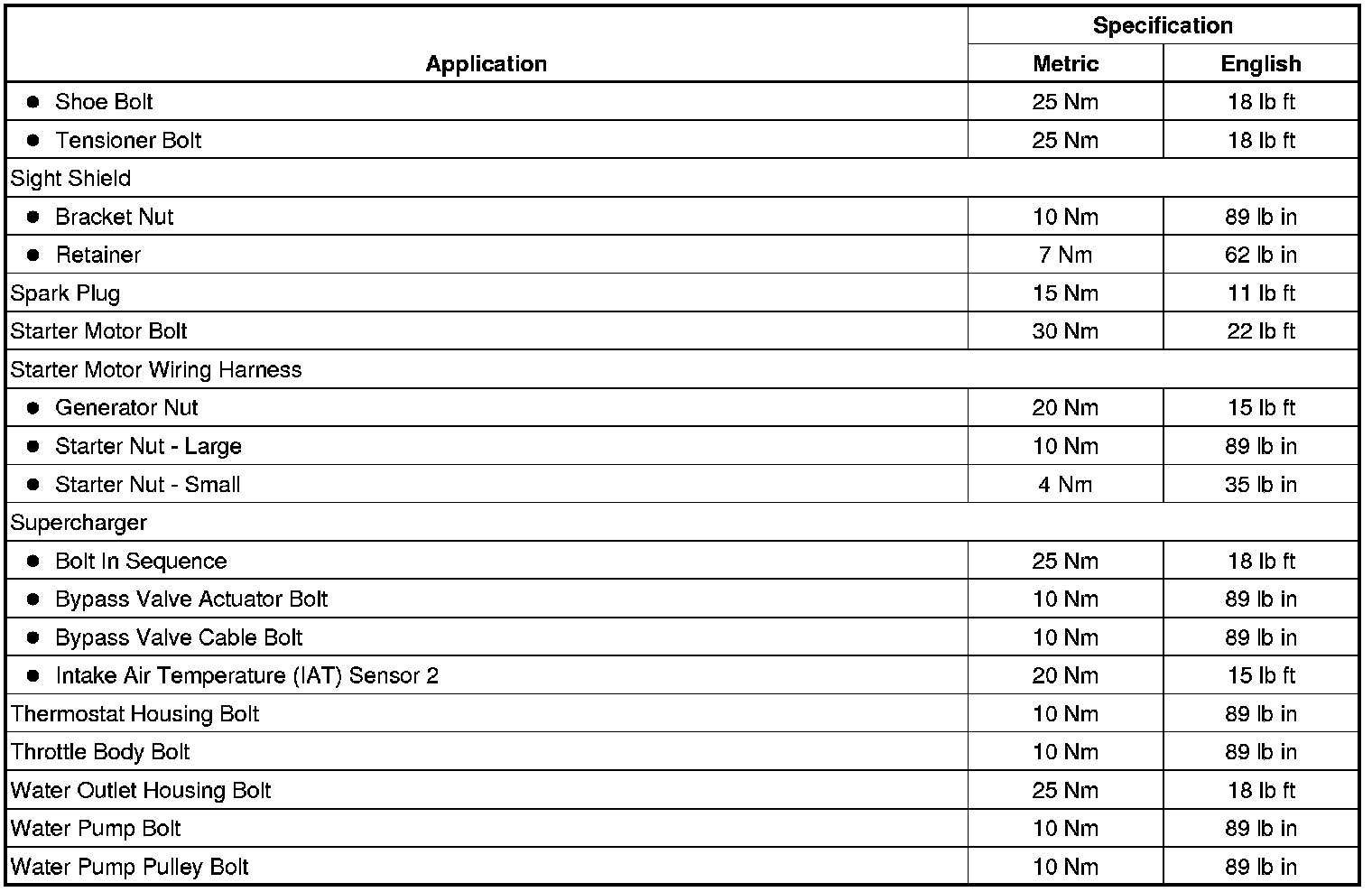

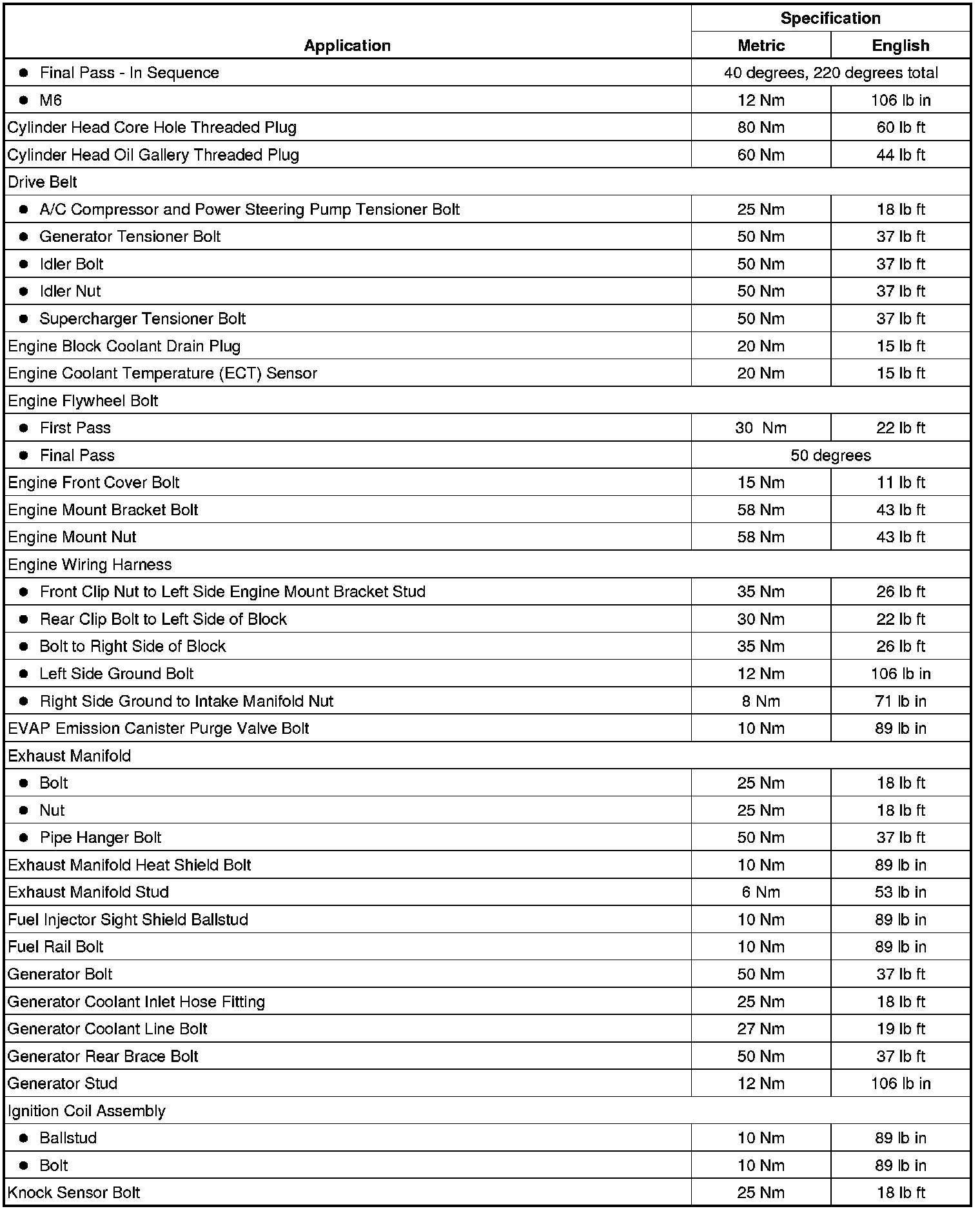

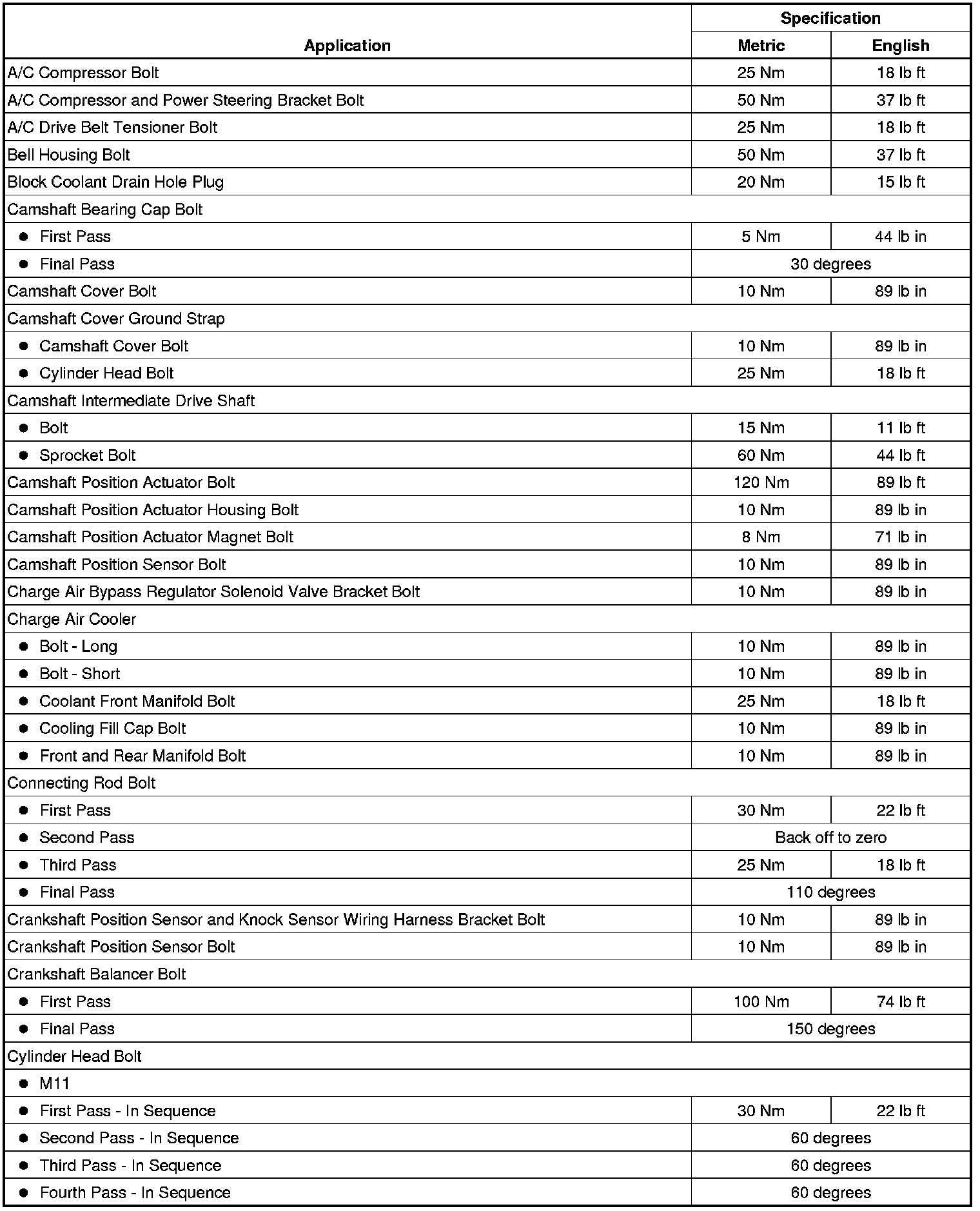

Fastener Tightening Specifications
Cylinder Head Bolt
DO NOT reuse the old M11 cylinder head bolts
Install new M11 cylinder head bolts in the cylinder head
Flex Plate Bolts 50 Nm (37 lb ft).
Fastener Tightening Specifications
Cylinder Head Bolt
DO NOT reuse the old M11 cylinder head bolts
Install new M11 cylinder head bolts in the cylinder head
Flex Plate Bolts 50 Nm (37 lb ft).
