Seat Temperature Control Module
>>
Seat Back Ventilation Heating and Cooling Module - Driver
Seat Back Ventilation Heating and Cooling Module - Driver

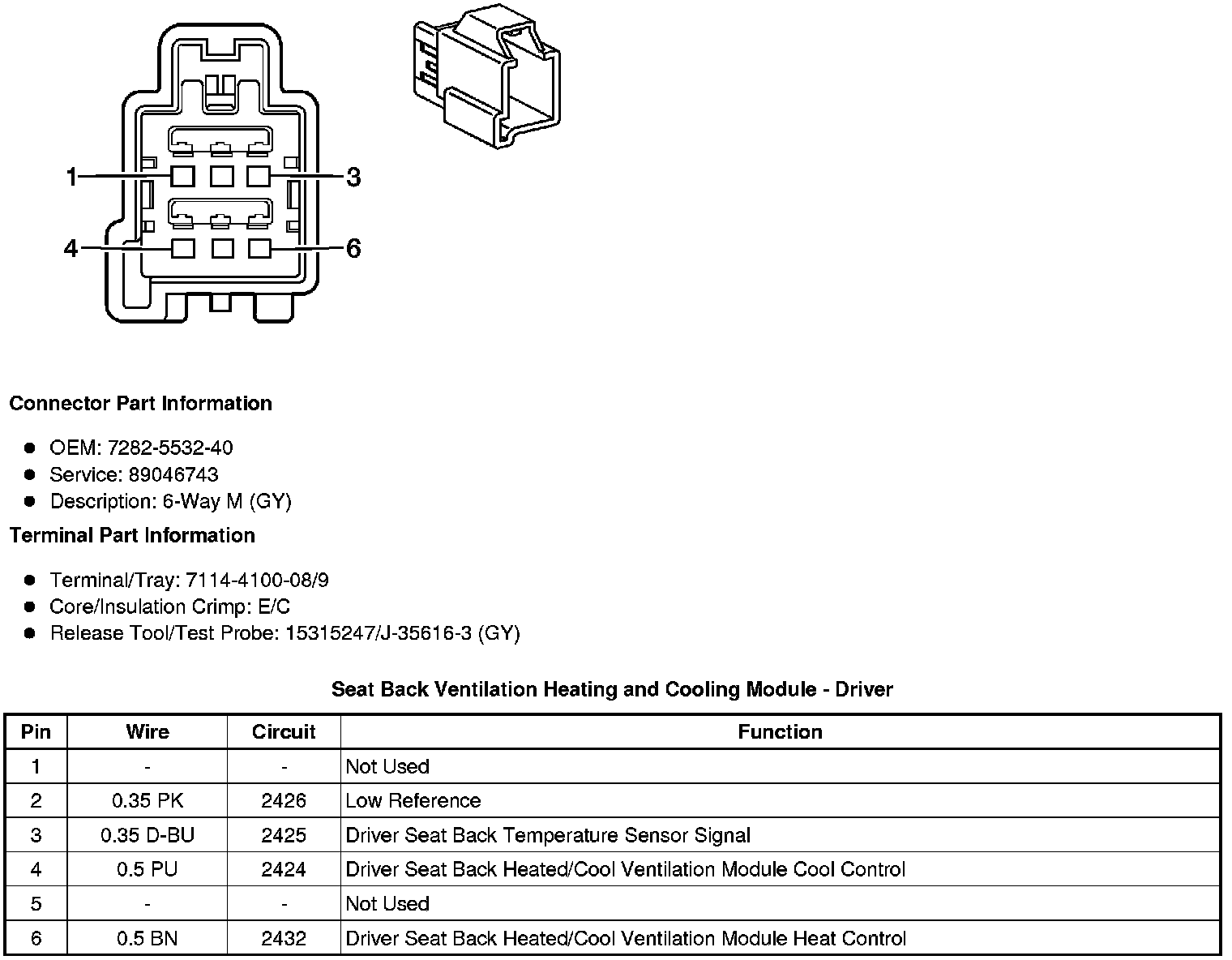

Component Connector End Views
Seat Back Ventilation Heating and Cooling Module - Driver
