Oxygen Sensor: Diagrams




Component Connector End Views

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1 (LC3 or LH2)

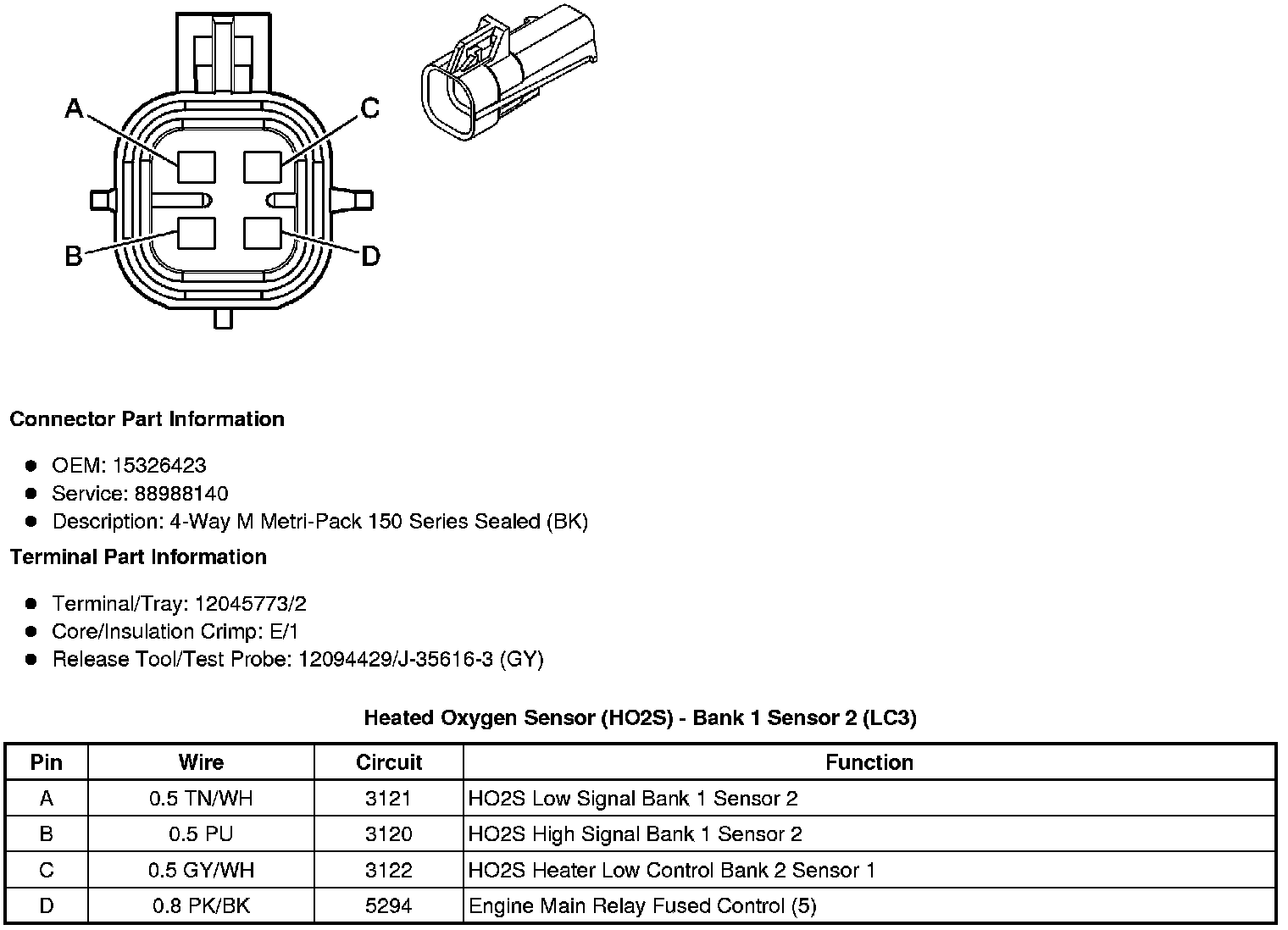

Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2 (LC3)

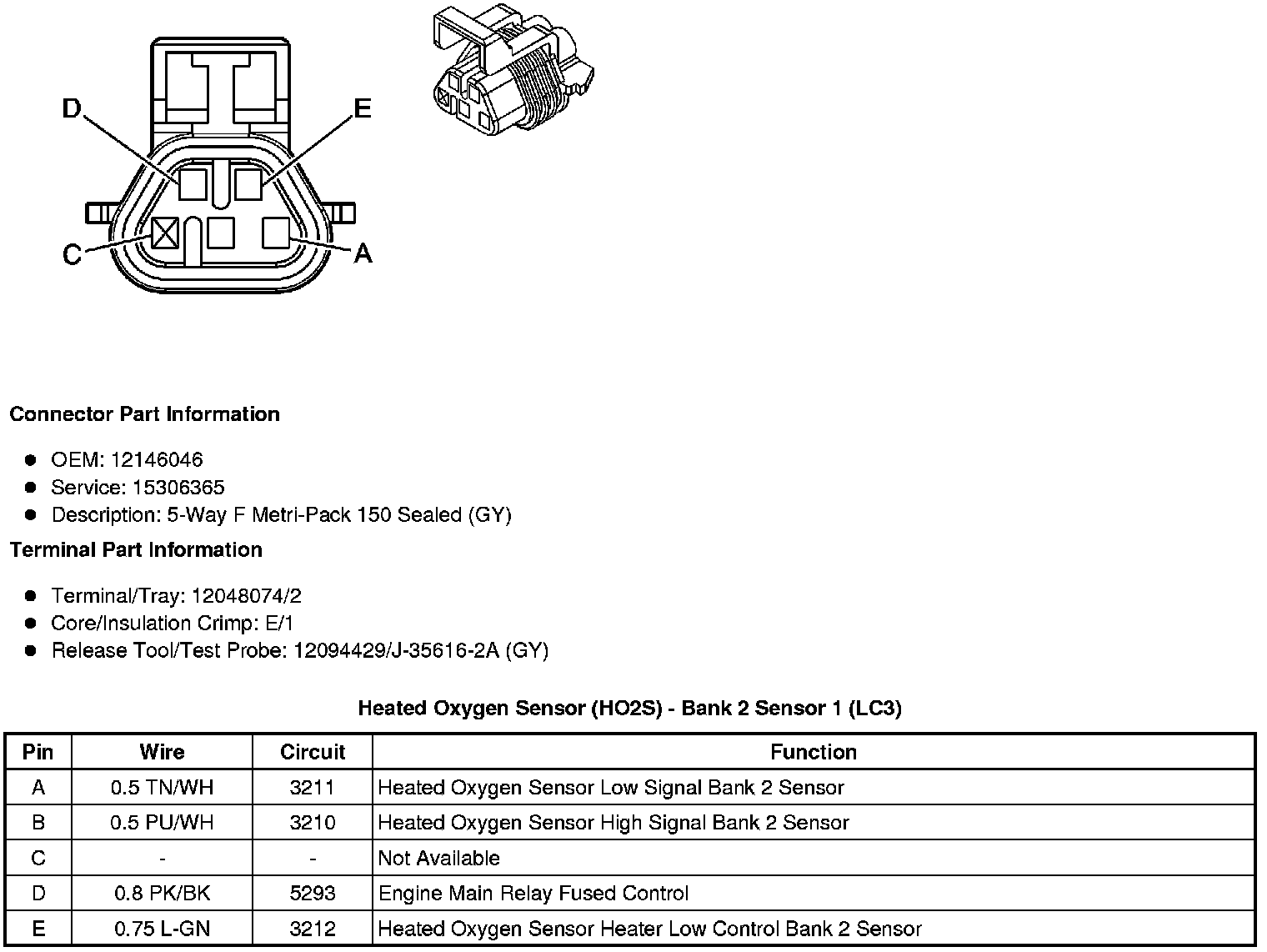

Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1 (LC3)






Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2 (LC3 or LH2)
