Trunk / Liftgate Switch




Component Connector End Views

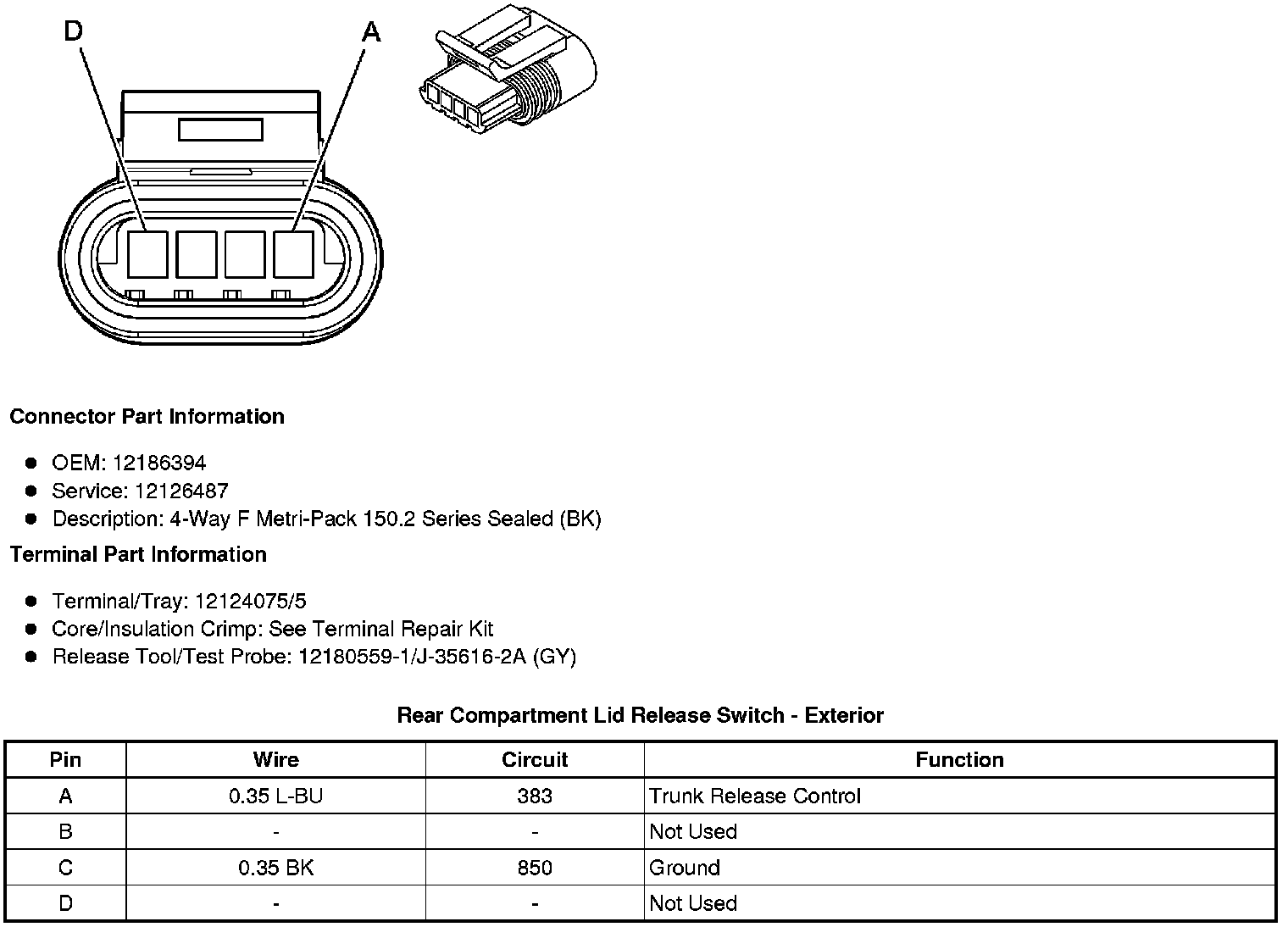

Rear Compartment Lid Release Switch - Exterior

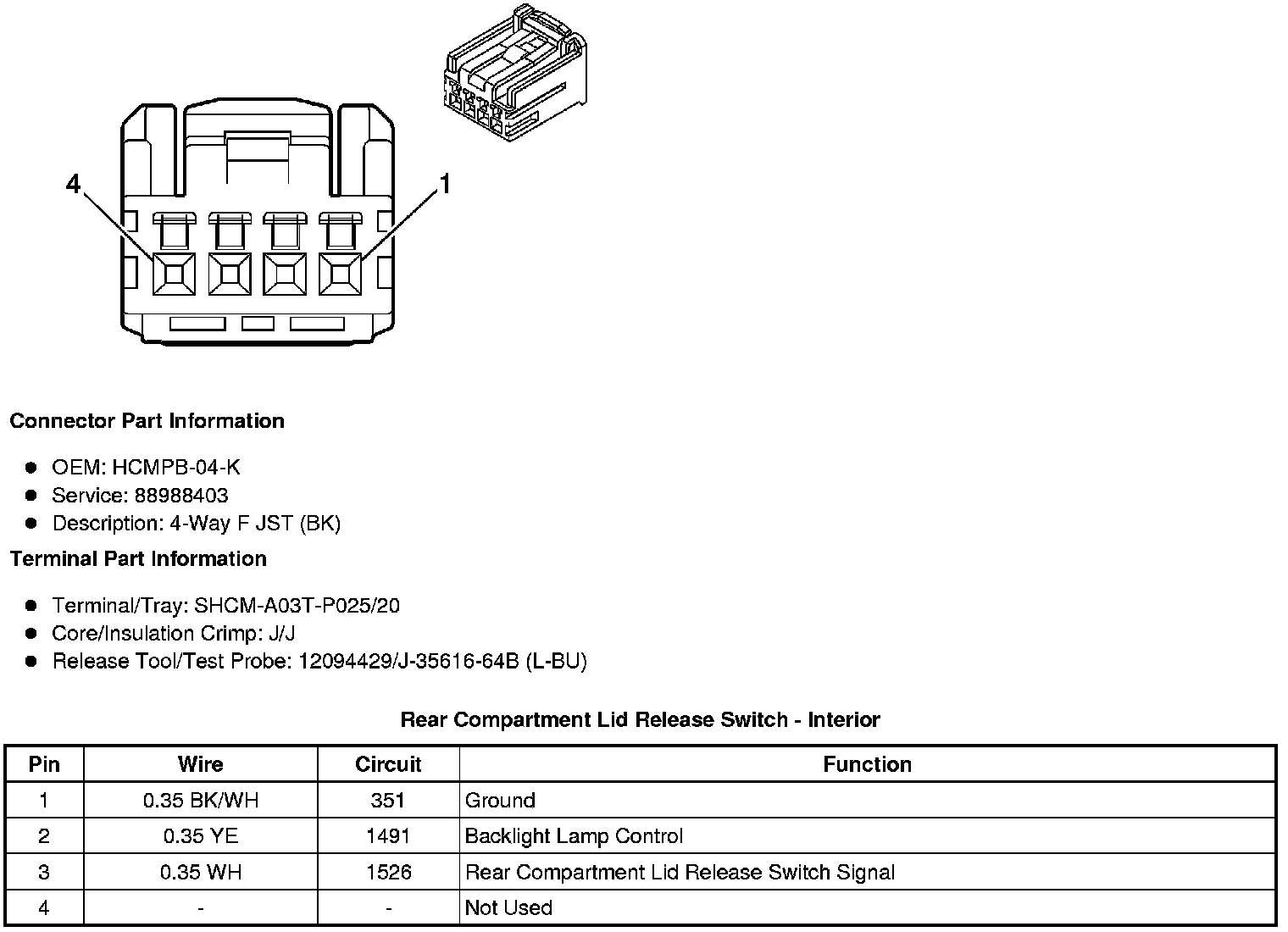

Rear Compartment Lid Release Switch - Interior
