Home >> Cadillac >> 2009 >> STS RWD V8-4.4L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Telescoping Wheel Switch

Telescoping Wheel Switch

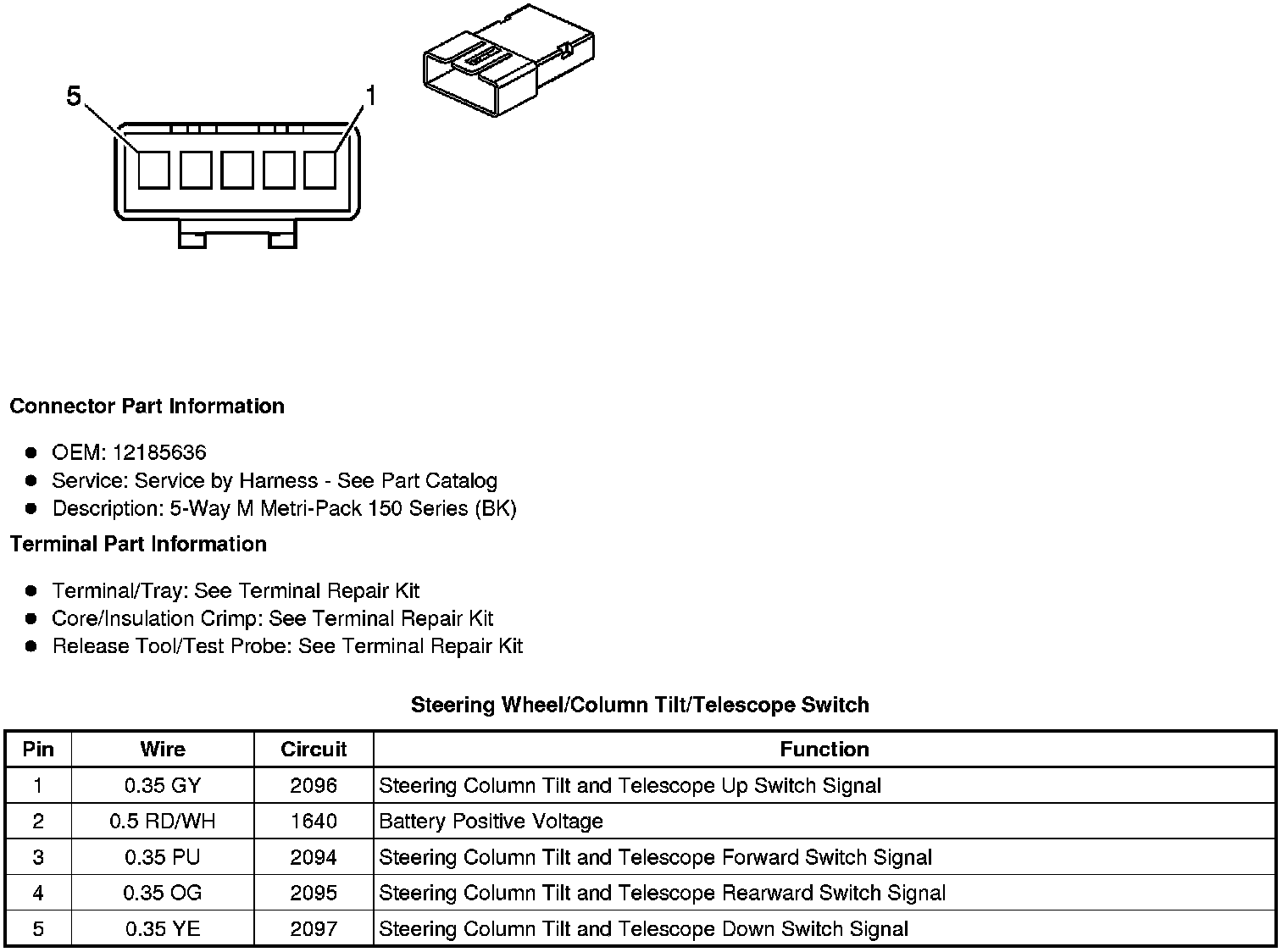

Component Connector End Views

Steering Wheel/Column Tilt/Telescope Switch

Steering Column Telescope Actuator
