Steering Column Lock




Component Connector End Views

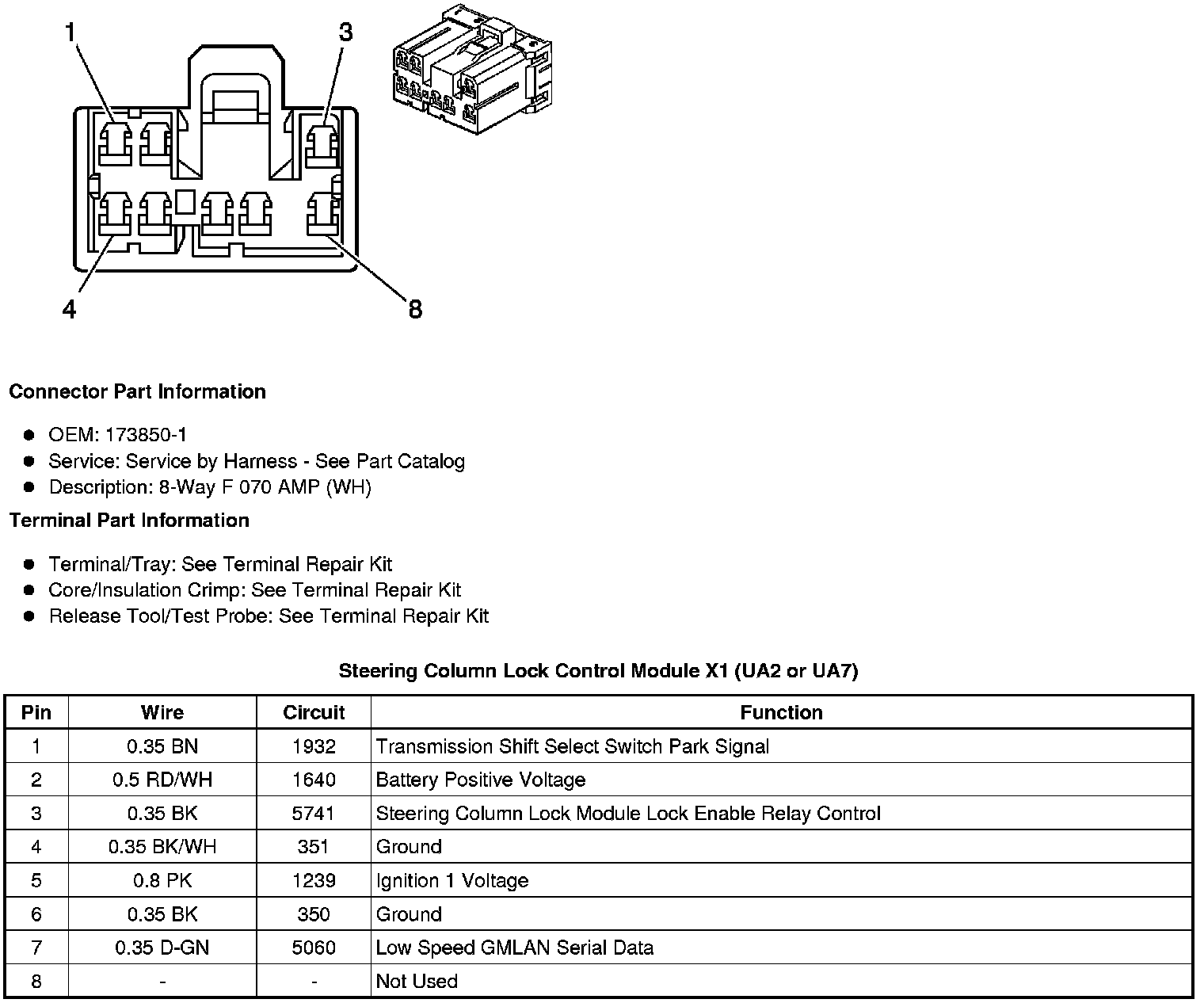

Steering Column Lock Control Module X1 (UA2 or UA7)






Steering Column Lock Control Module X2 (UA2 or UA7)
