Home >> Cadillac >> 2009 >> STS RWD V8-4.4L SC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch

Power Window Switch




Component Connector End Views

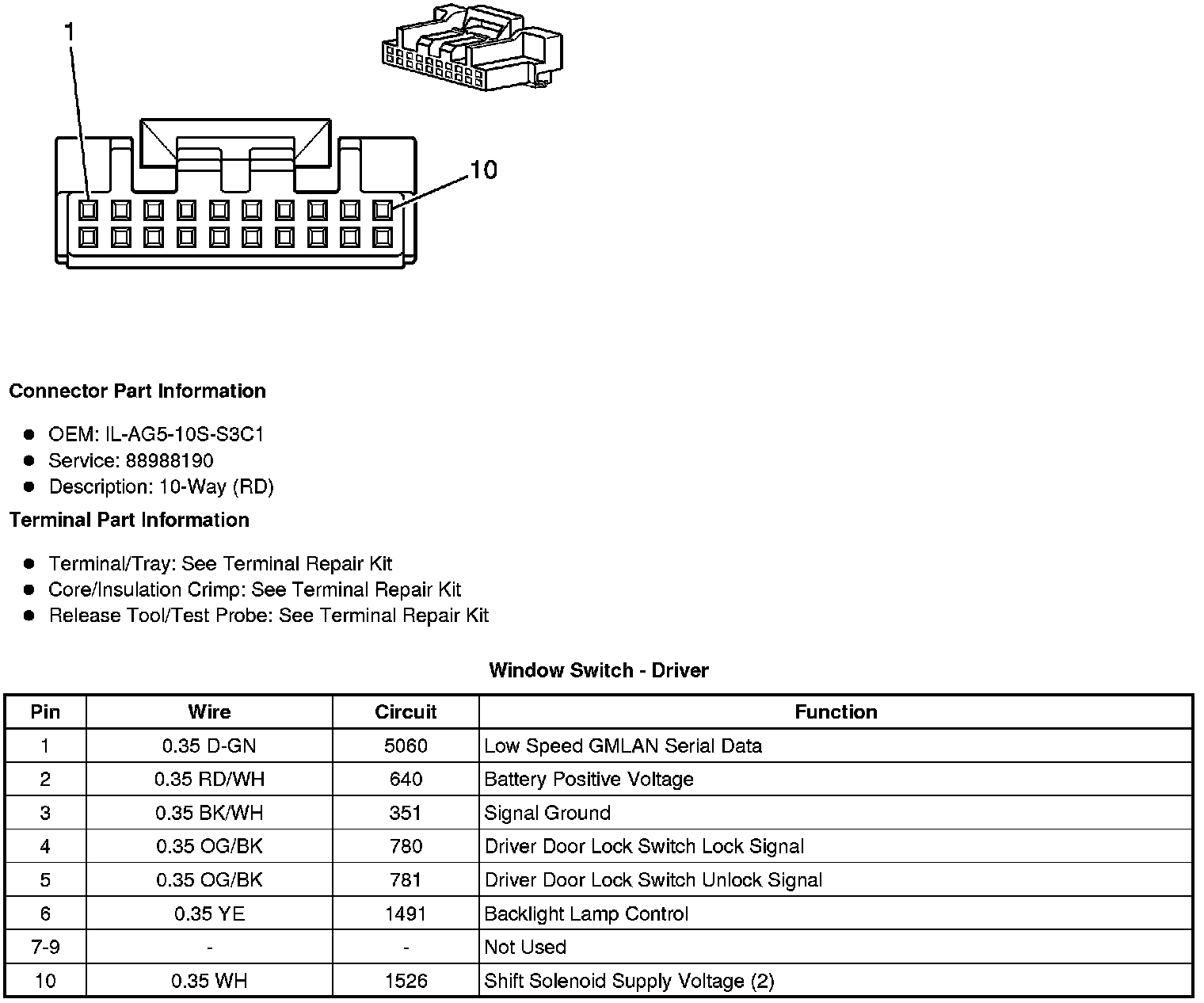

Window Switch - Driver

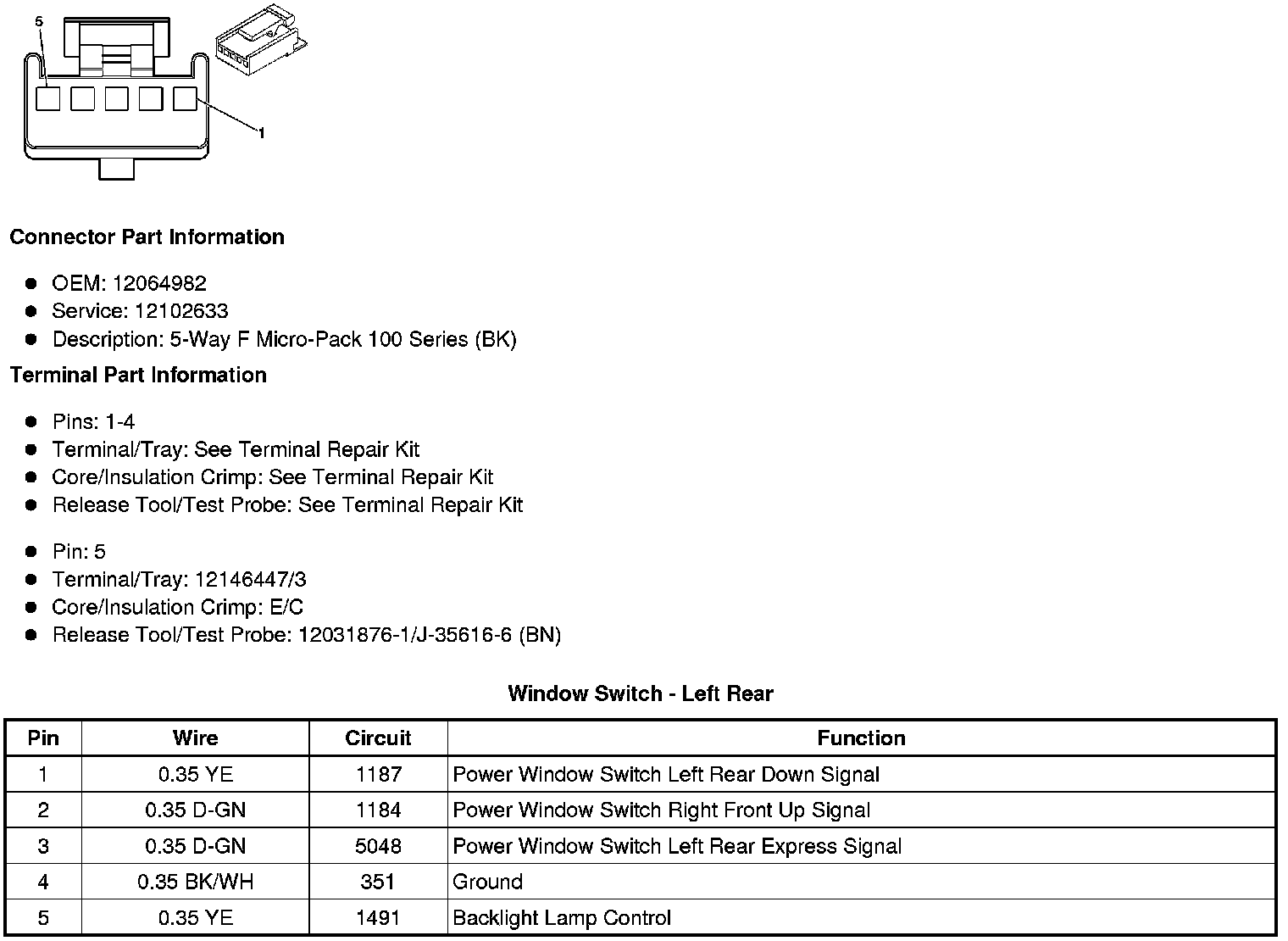

Window Switch - Left Rear






Window Switch - Passenger

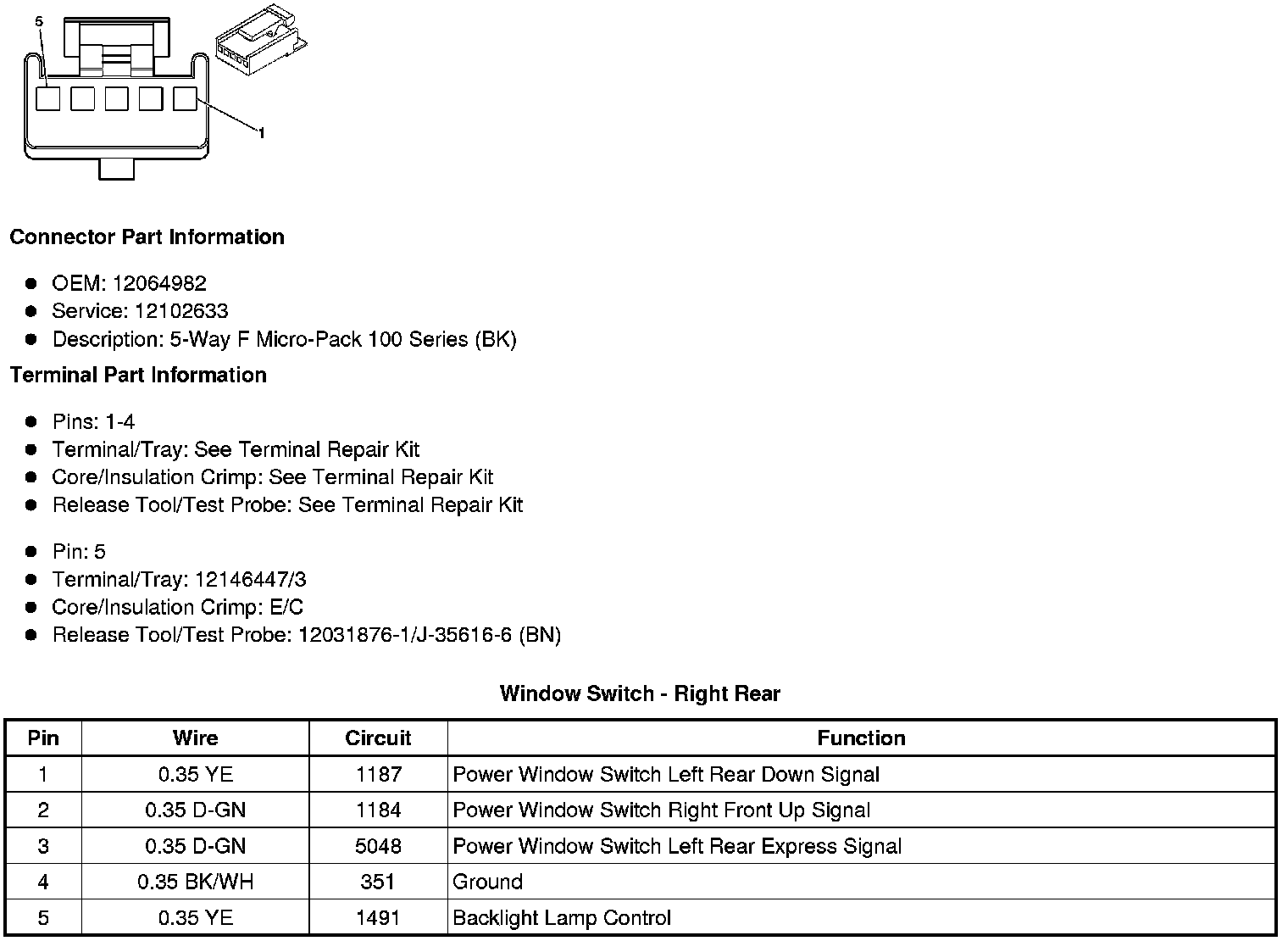

Window Switch - Right Rear
