Cadillac
>>
2009
>>
STS RWD V8-4.4L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Pedal Positioning Sensor
Pedal Positioning Sensor

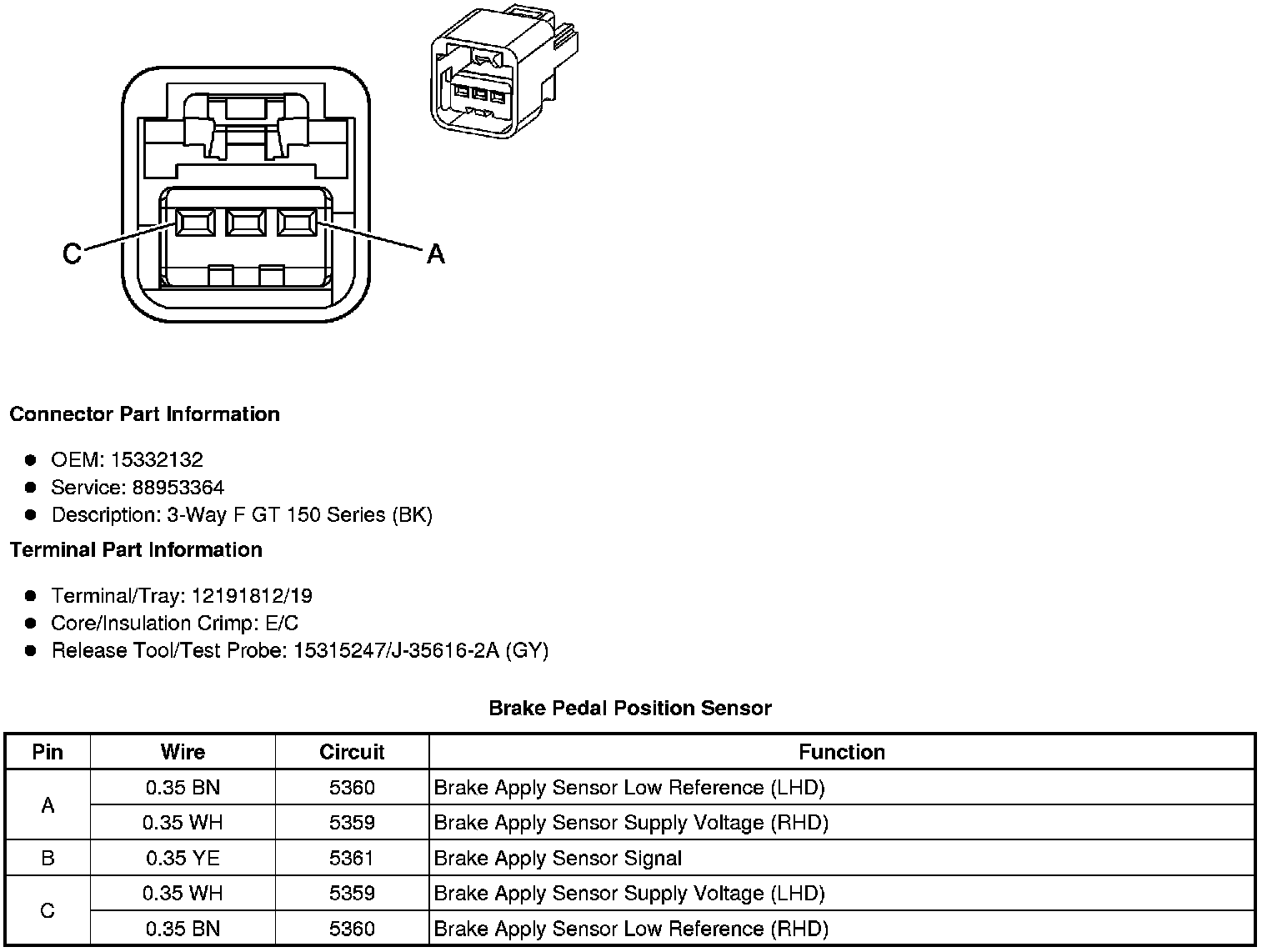

Component Connector End Views
Brake Pedal Position Sensor
