Fuel Injector




Component Connector End Views

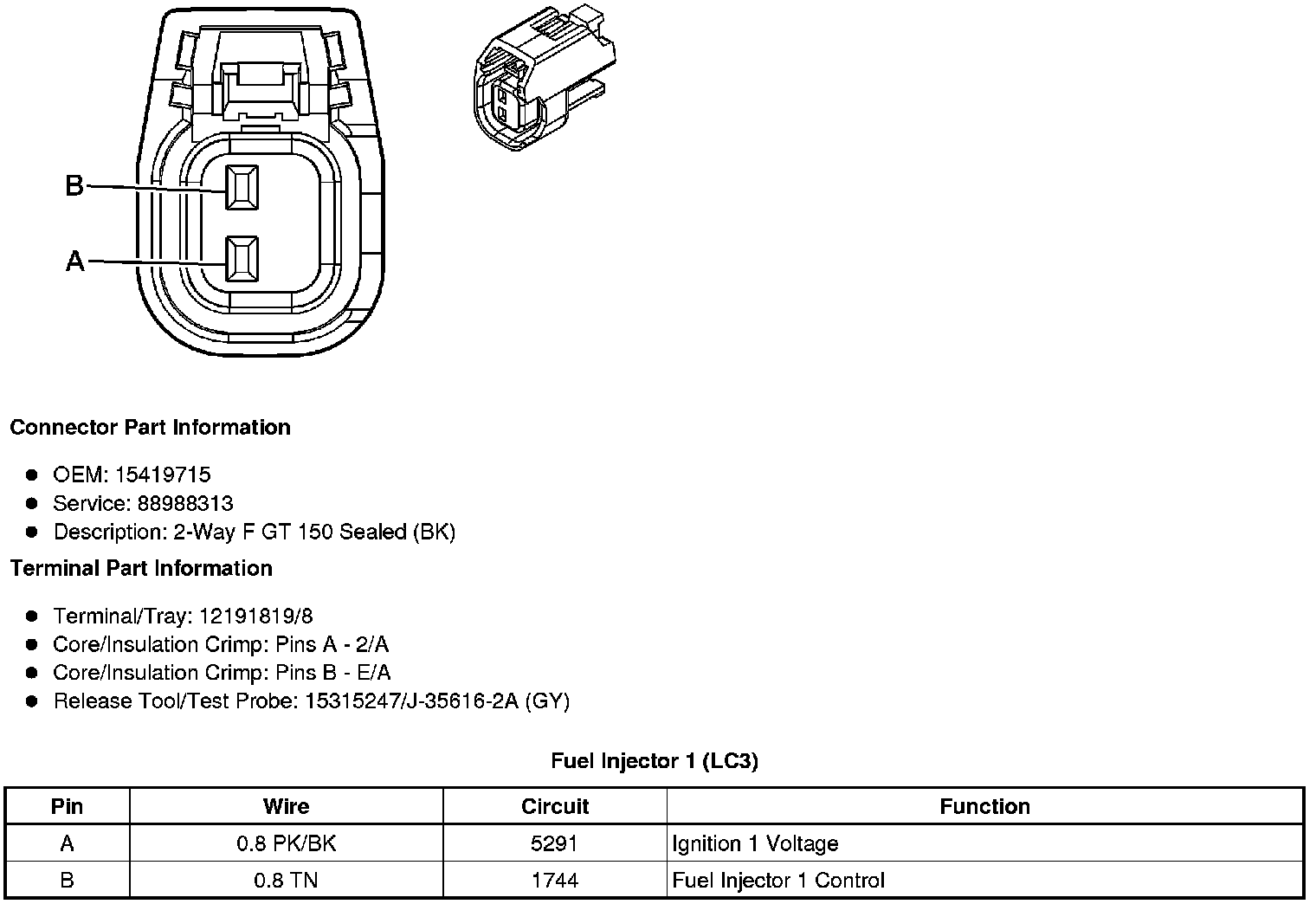

Fuel Injector 1 (LC3)

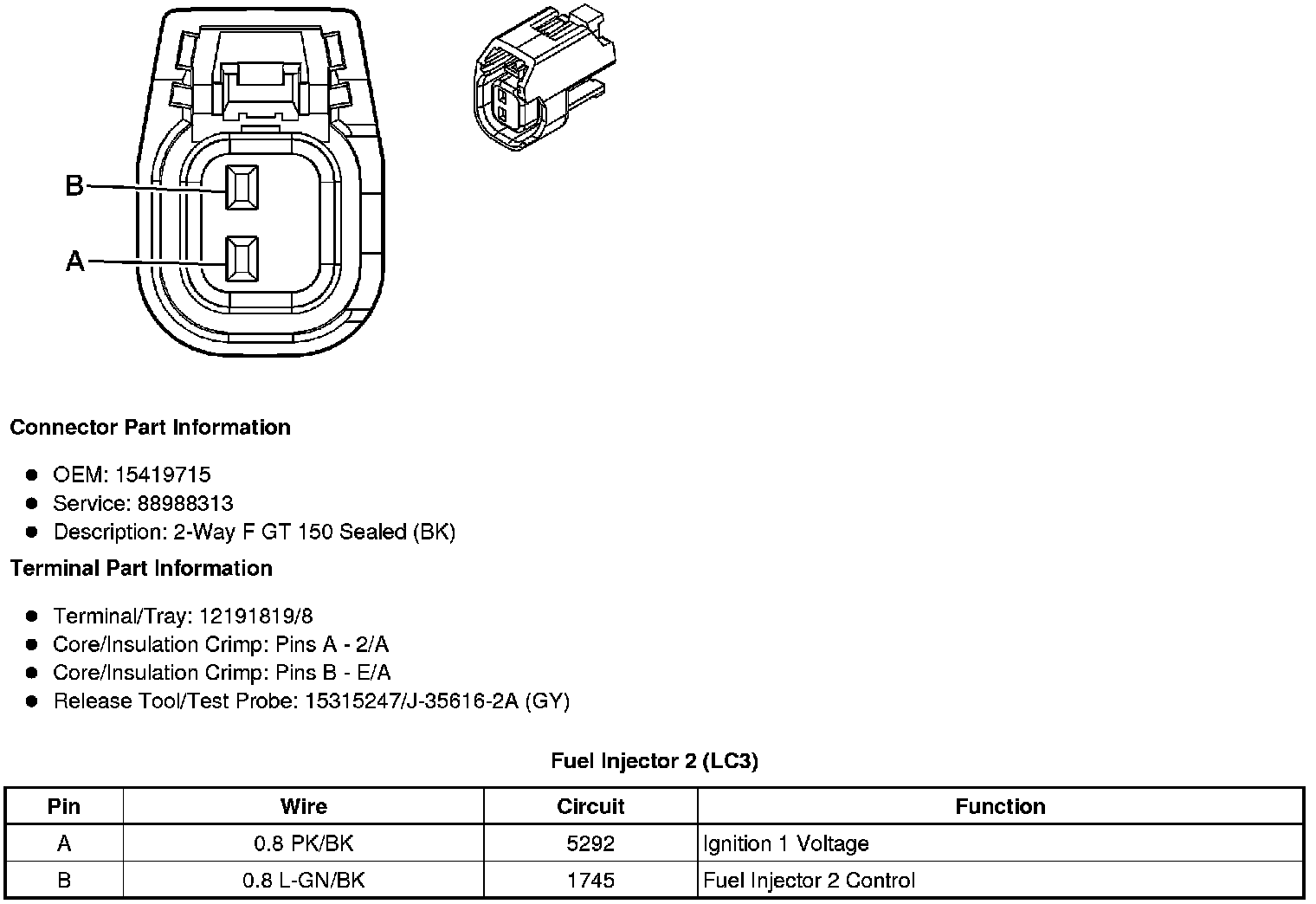

Fuel Injector 2 (LC3)






Fuel Injector 3 (LC3)






Fuel Injector 4 (LC3)

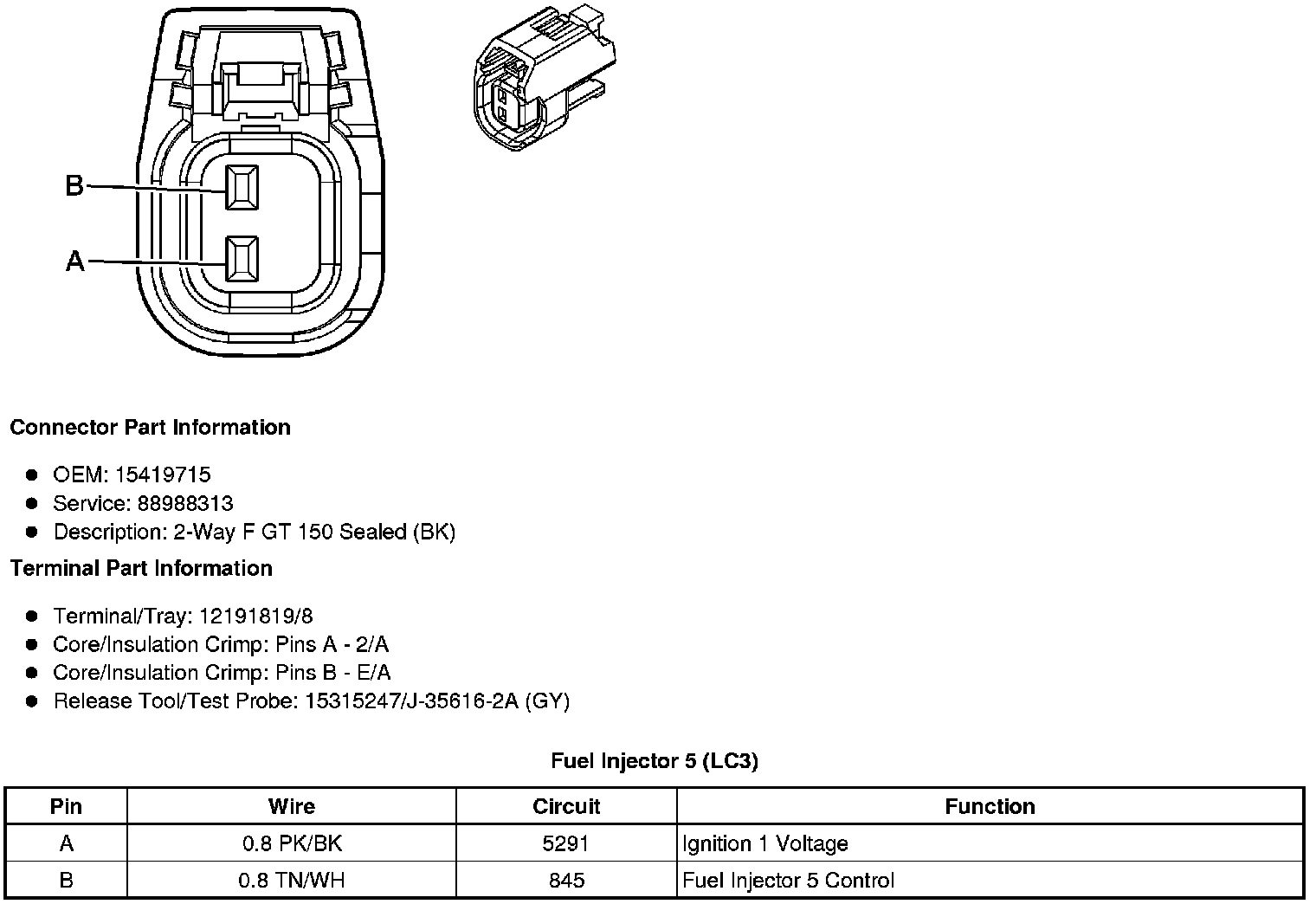

Fuel Injector 5 (LC3)






Fuel Injector 6 (LC3)






Fuel Injector 7 (LC3)






Fuel Injector 8 (LC3)
