LEMON Manuals
: Even more car manuals for everyone
Home
>>
Cadillac
>>
2009
>>
STS RWD V8-4.4L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Compressor/Pump, Suspension Control
Compressor/Pump, Suspension Control

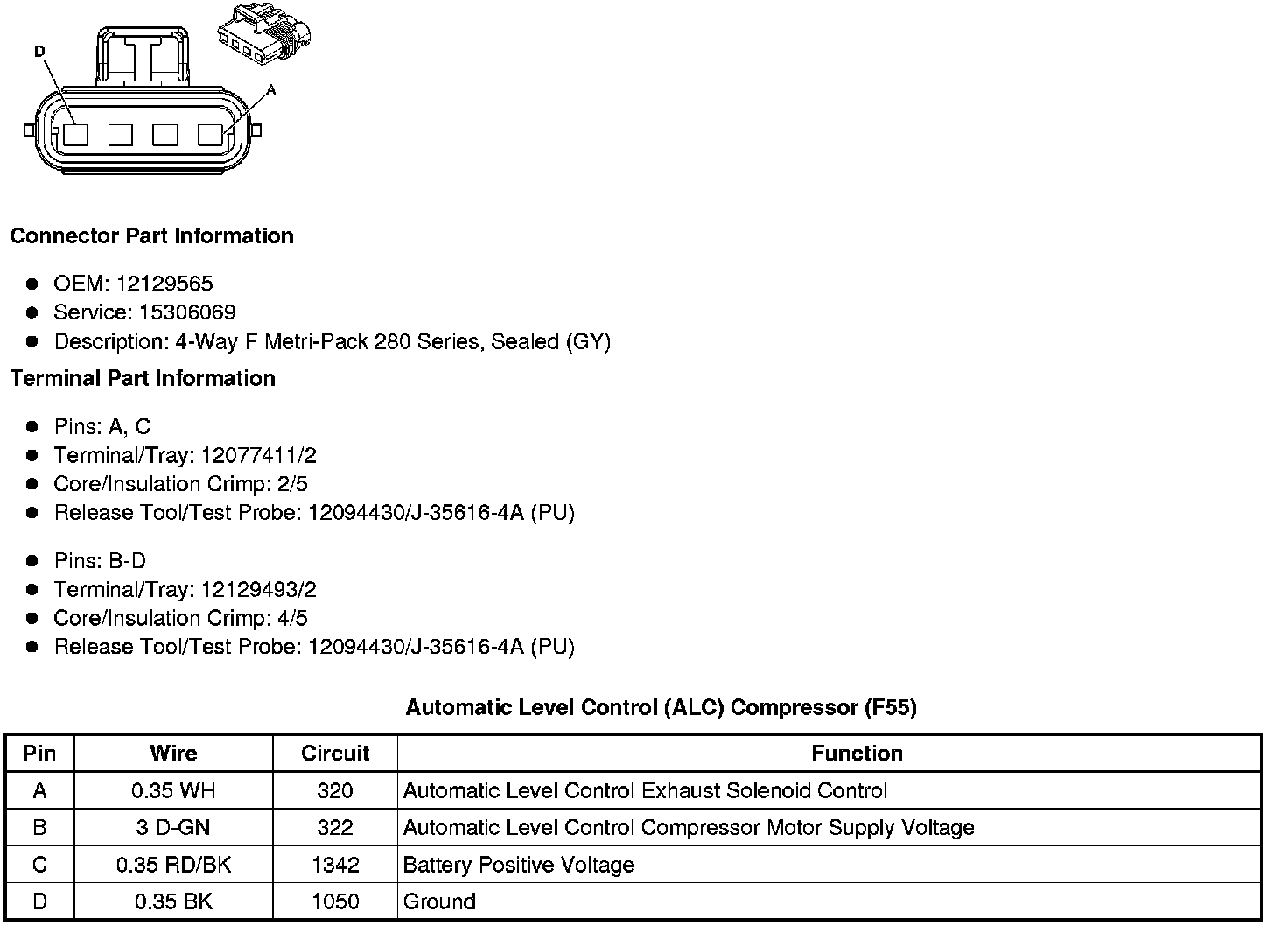

Component Connector End Views
Automatic Level Control (ALC) Compressor (F55)
