Fuel Pressure Sensor/Switch
Fuel Pressure Sensor/Switch

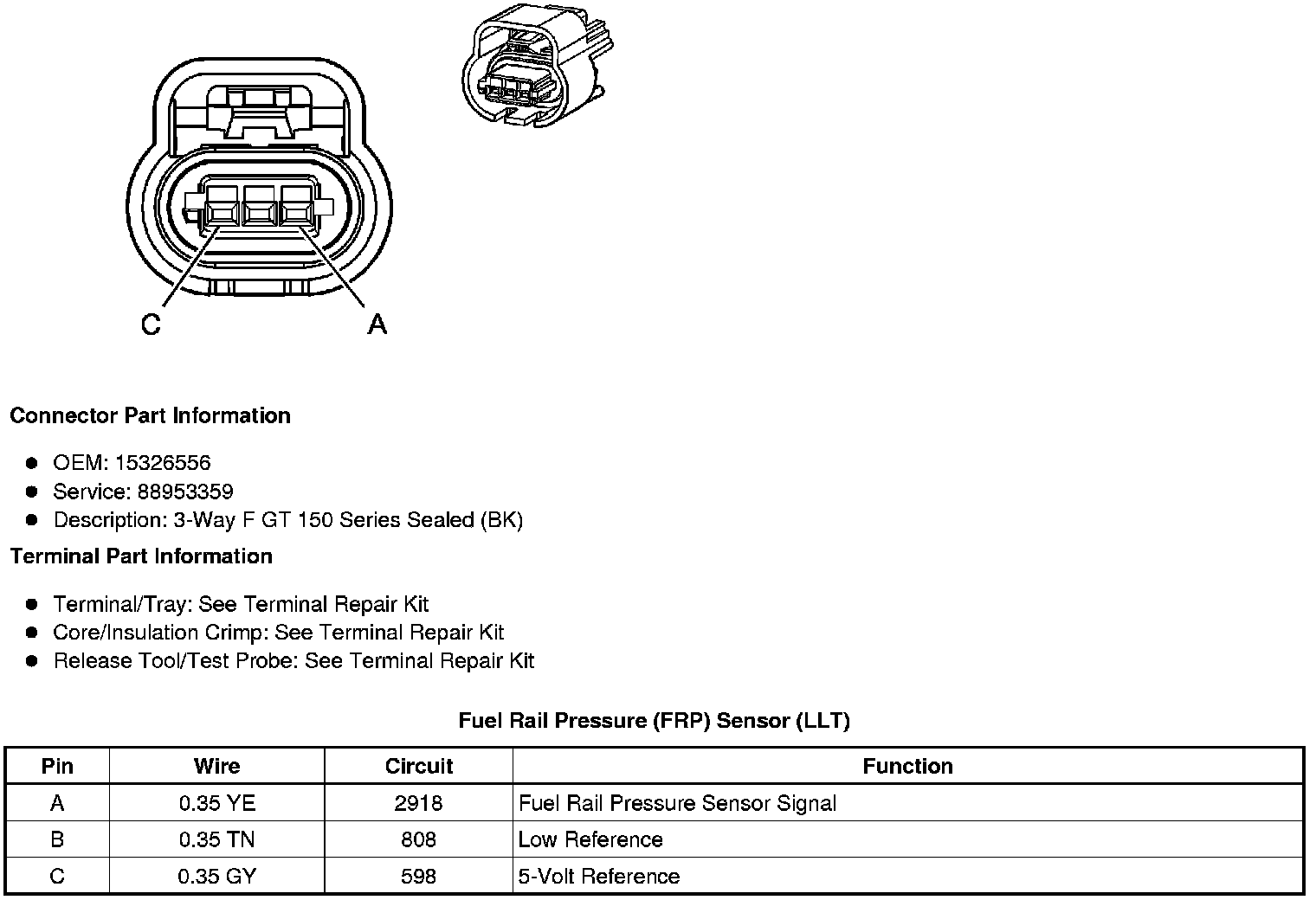

Component Connector End Views
Fuel Rail Pressure (FRP) Sensor (LLT)
