System Diagram




Component Connector End Views

Door Lock Indicator - Driver

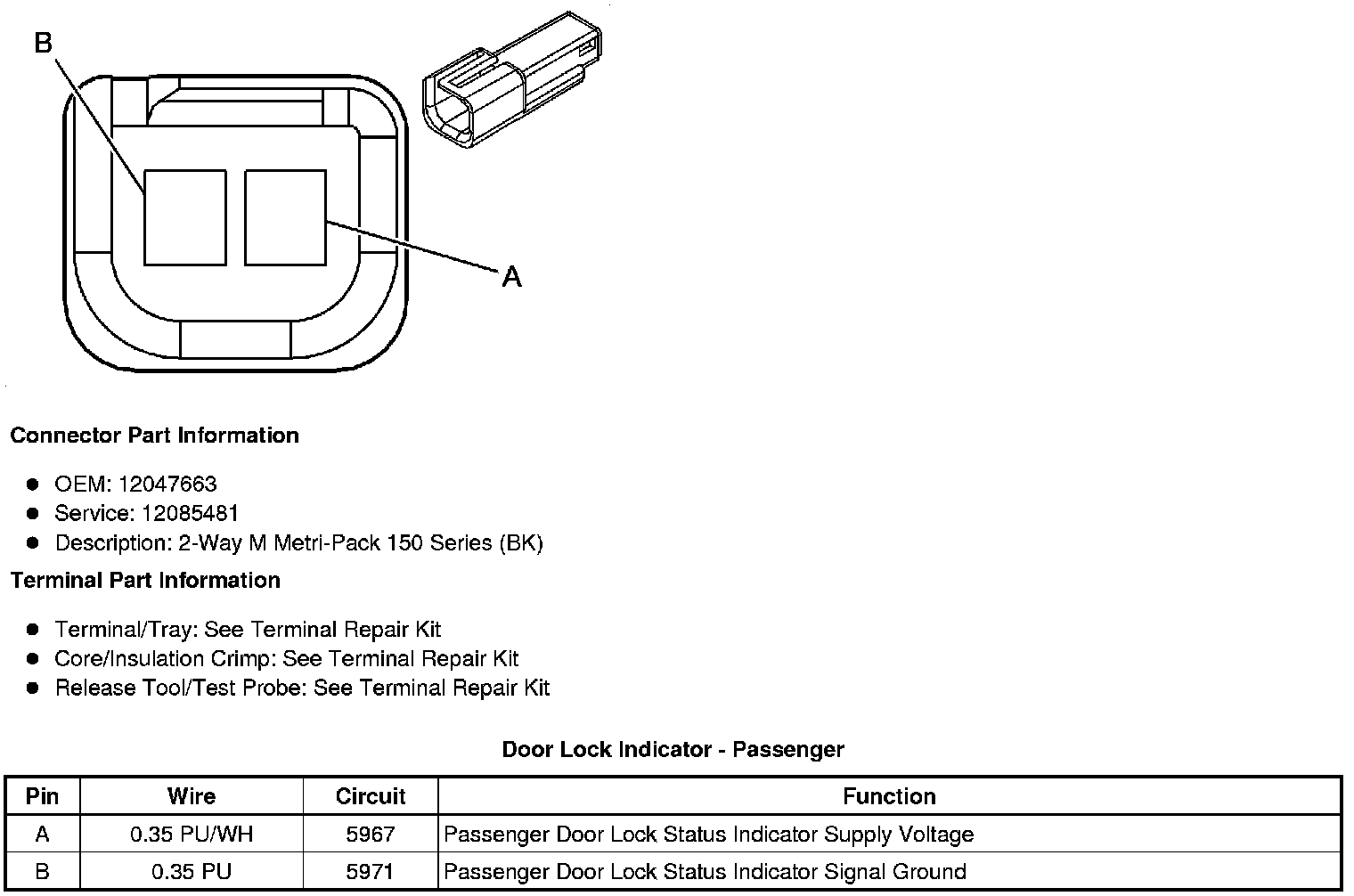

Door Lock Indicator - Passenger
