Home >> Cadillac >> 2009 >> STS AWD V6-3.6L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Service and Repair

Fuse Block: Service and Repair

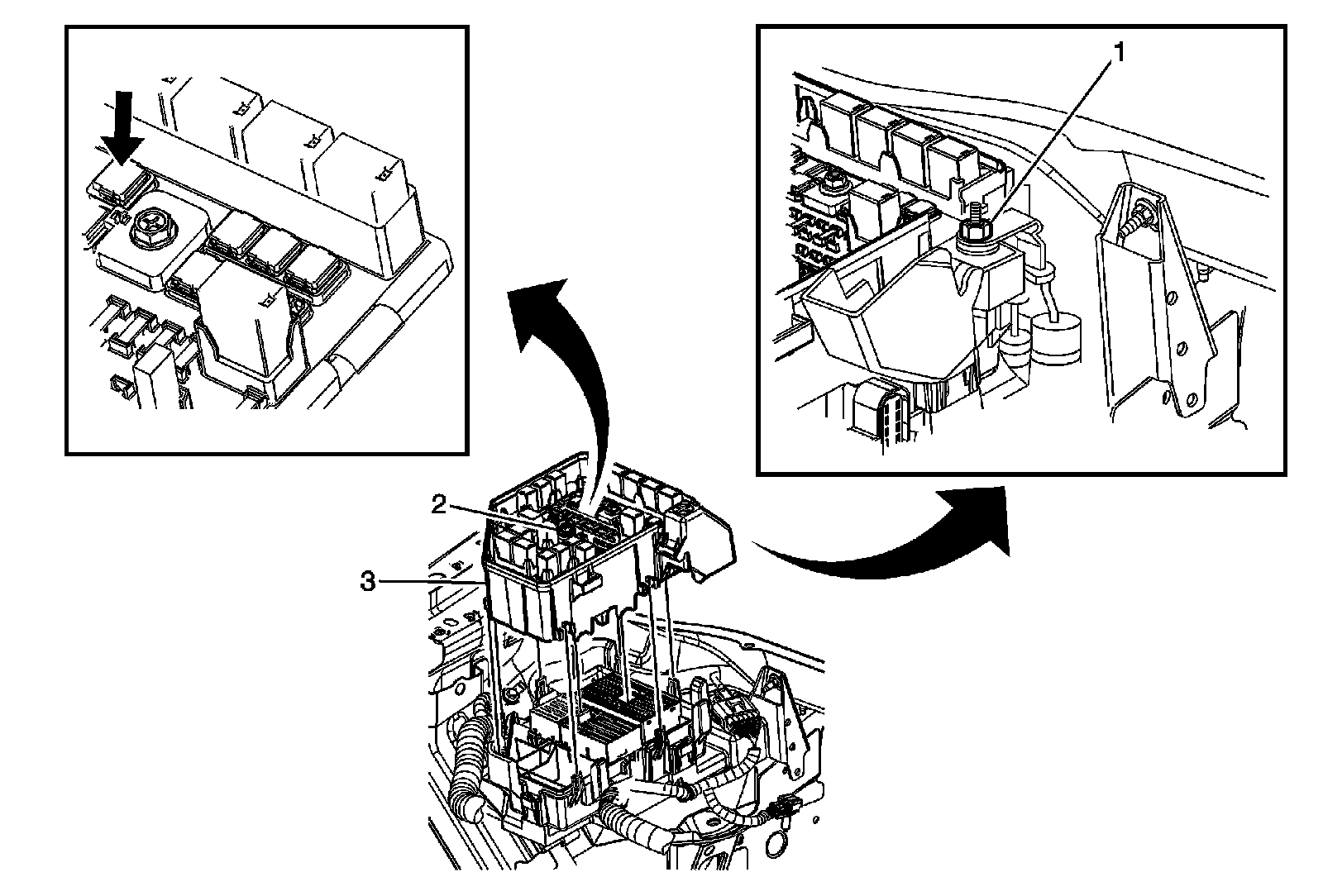

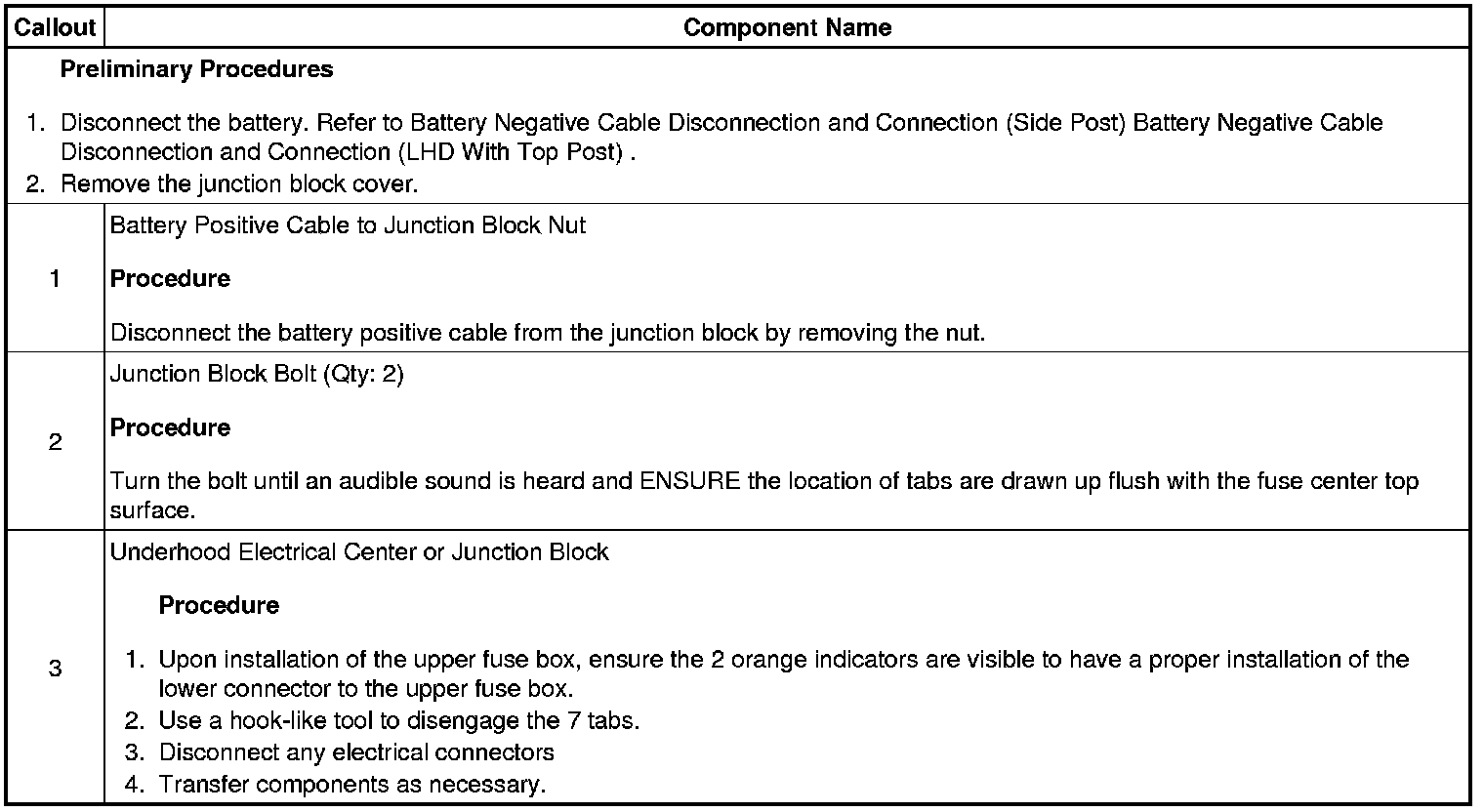

Underhood Electrical Center or Junction Block Replacement
