Keyless Entry




Remote Function Schematics

Garage Door Opener

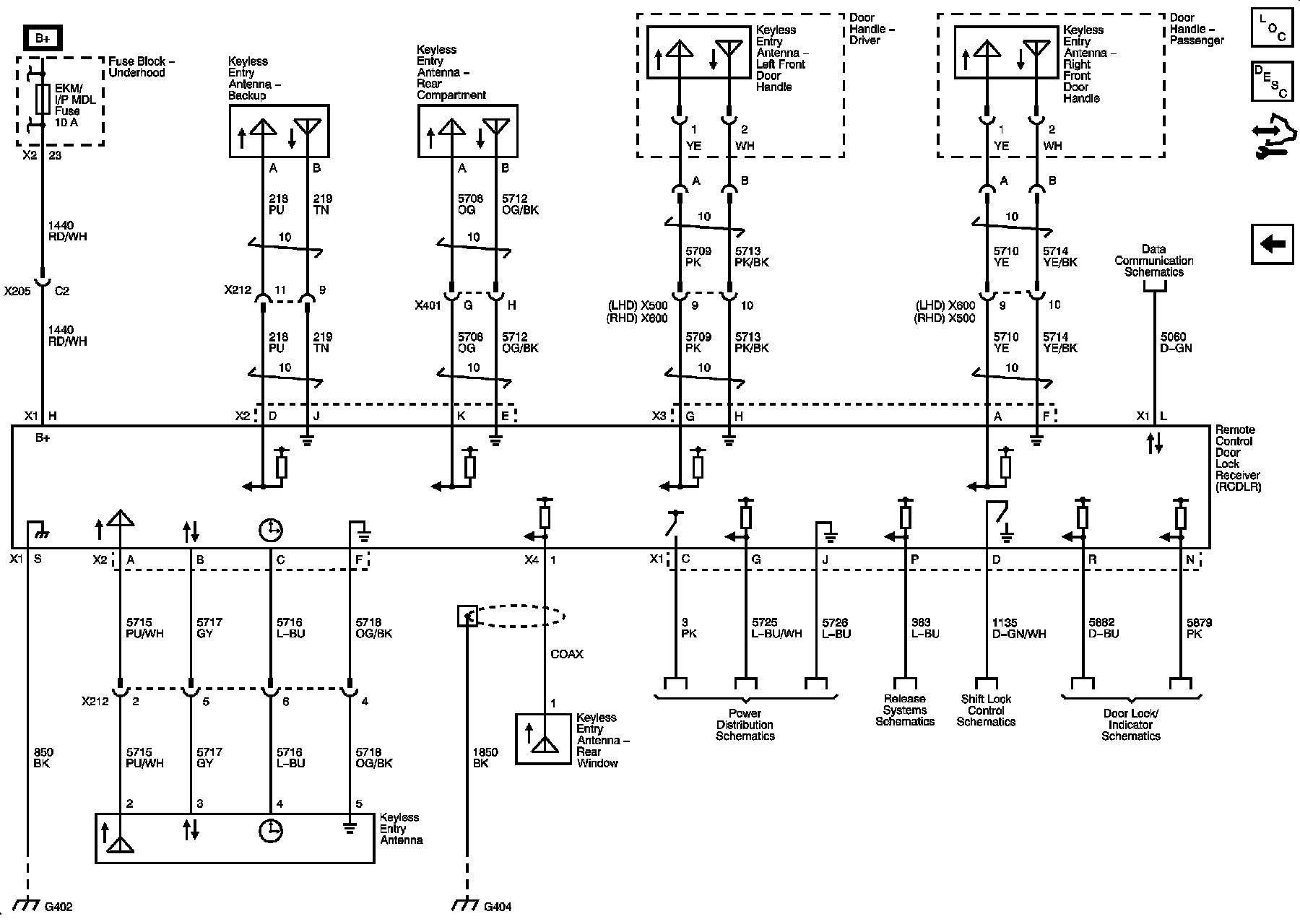

Keyless Entry Module Power, Grounds, Antennas and Switches
