Control Module: Diagrams

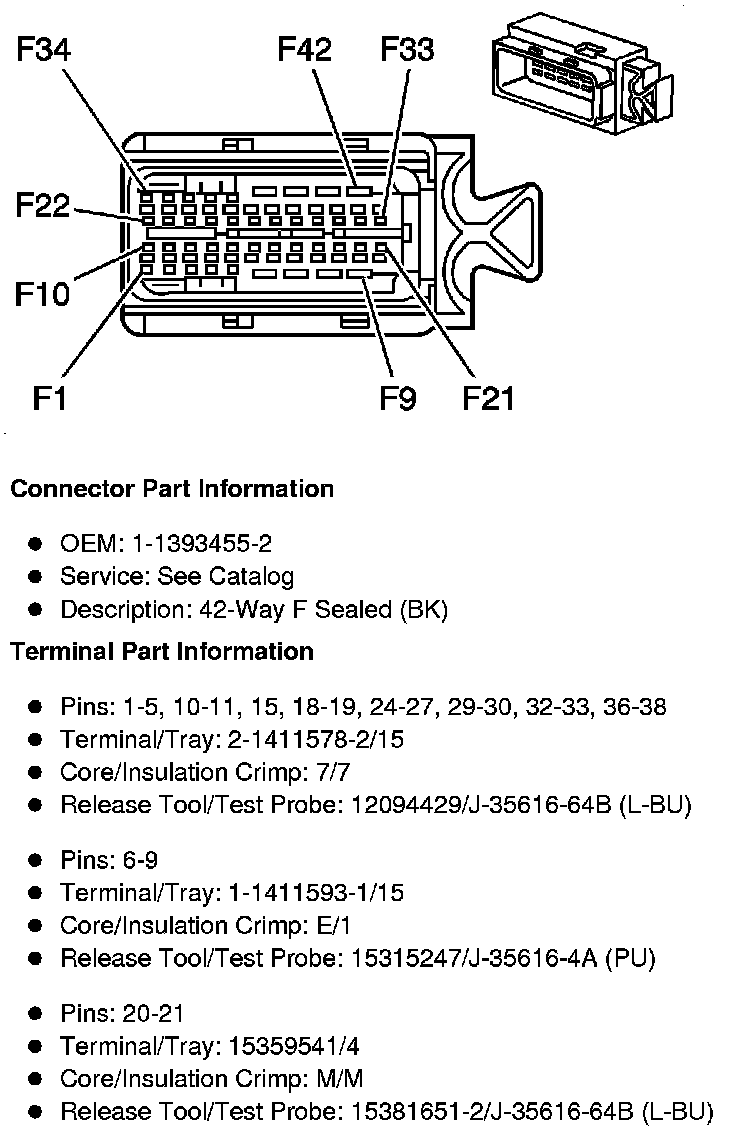

Component Connector End Views

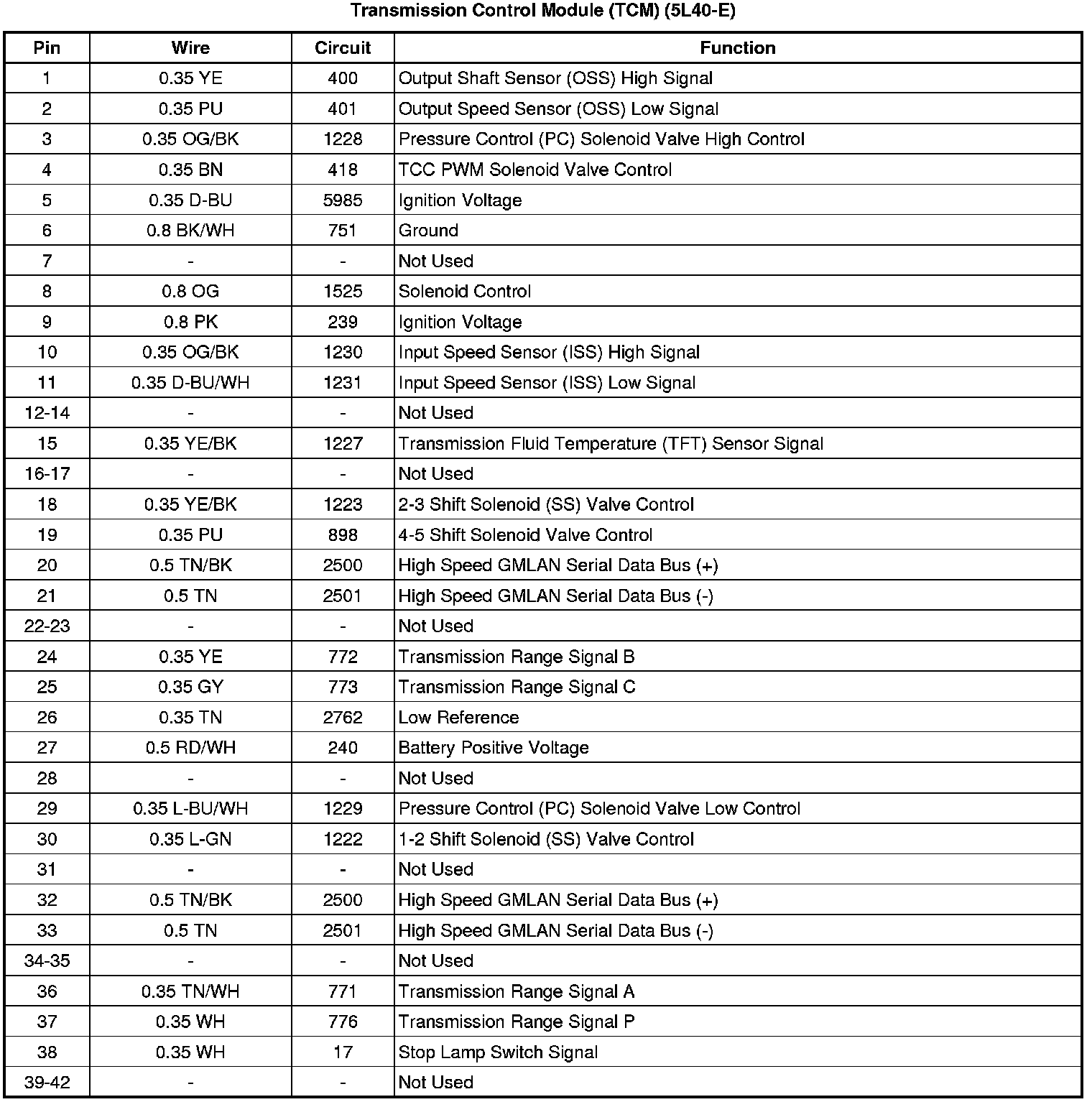

Transmission Control Module (TCM) (5L40-E/5L50-E)
