Power Seat Control Module: Diagrams
Component Connector End Views
Memory Seat Module (MSM) X1 (A45)
Memory Seat Module (MSM) X2 (A45)
Memory Seat Module (MSM) X3 (A45)
Memory Seat Module (MSM) X4 (A45)
Memory Seat Module (MSM) X5 (A45)
Memory Seat Module (MSM) X6 (A45)
Memory Seat Module (MSM) X7 (A45)
Rear Seat Control Module X1 (AM0)

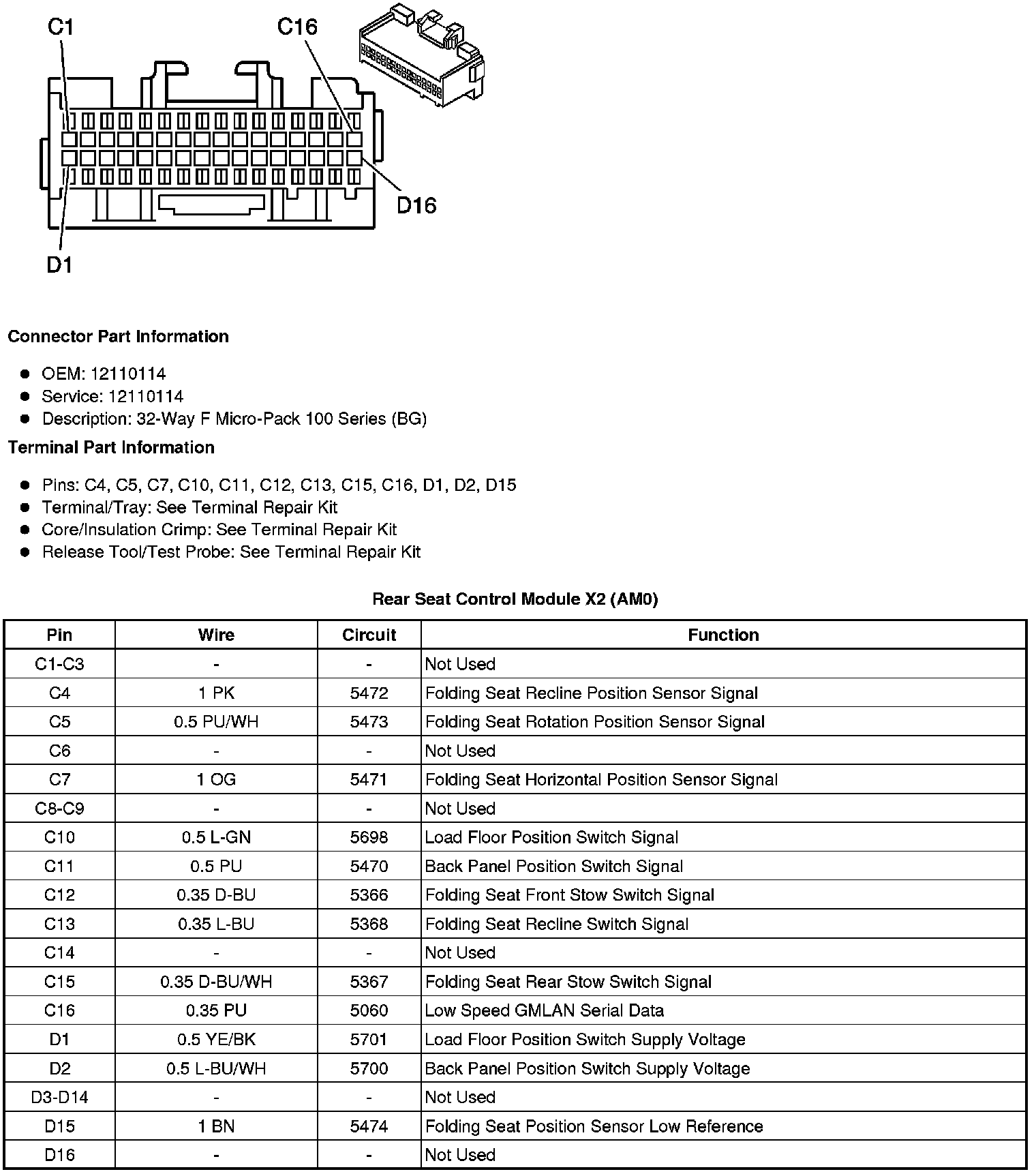

Rear Seat Control Module X2 (AM0)

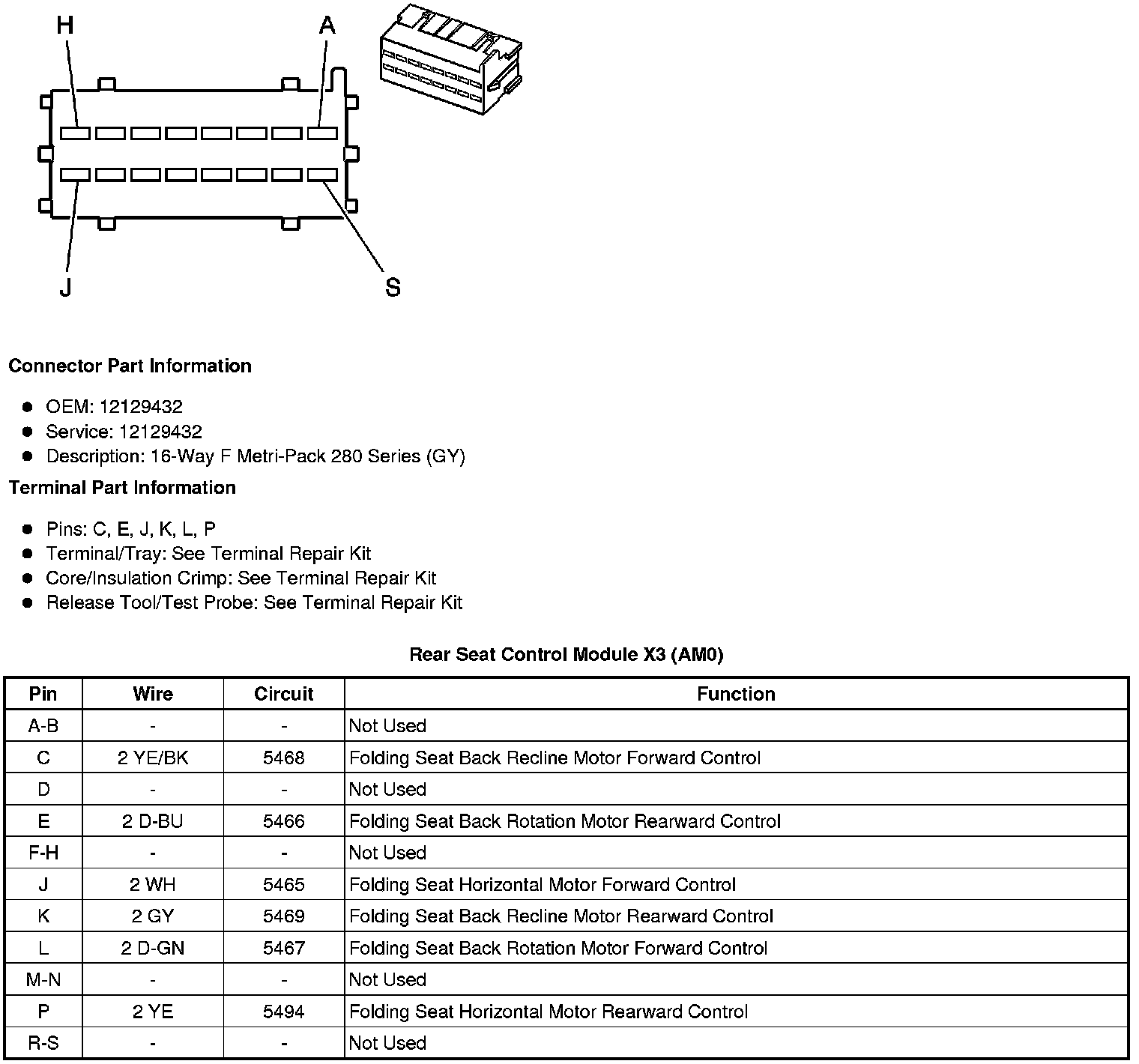

Rear Seat Control Module X3 (AM0)
