Home
>>
Cadillac
>>
2009
>>
Escalade RWD V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Trailer Brake Control Module
Trailer Brake Control Module

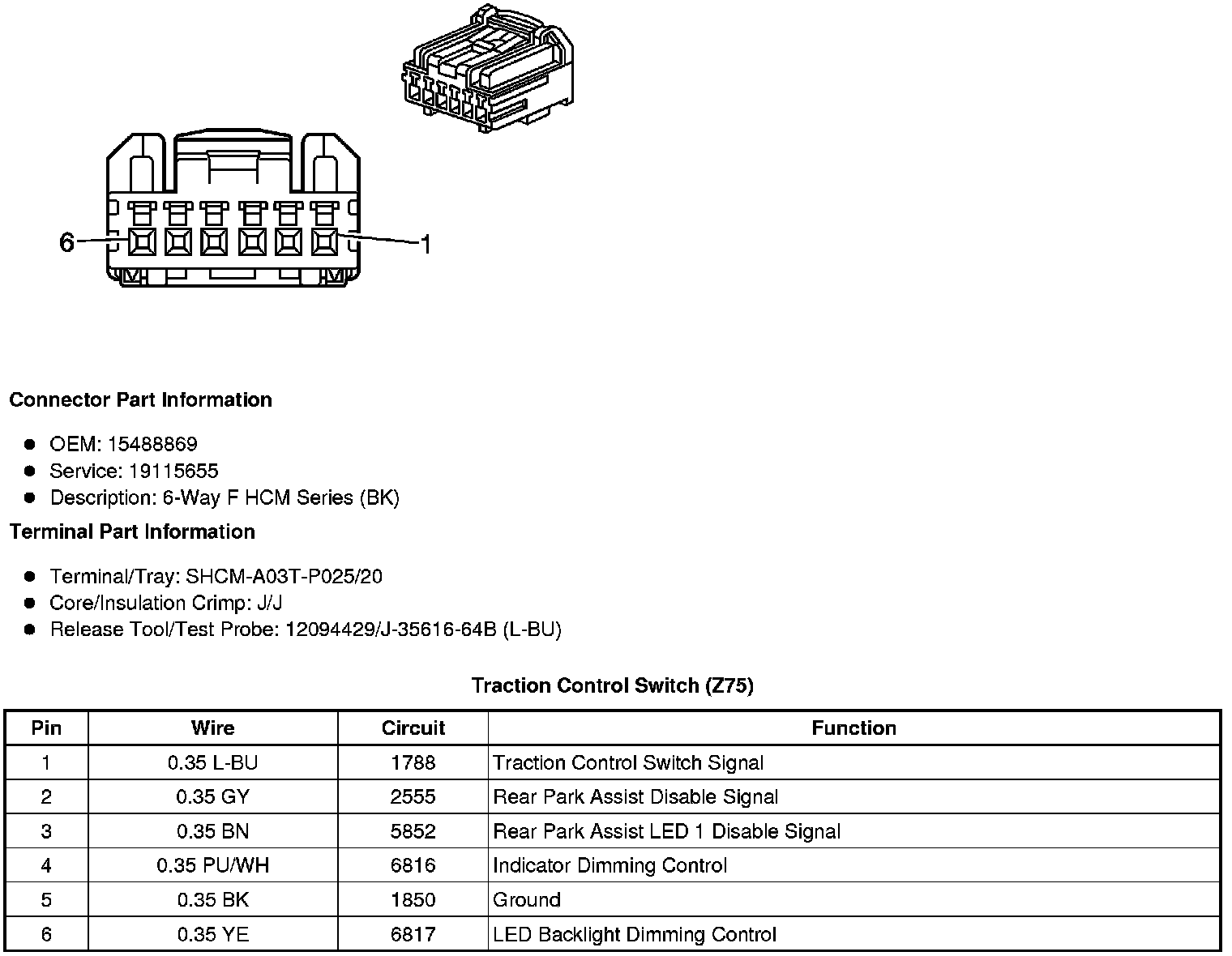

Component Connector End Views
Traction Control Switch (Z75)
