Steering Mounted Controls Assembly




Component Connector End Views

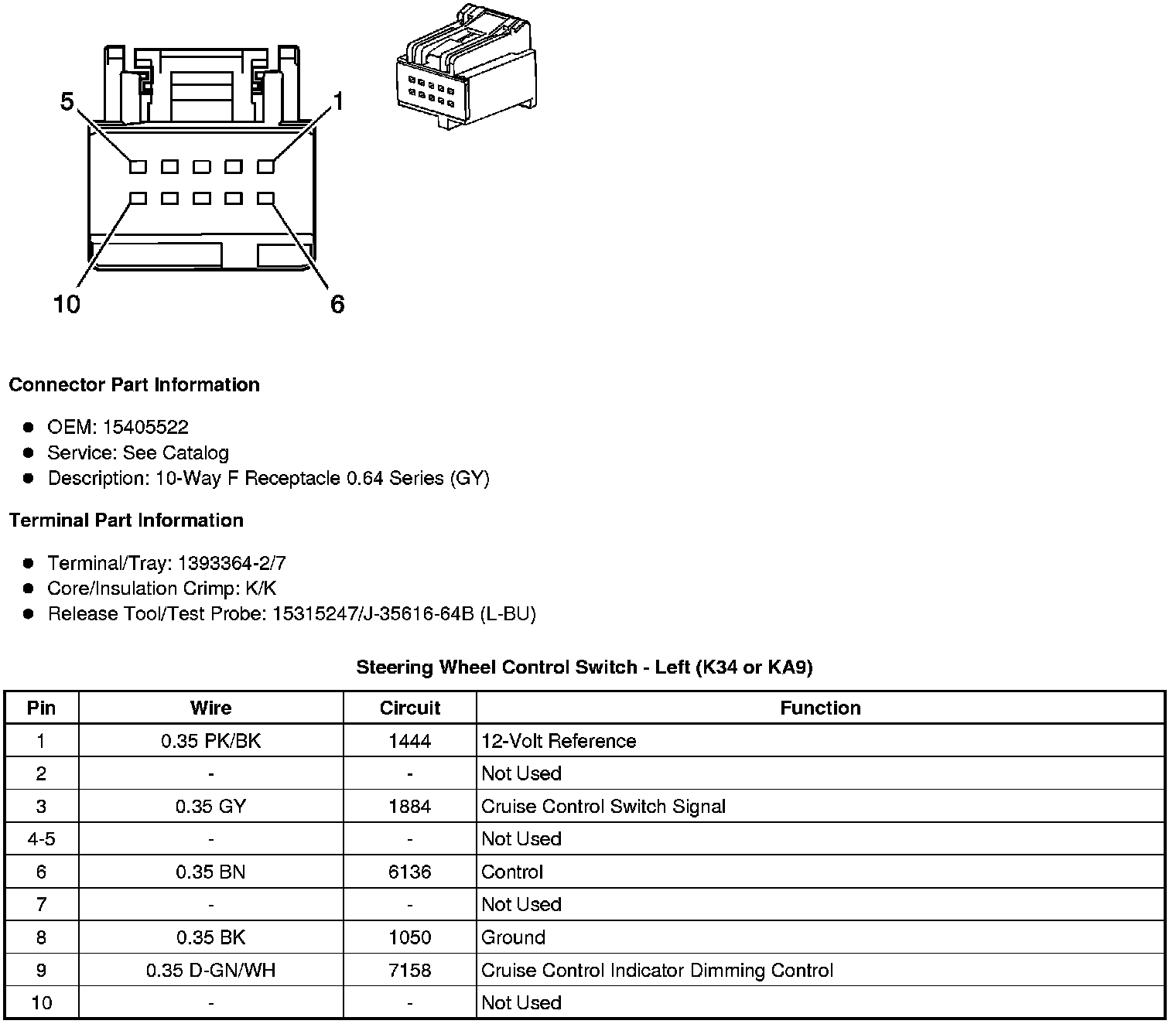

Steering Wheel Control Switch - Left (K34 or KA9)





Steering Wheel Control Switch - Right (UK3)
