Home >> Cadillac >> 2009 >> Escalade RWD V8-6.2L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Shock Sensor, Antitheft

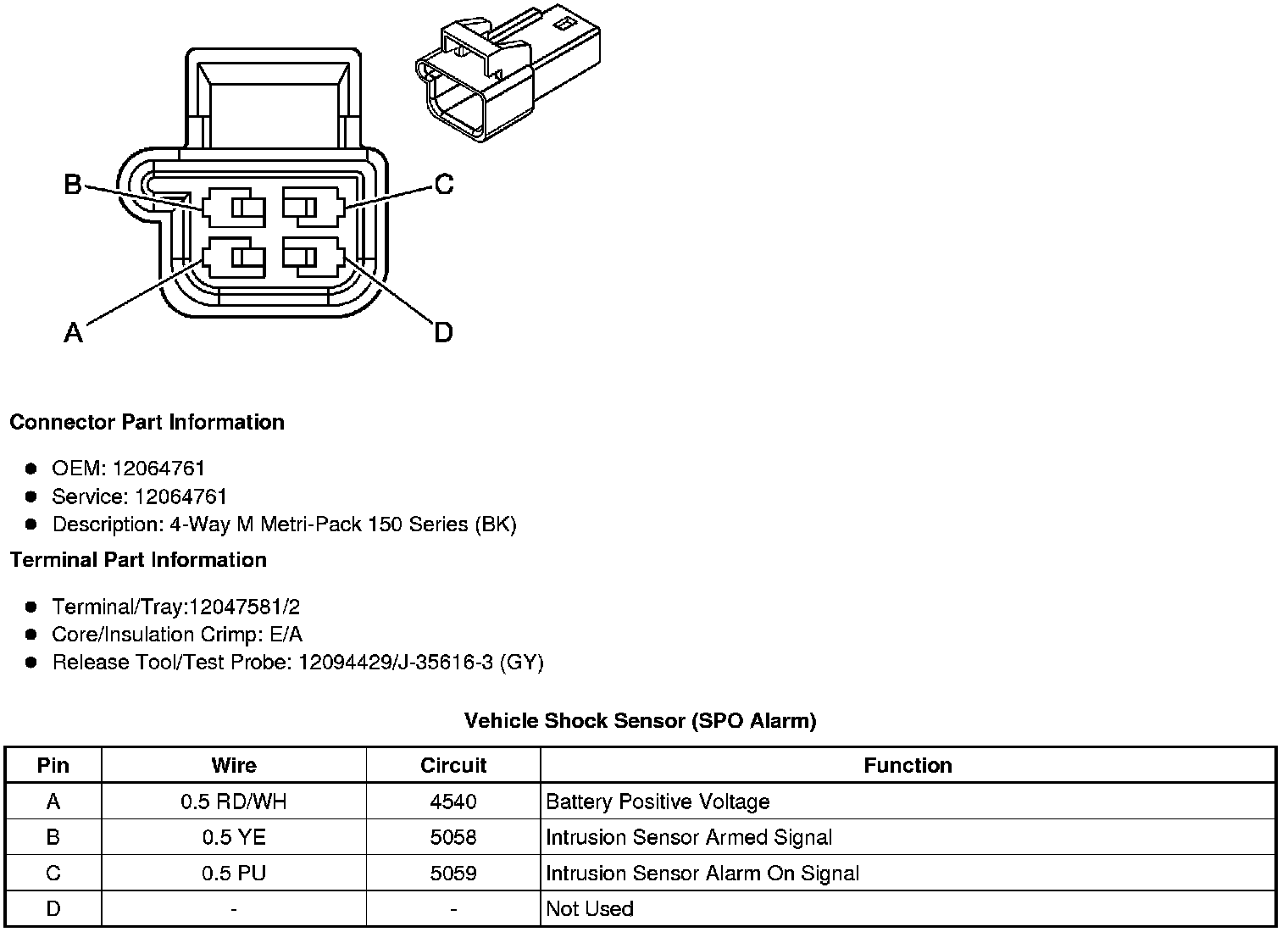

Shock Sensor, Antitheft




Component Connector End Views

Vehicle Shock Sensor (SPO Alarm)
