Cadillac
>>
2009
>>
Escalade RWD V8-6.2L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Entertainment Systems
>>
Entertainment System Control Module
Entertainment System Control Module

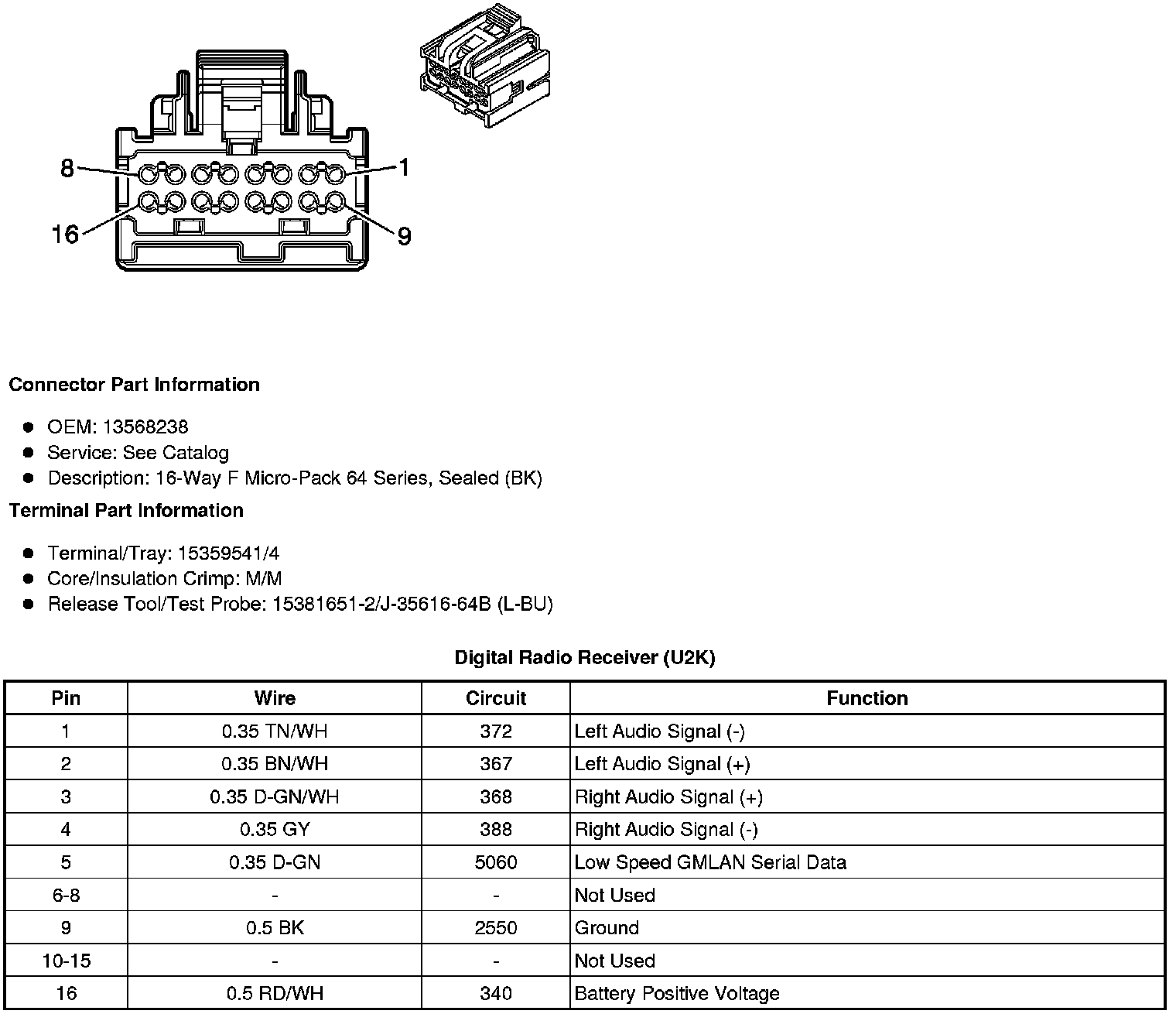

Component Connector End Views
Digital Radio Receiver (U2K)
